THE MINELAB EXPLORER
13
ASSEMBLY
2
Connecting the search coil to the lower shaft
Figure 2.1–2.3
CAUTION DO NOT attempt to disconnect the coil cable
where it enters the search coil itself. They are shipped
pre-assembled and any attempt to disconnect will void
your detector warranty.
To attach the search coil to the lower shaft:
STEP 1 Place the search coil on a flat surface close to the coil
yoke.
STEP 2 (Figure 2.2, following page) Plug the two black plastic
washers into the recesses provided on either side of the
coil yoke.
CONNECTING THE SEARCH COIL
The search coil transmits electromagnetic signals into the ground and receives
the response.
CONNECTING THE SEARCH COIL

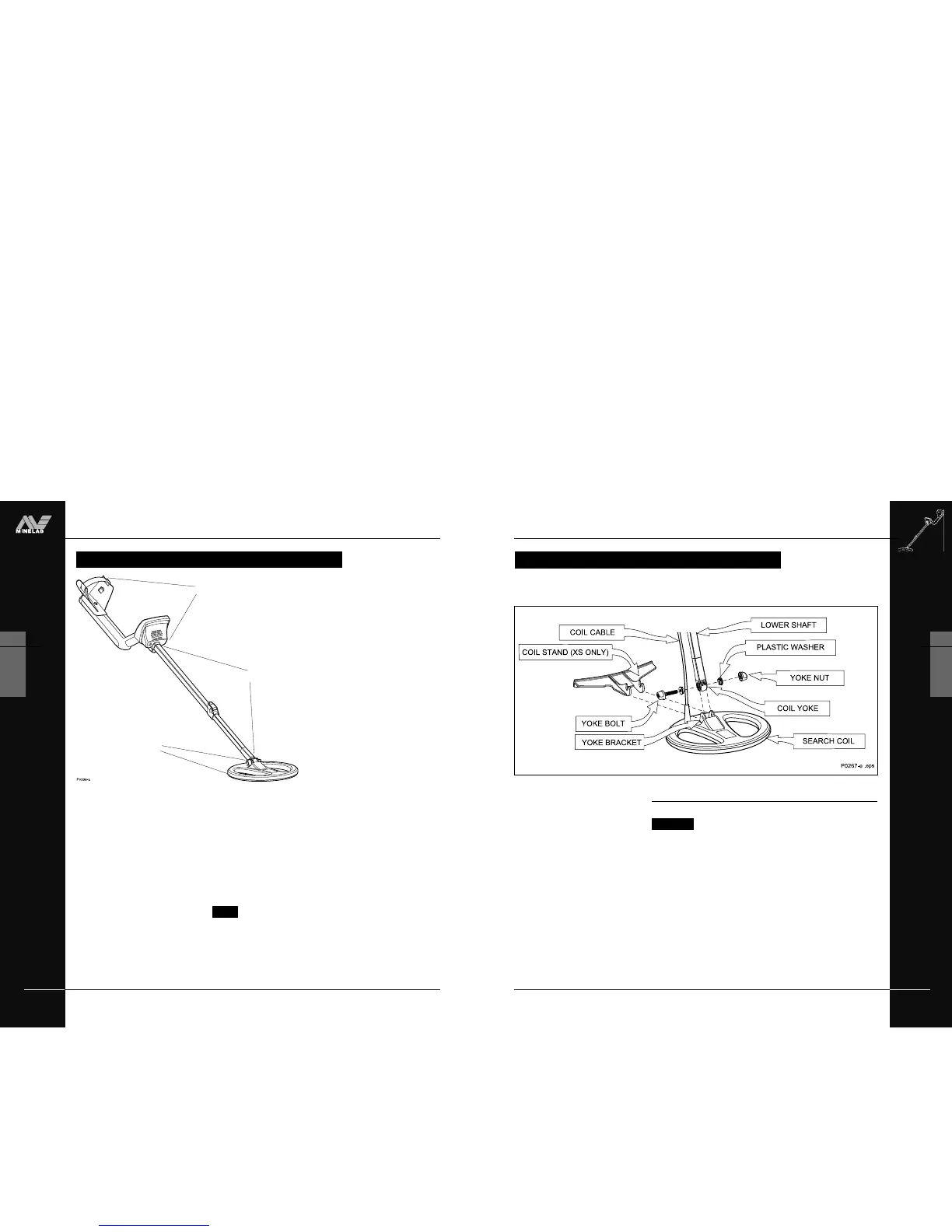

Figure 2.1 Connecting the search coil
to the lower shaft
(Continued next page)
THE MINELAB EXPLORER
12
ASSEMBLY
2
www.minelab.com
ASSEMBLING THE DETECTOR
ASSEMBLING THE DETECTOR
Handle assembly
Shaft assembly
Search coil
Please follow these instructions to assemble the Explorer. Refer to
the drawings to identify parts and how they are positioned. The
detector’s components are organized into three categories:
• the search coil;
• the shaft assembly, made up of the upper shaft and lower
shaft;
• the handle assembly, made up of the handle, armrest and
control box.
NOTE To avoid difficulties or damage to the detector’s
electronic components, it is strongly recommended you
follow the sequence of instructions for assembly.
Please contact your Minelab dealer for further instructions should
any difficulties arise.
