Minelab Manticore User Manual

CONTENTS
64

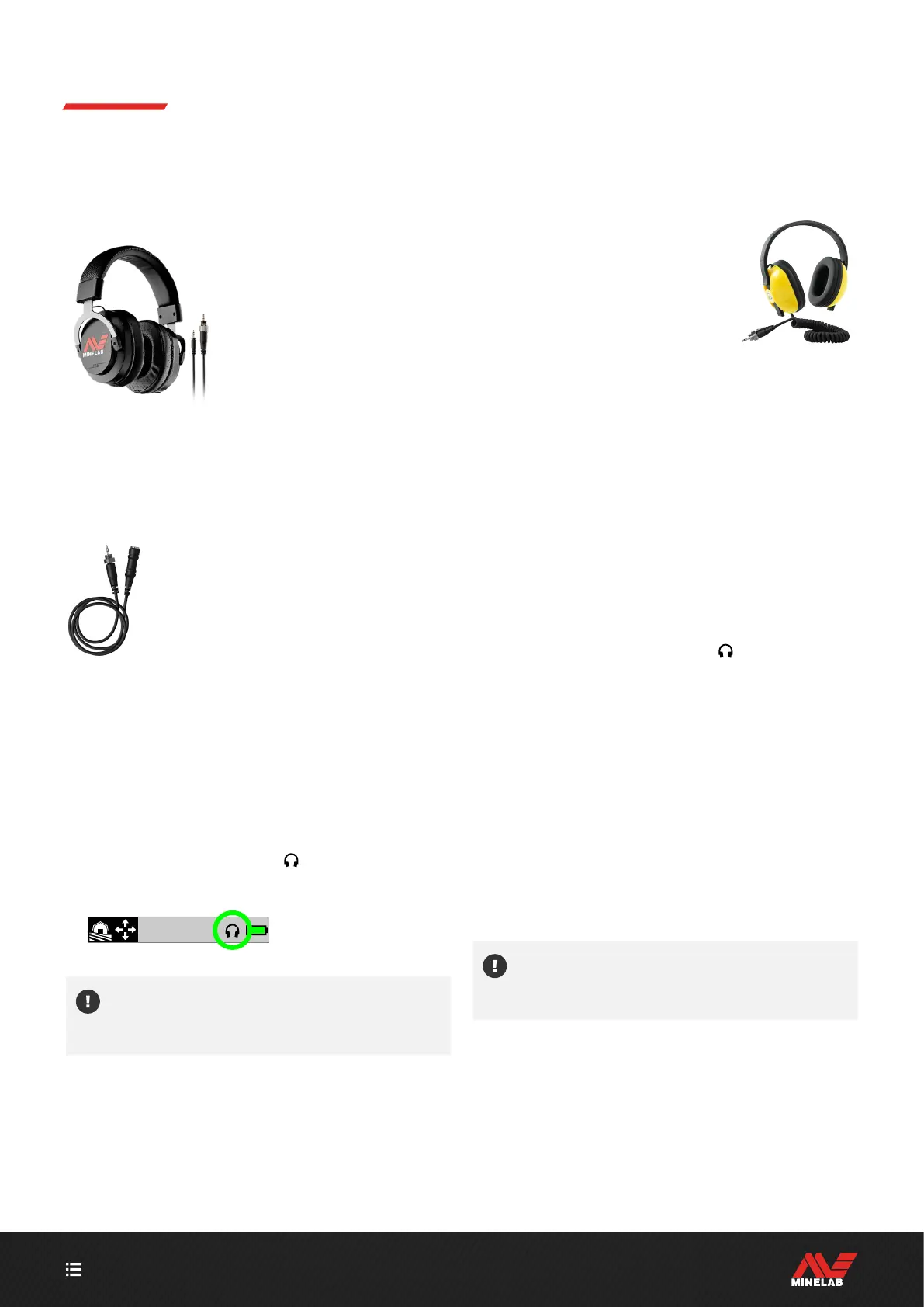

Wired Headphones
The ML 105 wireless headphones are supplied with an
auxiliary cable that allows the headphones to be used as
wired headphones.
Minelab ML 105 Wireless
Headphones with included
auxiliary cable.
Any standard 3.5 mm (⅛-inch) headphones can also
be connected to MANTICORE, however the headphone
connector overmold must be less than 9 mm (0.35") in
diameter, otherwise the connector will not fit inside the
waterproof Headphone Socket.
6.35 mm (⁄-inch) headphones can be used
with MANTICORE via a headphone adaptor,
available as an accessory.
CONNECT WIRED HEADPHONES
1. Unscrew the waterproof dust-cap from the Headphone
Socket on the rear of the Control Pod. If it is tight, it
can be loosened with a small coin.
2. Plug the headphones into the Headphone Socket.
When wired headphones are connected, the
Headphones Connection icon (
) is displayed in the
Status Bar.
When headphones are not in use, make sure that
the waterproof dust-cap on the rear of the Control
Pod is screwed firmly into place.
CONNECT WATERPROOF HEADPHONES
MANTICORE and the Minelab 3.5 mm (⅛-inch) waterproof
headphones can be fully submerged
to a depth of 5 metres (16-ft).
Minelab waterproof headphones
(not included) must be used for
underwater detecting because they
have a unique connector that forms
a waterproof seal when connected to
the MANTICORE Headphone Socket.
1. Unscrew the waterproof dust-cap from the Headphone
Socket on the rear of the Control Pod. If needed, it can
be loosened with a small coin.
2. Make sure that the Headphone Socket and Connector
are dry and free from sand, dust and dirt.
3. Plug the headphones into the Headphone Socket on the
back of the Control Pod.
4. Carefully align the Retaining Ring over the connector
thread and screw them together making sure no
cross-threading occurs.
The Headphones Connection icon (
) will appear in the
Status Bar.
5. Lightly tighten the Retaining Ring.
HEADPHONE SOCKET SUBMERSION
Before detecting underwater without headphones, always
make sure the waterproof dust-cap is securely fitted to the
Headphone Socket.
While the uncovered Headphone Socket is waterproof
and can be submerged without immediately damaging the
internal electronics of the detector, it can cause corrosion
of the socket and false headphone detection.
Whenever the Headphone Socket has been
submerged, follow all advice listed in "Headphone
Socket Maintenance" (page 73).
