111
LCD PC E
LCD PC E
-
-
8590 MAINTENANCE
8590 MAINTENANCE
2.2.3 I/O Board
Disassembly
1. Remove the CPU cover; housing shielding; heatsink. (See the step 1 to 4 of section 2.2.2 disassembly)
2. Remove three screws fastening the I/O board. (Figure 2-7)
3. Disconnect the Modem card’s wire () and fan’s power cord of the I/O board () . (Figure 2-8)

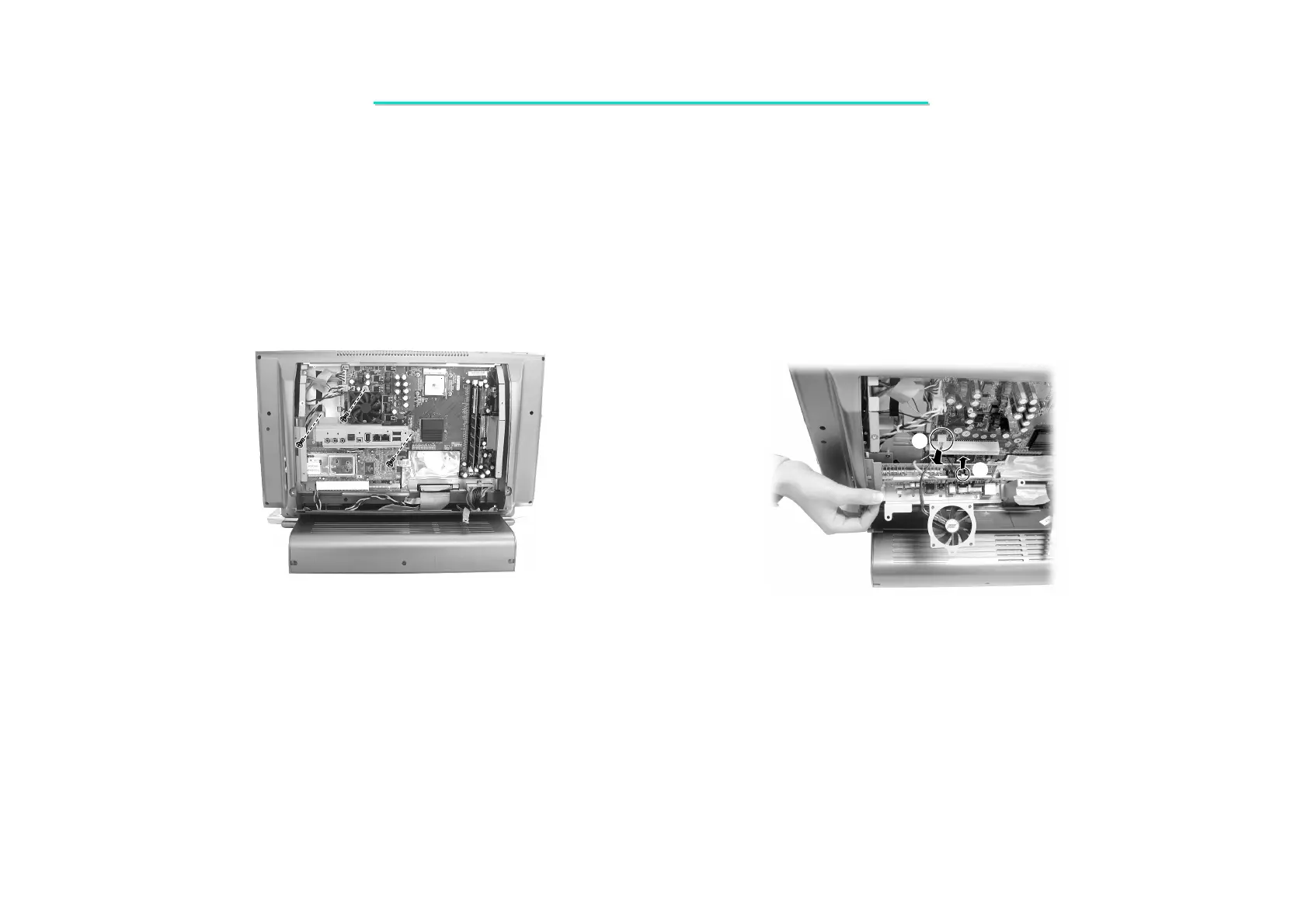

Figure 2-7 Remove three screws Figure 2-8 Free the I/O board


