7Appendix
Configuration flag Appendix-609
(3) NONFLIP/FLIP (6-axis type robot only.)
This means in which side the J6 axis is in comparison with the plane through both the J4 and the J5 axis.

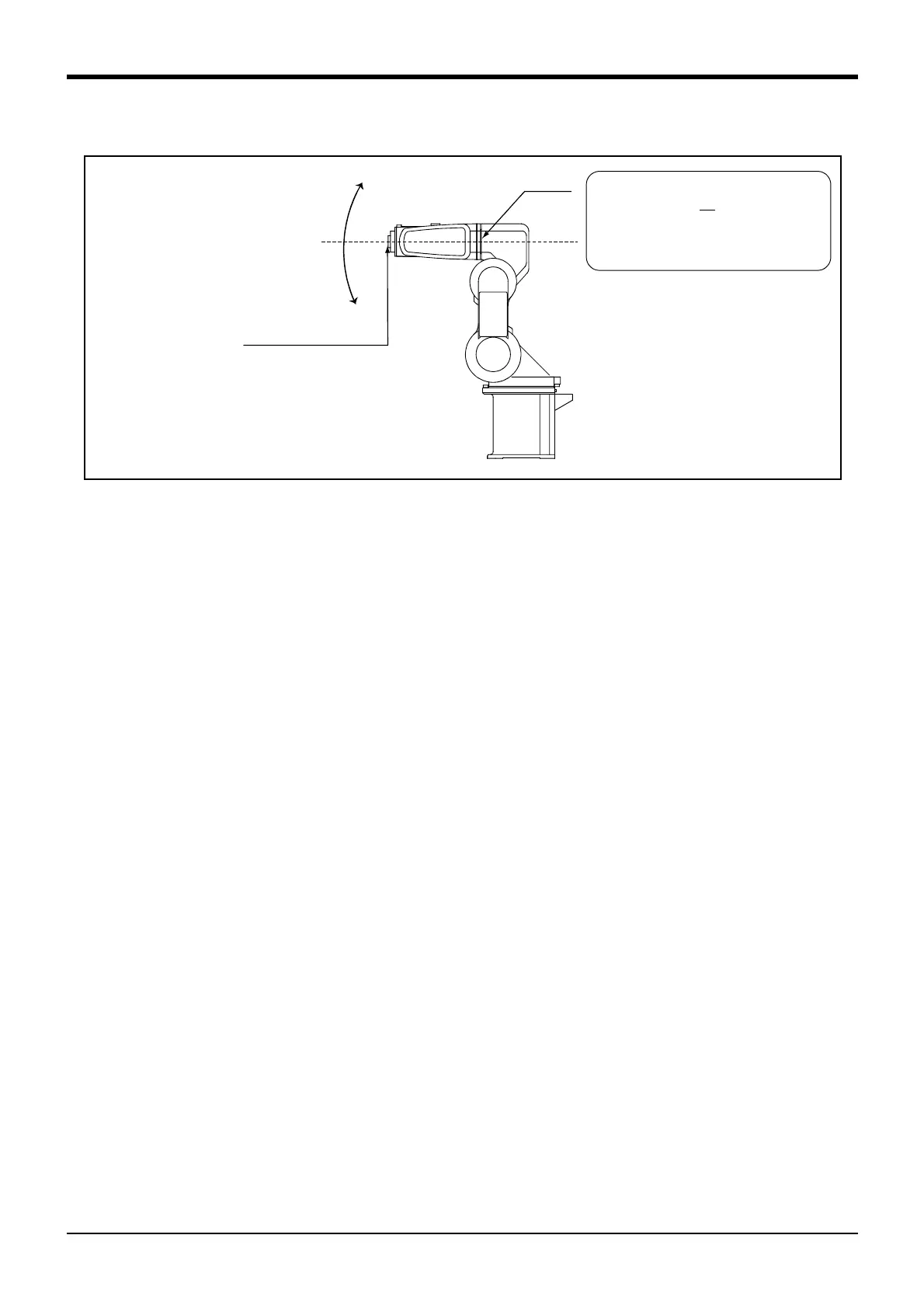

Fig.7-3 ： Configuration flag (NONFLIP/FLIP)
FLIP
NON FILIP
J4 axis
J6 axis flange surface
FL1(Flag1)
&B 0 0 0 0 0 0 0 0
↑
1/0 = NONFLIP/FLIP
Note) "&B" is shows the binary
* The illustration is an example.
