7Appendix
Spline interpolation Appendix-639

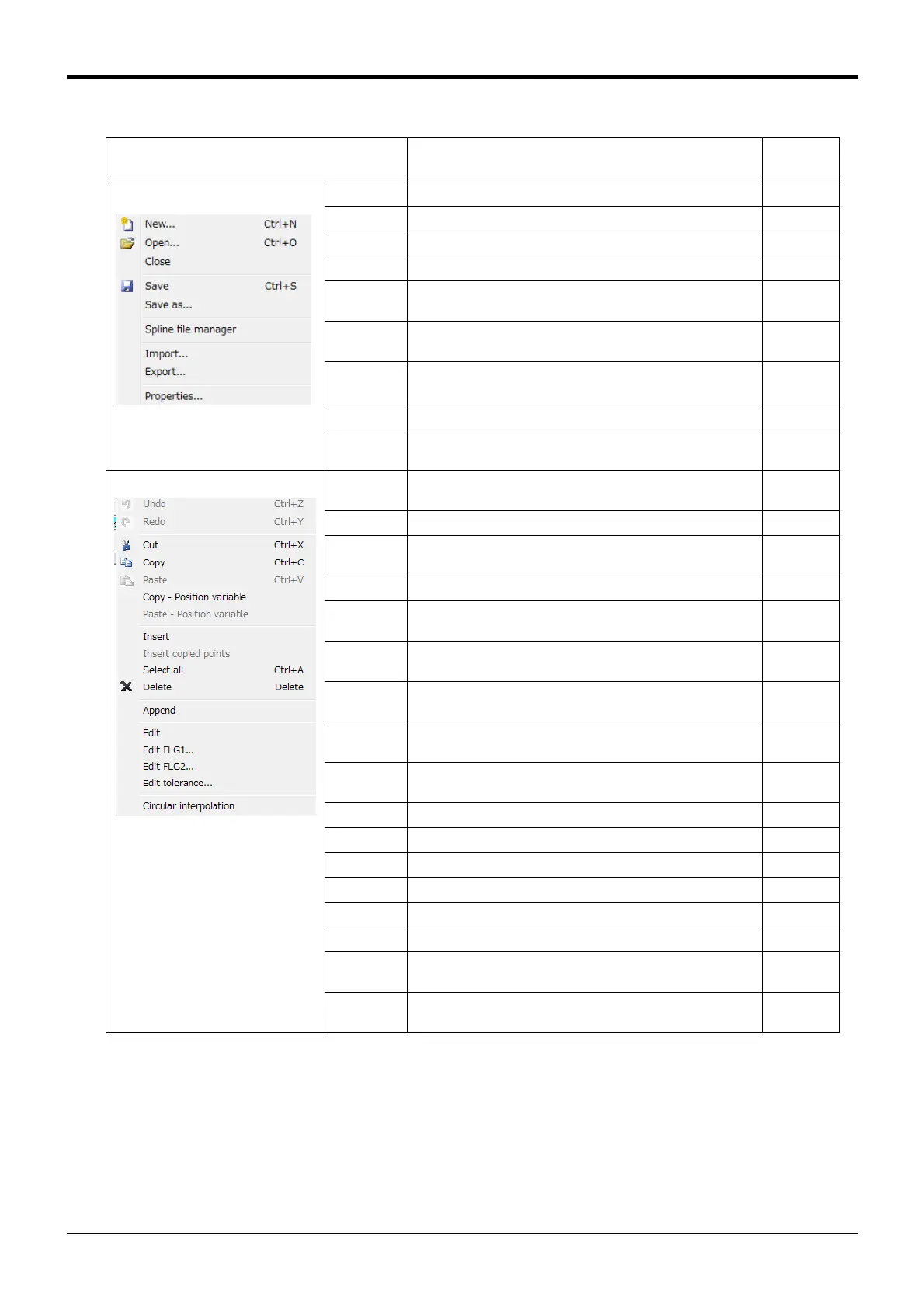

Table 7-11:Details of added menus
Menu item Explanation
Reference
page
File New An edit screen for creating a new spline file opens. 627
Open A dedicated screen for opening the spline file opens. 635
Close The active Spline File Edit screen closes. -
Save The spline file being edited is overwritten and saved. 649
Save as A dedicated screen for saving spline file being edited with a dif-
ferent name opens.
648
Spline file
manager
The Spline file manager screen opens. 651
Import
The path point data is imported from a CSV/MXV
Note1)
format
file.
659
Export The path point data is exported to a CSV format file. 662
Properties The spline file Property screen opens for referring to and enter-
ing comments and changing file version.
647
Edit Undo The editing details applied on the path point data last are
undone and the original details are restored.
664
Redo The details canceled with [Undo] are applied again. 664
Cut The selected path point data is saved as cut data. The original
path point data is cut out when [Paste] is executed.
662
Copy The selected path point data is saved as copy data. 662
Paste The path point data saved with [Cut] or [Copy] is pasted into the
designated path point data.
662
Copy - Posi-
tion variable
The selected position data is saved to be copied. 663
Paste - Posi-
tion variable
The saved position data is pasted into the designated path
point data.
663
Insert New path point data is inserted in front of the selected path
point data.
641
Insert cop-
ied points
The path point data saved with [Copy] is inserted in front of the
designated path point data.
663
Select all All path point data is selected. -
Delete The selected path point data is deleted. 644
Append New path point data is added to the end of the path point data. 641
Edit Editing of the selected path point data is enabled. 643
Edit FLG1 Edits the FLG1 value of selected path point at one time. 644
Edit FLG2 Edits the FLG2 value of selected path point at one time. 645
Edit toler-
ance
Edits the tolerance of selected path point at one time. 645
Circular
interpolation
Switches the arc designation of the selected path point
between enabled and disabled.
645
