Dimensions Annex
A - 12

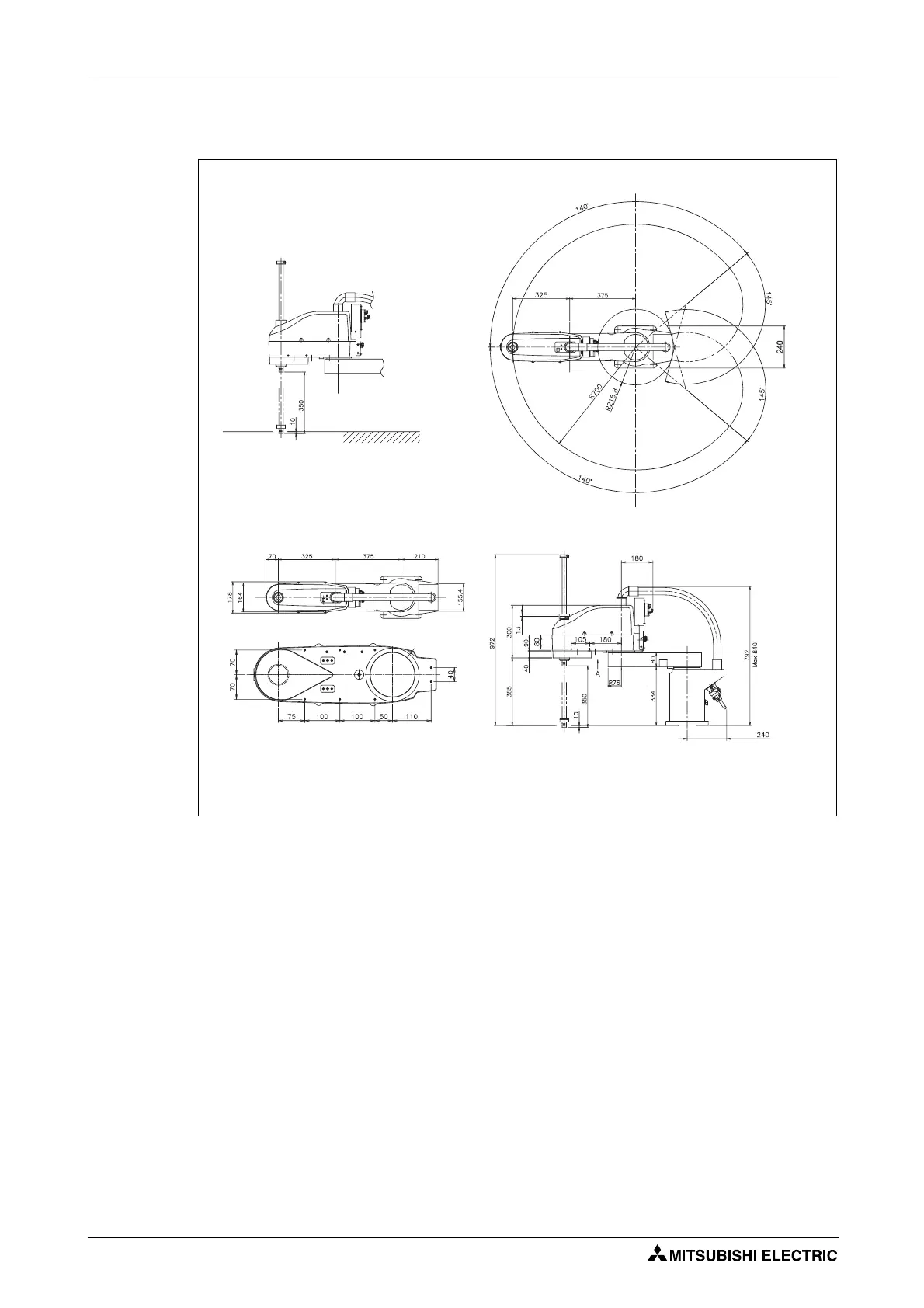

The following figure shows the external dimensions and the range of motion of robot arms
RH-12SDH7035 and RH-12SQH7035.
R001415E
Fig. A-12:
External dimensions and range of motion of robot arms RH-12SDH7035
and
RH-12SQH7035
All dimensions in mm
Limits of
range of motion
View A
Installation
surface
Weight: 43 kg
