(14)A-PLC compatibility setting
When "A-PLC Compatibility Setting" is enabled in the PLC System tab of the PLC Parameter dialog box, the
processing time listed in the following table is required.
(15)High-speed interrupt function

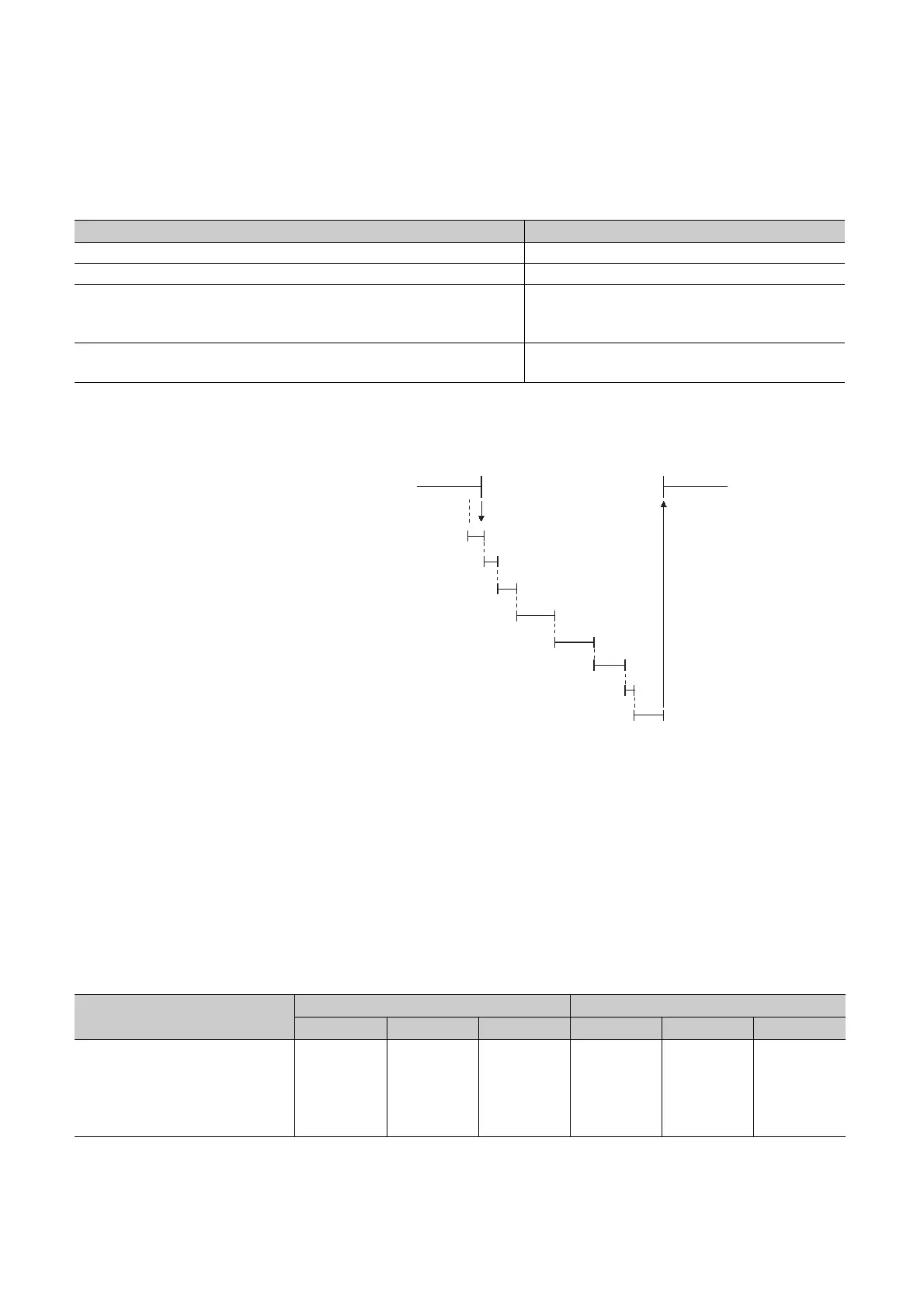

The high-speed interrupt function performs the following operations.
The processing time of each operation is as follows.
(a) Waiting time
For the waiting time before a high-speed interrupt starts, refer to Page 228, Section 3.21.3 (1).
(b) High-speed interrupt start
For the overhead time at the startup of a high-speed interrupt, refer to Page 471, Appendix 3.2 (3) (a).
(c) Input (X)
The processing time listed in the following table is required.
Processing time = (KM1 × total number of X points) + (KM2 × number of setting points) + KM3 [µs]
CPU module Processing time
Q00UJCPU, Q00UCPU, Q01UCPU 95µs
Q02UCPU 90µs
Q03UD(E)CPU, Q04UD(E)HCPU, Q06UD(E)HCPU, Q10UD(E)HCPU,
Q13UD(E)HCPU, Q20UD(E)HCPU, Q26UD(E)HCPU, Q50UDEHCPU,
Q100UDEHCPU
34µs
Q03UDVCPU, Q04UDVCPU, Q04UDPVCPU, Q06UDVCPU, Q06UDPVCPU,
Q13UDVCPU, Q13UDPVCPU, Q26UDVCPU, Q26UDPVCPU
13µs
CPU module
Main base unit Extension base unit
KM1 KM2 KM3 KM1 KM2 KM3
Q03UDVCPU, Q04UDVCPU,
Q04UDPVCPU, Q06UDVCPU,
Q06UDPVCPU, Q13UDVCPU,
Q13UDPVCPU, Q26UDVCPU,
Q26UDPVCPU
0.09 0.20 4.50 0.14 0.20 6.00
Main routine program
Waiting time
High-speed interrupt start
Input (X)
Buffer memory read
High-speed interrupt program execution
Buffer memory write
Output (Y)
High-speed interrupt end
