541

APPENDICES

Appendix 5 Replacing Basic Model QCPU or Qn(H)CPU with QnUCPU

Appendix 5.4 Functions

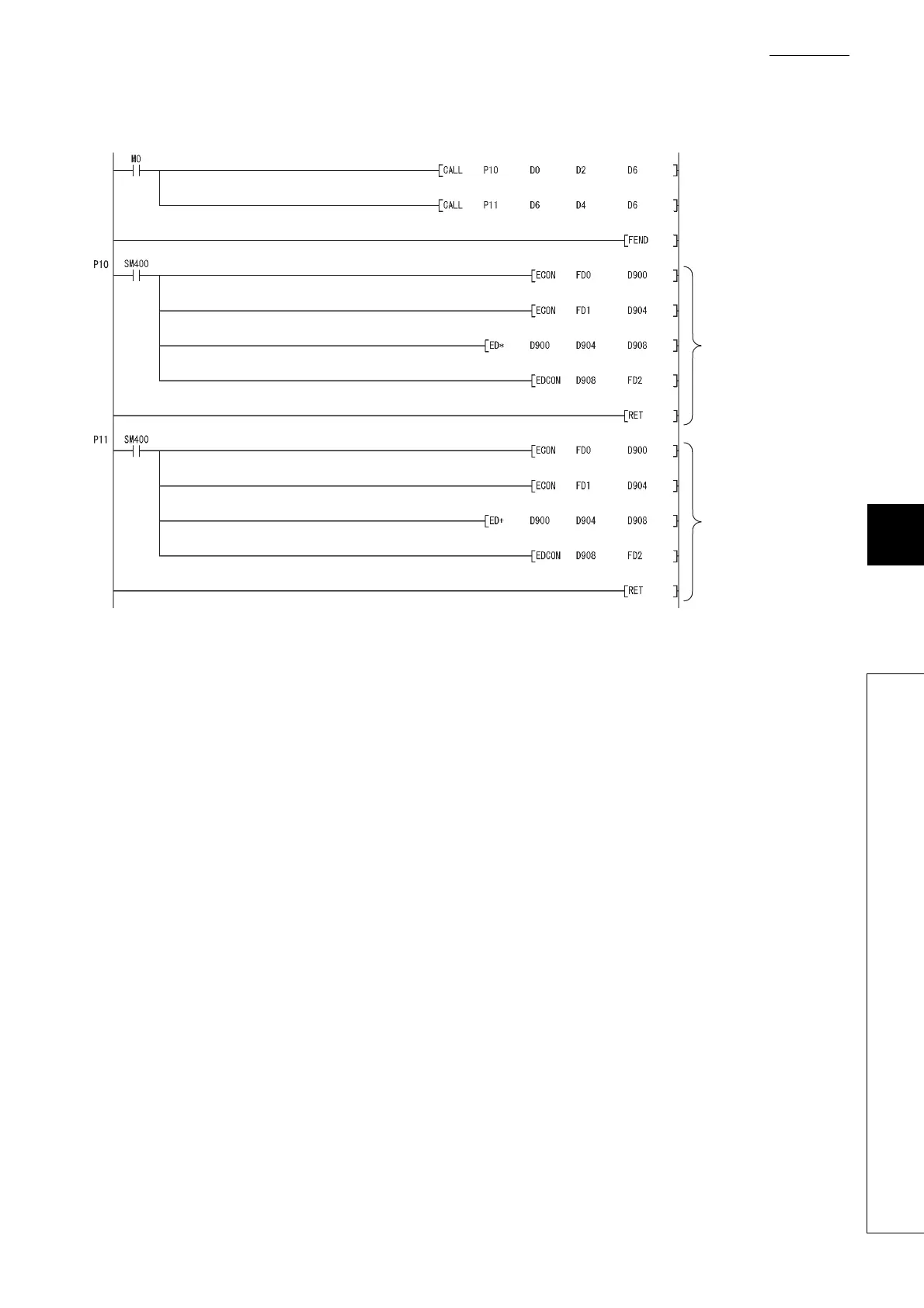

• Program after replacement

A subroutine program for

multiplication using the

double-precision

floating-point operation

instruction

A subroutine program for

addition using the

double-precision

floating-point operation

instruction
