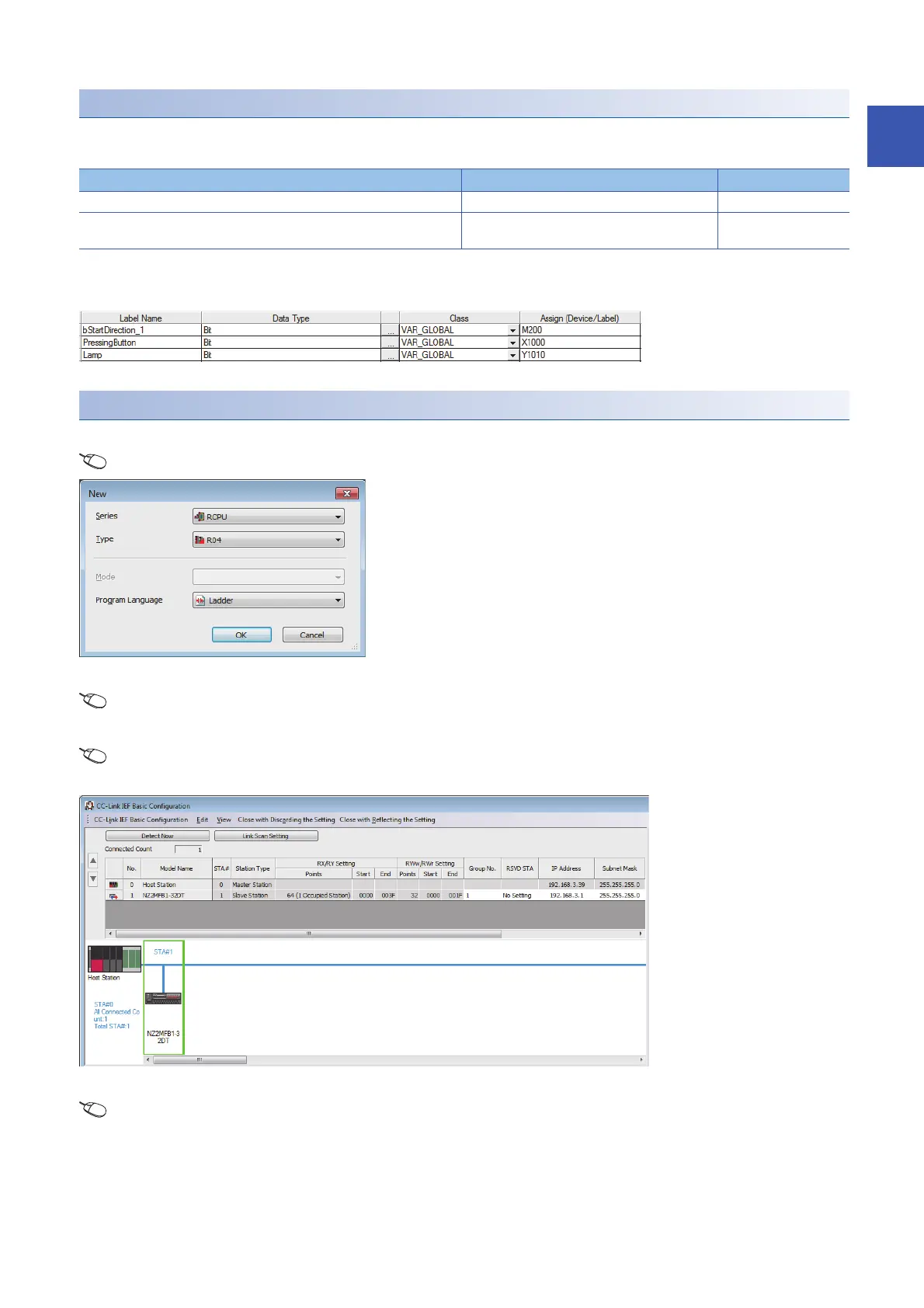

9 PROGRAMMING
9.2 Program Example
97
9
Label to be used
■Module label
Use the following module labels.
■Label to be defined
Define the global labels as follows.
Setting procedure
1. Create a project with the contents below.
[Project] [New...]
2. Set whether or not to use CC-Link IE Field Network Basic.
[Navigation window] [Parameter] [CPU module model name] [Module Parameter] [Basic Settings]
3. Display the network configuration setting window and configure the setting as follows.
[Navigation window] [Parameter] [CPU module model name] [Module Parameter] [Basic Settings] [Network
Configuration Settings]
4. Close the network configuration setting window.
[Network Configuration Settings] [Close with Reflecting the Setting]
Module label Description Device
RCPU.stSM.bSts_CyclicTransmission Cyclic transmission status SM1536
RCPU.stSD.bnSts_CyclicTransmission_Station[1] Cyclic transmission status of each station (station
number 1)
SD1536.0
To Next Page
