CHAPTER8 PARAMETERS
1
2
3
4
5
6
7
8
8.2 Redundant Parameters
(2) Tracking settings
Parameters required for the tracking function in a redundant system are set.

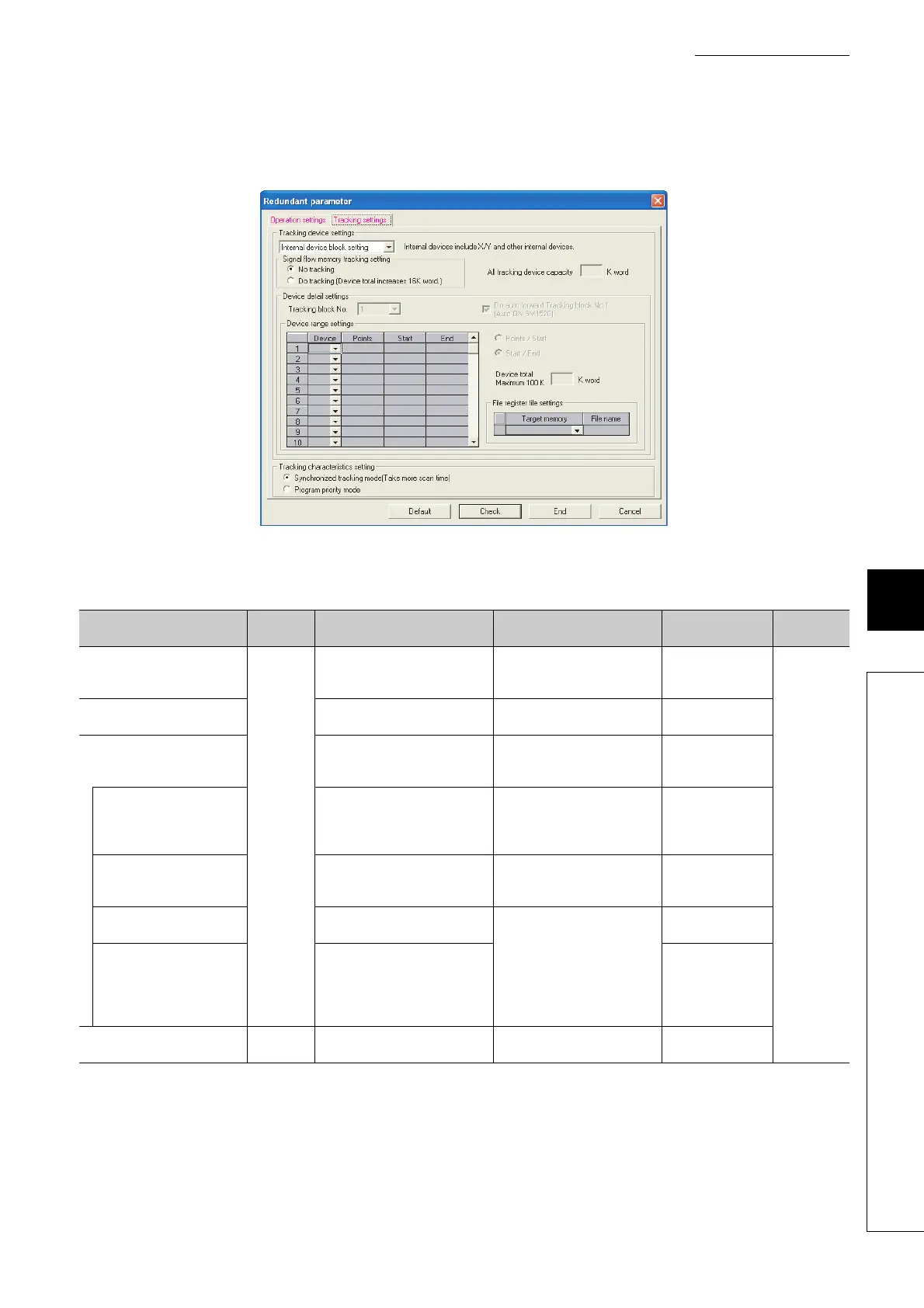

Figure 8.25 Tracking settings
Table8.26 Tracking setting list
Item
Parameter
No.
Description Setting range Default Reference
Tracking device settings
D003
H
Select whether to set the range for
tracking device data to be
transferred.
Internal device block setting/
Device detail settings
Internal device block
setting
QnPRHCPU
User's
Manual
(Redundant
System)
Signal flow memory tracking
setting
Select whether to track the signal
flow memory.
No tracking/Do tracking No tracking
Device detail settings
Set details when the tracking
device to be transferred is set by
user.
--
Tracking block No.
Select the block number of the
tracking device to be transferred.
Then, set details in the Device
range settings.
1 to 64 1
Do auto forward Tracking
block No.1
(Auto ON SM1520)
Select whether to automatically
transfer the device data set to the
tracking block No. 1.
Selected/deselected Deselected
Device range settings
Set the device to be tracked and
its range.
Refer to the QnPRHCPU User's
Manual
-
File register file settings
When the file register is set in the
Device range settings, select the
memory where the target file
register is stored and enter the file
name.
-
Tracking characteristics setting D002
H
Select the operation mode of
tracking.
Synchronized tracking mode/
Program priority mode
Synchronized
tracking mode
