(3) Scan time structure of the Redundant CPU
*1: When the CPU modules are switched from backup mode to separate mode, the CPU module in the standby system (the
RUN LED turns on) cannot execute any program.
*2: End of a program indicates the timing when the END, GOEND, FEND, or STOP instruction is executed.

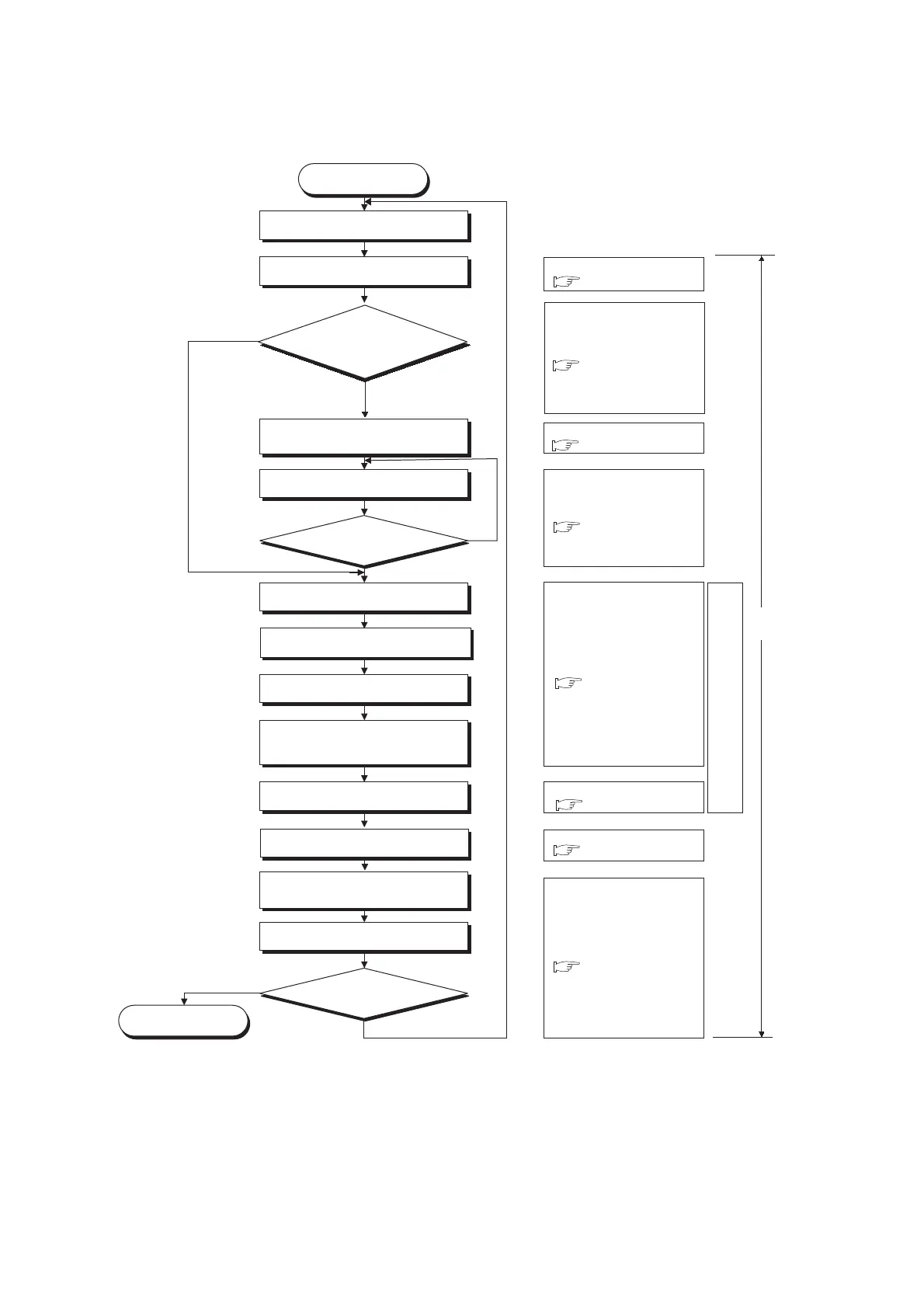

Figure 10.3 Scan time structure of the Redundant CPU
STOP/PAUSE status
STOP/PAUSE processing
Calendar update, program memory
check processing, error clear
NO
YES
Operating status check
RUN status
Common processing time
Instruction execution time
( )
( )
( )
( )
( )
( )
( )
( )
Processing in the
RUN status
Program check
I/O refresh
Backup mode/
standby system
Operation mode and
system identification
Backup mode/controlsystem
Separate mode/controlsystem
Separate mode/standby system*1
Execution of the DUTY instruction in END
processing (no execution when the DUTY
instruction is not used)
Program execution
End the program?
*2
Refresh via MELSECNET/H
Refresh via CC-Link IE Controller Network
Refresh via CC-Link
Refresh by the intelligent function module
parameters set in GX Configurator
Service processing
Processing during the constant scan
waiting time (no processing when the
constant scan time is not set)
WDT reset, scan time calculation
I/O refresh time
Tracking time
Instruction execution time in END processing
Module refresh time
Function execution time in END processing
Service processing time
Common
END
processing
time
Scan
time
Section 10.1.2(1)
Section 10.1.2(2)
Section 10.1.2(3)Section 10.1.2(3)
Section 10.1.2(4)
Section 10.1.2(5)
Section 10.1.2(6)
Section 10.1.2(7)
Section 10.1.2(9)
