Mitsubishi AL2 Series User Manual

α2 Simple Application Controllers
Function Blocks 6
6 - 53

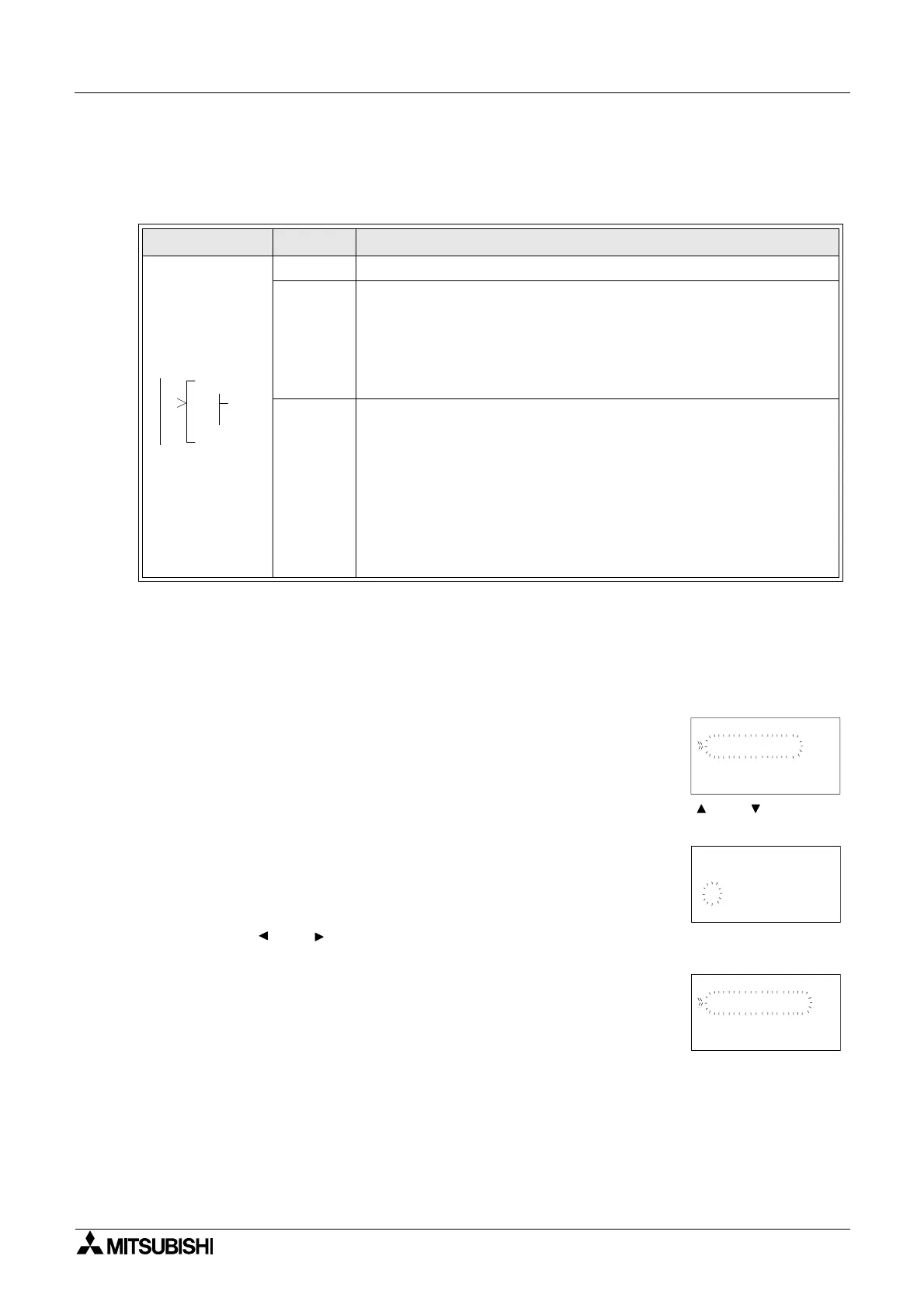

6.24 Multiplication Block
The function block is used to multiply inputs A and B hence produce the resultant Y.
Table 6.24: Multiplication Function Block
Setup of the Multiplication Function Block directly from the
α2 Series Controller
1 ) Allocate the input pin to be used for the function block.
2 ) Press the “OK” key with the cursor in the function block. The function block edit screen is
displayed as shown.
3 ) Press the “OK” Key and enter the function block settings using the “ and ” keys. The
Multiplication operation y=A∗B must be specified.
4 ) Using the “ and ” keys highlight Constant A and press the “OK” key to enter either a
Directset, Analog In or FB Value.
5 ) Repeat step 4 for Constant B and return to the FBd using the “ESC” key.
Function Set Item Description
I Input pin for multiplication function block
FB
This function block operates the expression Y=A∗B.
The value of Y,A and B is in the range: -32768 to 32767
a) A,B
- Constant value (Setting range:-32768 to 32767
- Analog value
- FB value
Output
1) Word Output
When the input pin is ON, Y=A∗B is executed and the word output
will be given the result. When the input pin is OFF the expression is
not executed and the Y value will retain the last result.
2) Bit Output
- Operation result Y<32768: Output pin turned ON and the operation
result Y will be set to -32767
- Operation result Y>32767: Output pin turned ON and the operation
result Y will be set to 32767
000
UM
OI
L
P
B001 :M
Change No
De l e t e FB
LU
Se t up FB
Ou t p u t aVl
y=A
∗ B
0
B001 :M LU
Di rectSet
Ana l og I n
FB Va l ue
B001 :M LU
