Mitsubishi AL2 Series User Manual

α2 Simple Application Controllers
Function Blocks 6
6 - 13

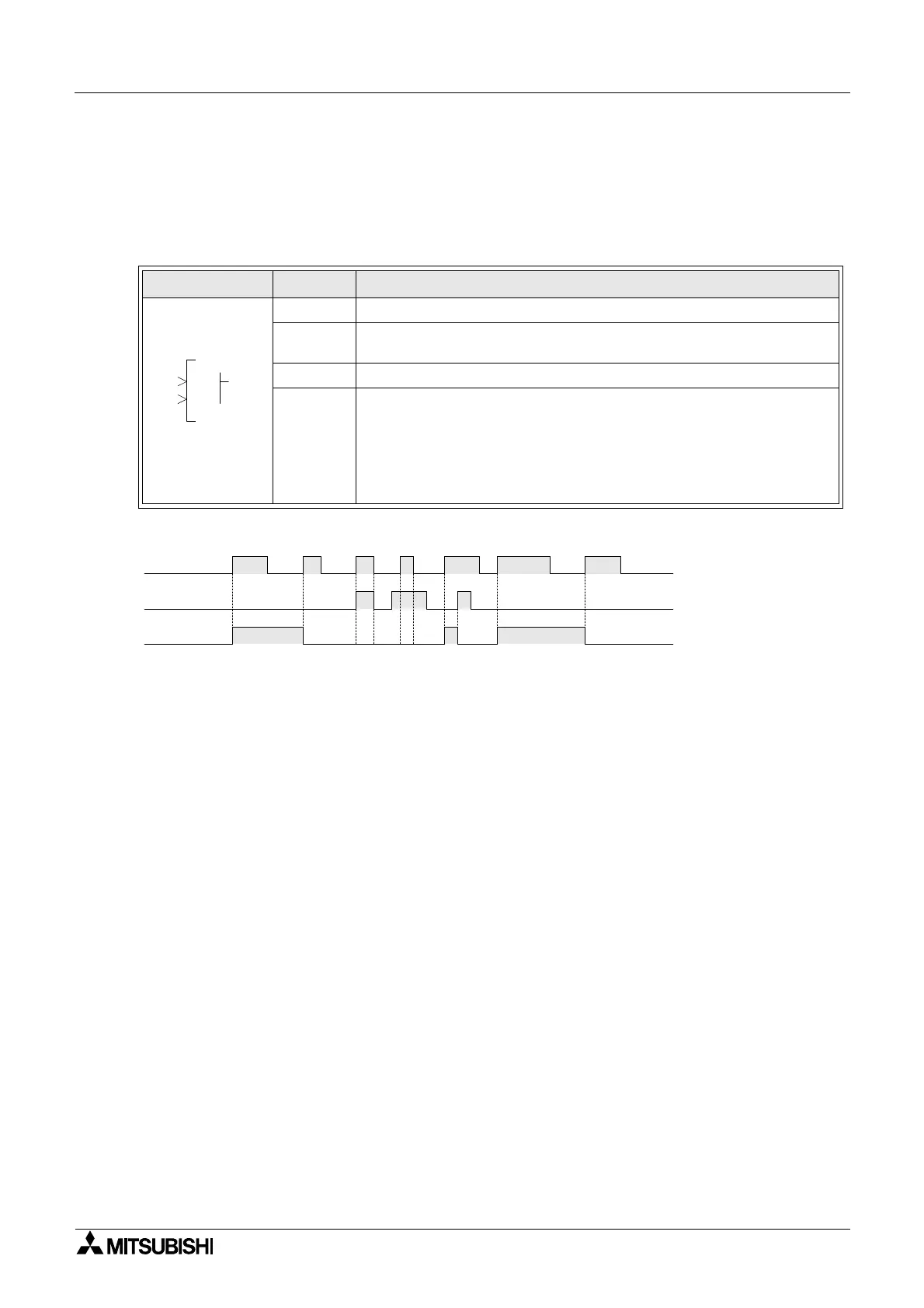

6.6 Alternate Block
The function block inflicts a reversal of the ON and OFF state of the output as and when the
input is given to the input pin.
Table 6.6: Alternate Function Block
1 ) Alternate Operation
Function Set Item Description
I Input pin for alternation operation
C
Clear input pin resets the state of the output regardless of the input
given.
FB N/A
Output
The output is affected in the following operation:
1) Reverse the ON/OFF state of the output whenever the input
signal’s ON/OFF operation to the input pin is turned ON (ON to OFF
or OFF to ON)
2) The clear selection resets the output regardless of the input given.
000
LA
OI
C
Input pin I
Input pin C
Output
ON OFF
ON
OFF
ON OFF

Mitsubishi AL2 Series Specifications

General

Model	AL2 Series
Digital Inputs	Yes
Digital Outputs	Yes
Type	PLC
Manufacturer	Mitsubishi
Input Voltage	100 to 240 VAC or 24 VDC (depending on model)
Output Voltage	24V DC
Number of Inputs	8 to 64 (depending on model)
Number of Outputs	6 to 64 (depending on model)
Programming Language	Ladder Diagram
Communication Ports	RS-232, RS-485, Ethernet (depending on model)
Operating Temperature	0 to +55°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Weight	Varies depending on the model
