2.2 Programming Methods
2.2.1 Direct Programming
Direct Programming uses the keys on the front panel to create the program and enter any
required data values. The method for Direct Programming is explained in this manual
beginning at Chapter 4.
2.2.2 AL-PCS/WIN-E Programming Software Ver 2.00
This windows based software allows the user to drag and drop the desired Function Block
icons onto the FBD base and construct a program. The program is downloaded to the
α2
controller via the AL-232CAB cable. The visual on-screen connections make the software
easy to grasp for beginners and experienced users alike. The AL-PCS/WIN-E Programming
Software is fully explained in the
α Software Manual.

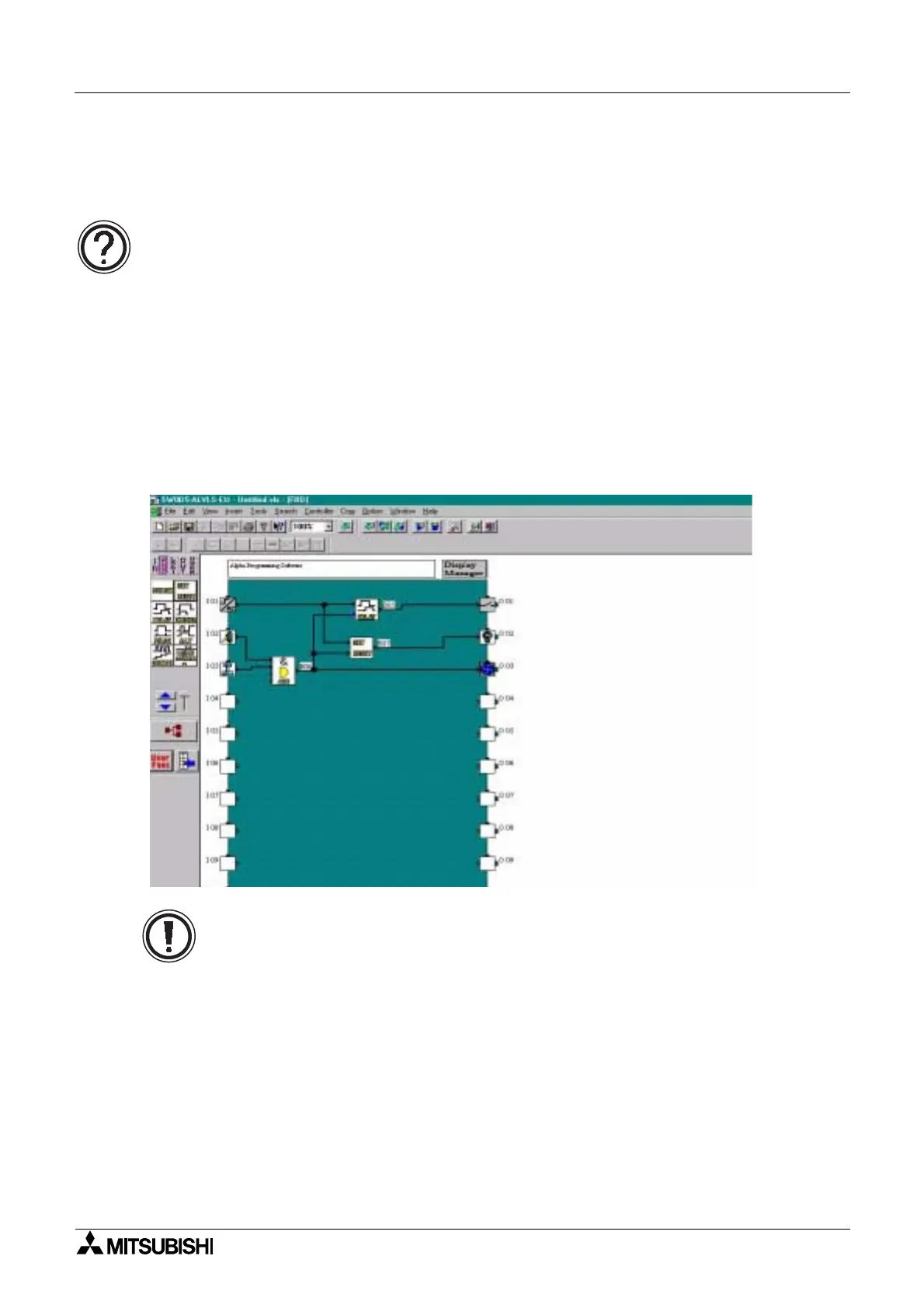

Figure 2.1: AL-PCS/WIN-E Programming Software Ver 2.00
Note: Do not simultaneously program the
α2 Series Controller from the direct
programming keys and AL-PCS/WIN-E Ver 2.00 methods as this may cause harm.

Mitsubishi AL2 Series Specifications

General

Model	AL2 Series
Digital Inputs	Yes
Digital Outputs	Yes
Type	PLC
Manufacturer	Mitsubishi
Input Voltage	100 to 240 VAC or 24 VDC (depending on model)
Output Voltage	24V DC
Number of Inputs	8 to 64 (depending on model)
Number of Outputs	6 to 64 (depending on model)
Programming Language	Ladder Diagram
Communication Ports	RS-232, RS-485, Ethernet (depending on model)
Operating Temperature	0 to +55°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Weight	Varies depending on the model
