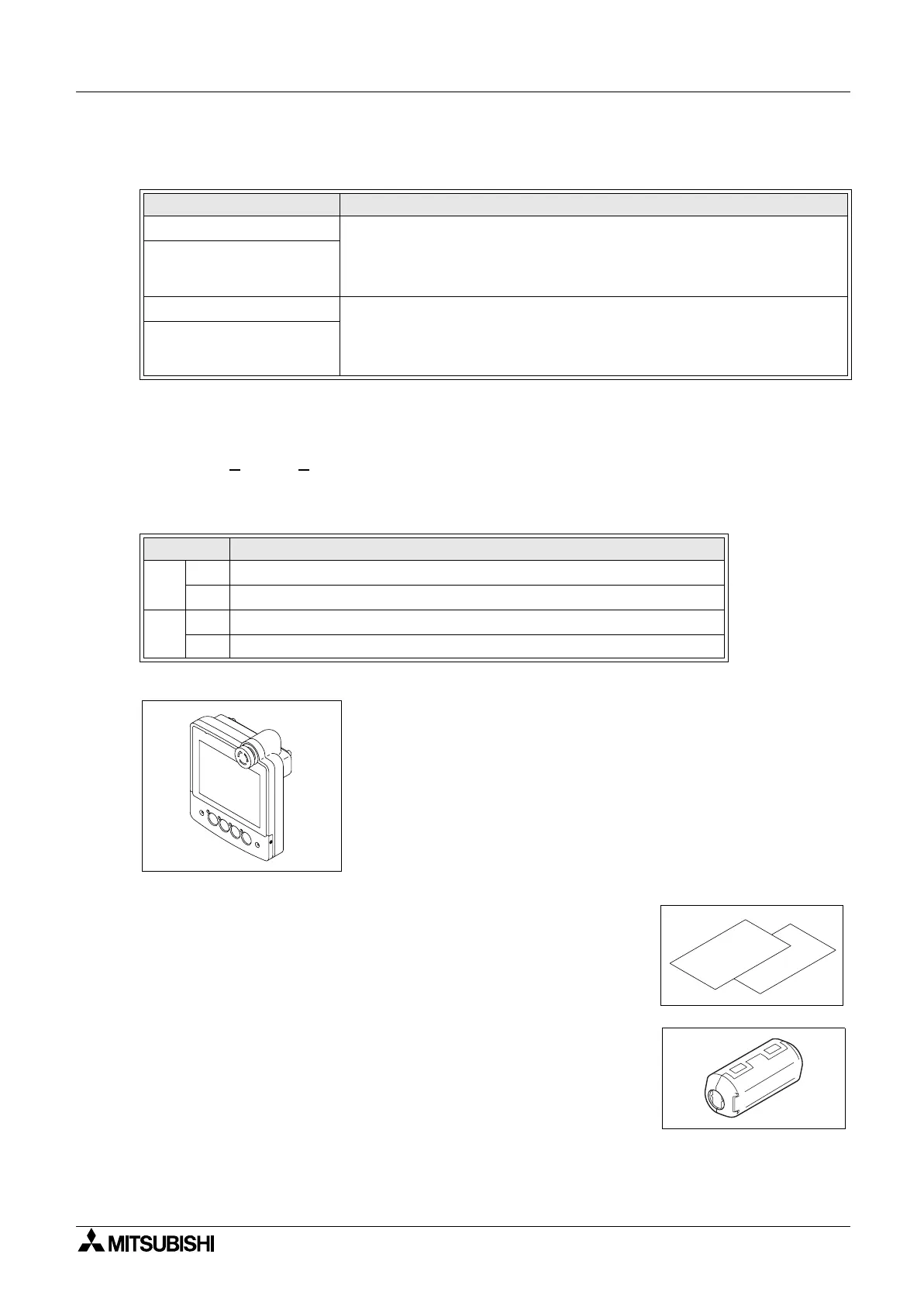

F940GOT Handy Series Introduction 1
1-3
1.2 Product Lists
1.2.1 Model Name
The model name of the Handy GOT is read as follows.
1.2.2 Handy GOT Main Unit
Accessories:
- Sheets to change switch names (All model)
A transparent sheet and a mount sheet are offered as
accessories so that operation switch names can be
changed.
For the name changing procedure, refer to chapter 4.
- Ferrite filter for CE EMC (F943GOT-*BD-H-E model only)
For compliance to CE EMC regulations it is necessary to
add a ferrite filter on the external cable for F943GOT-SBD-H-
E or F943GOT-LBD-H-E.
Further information can be found in the Notification of CE
marking sheet in the product box and section 3.3.1 of this
manual.
This ferrite filter model name/number is TDK ZCAT2035-
0930A-BK.
Table 1.1: Product Lists
Production Name Description
F940GOT-SBD-H-E Handy GOT main unit
This type uses RS-422 communication for connecting to PLC.
- SBD type is 8 Colors
- LBD type is White and black
F940GOT-LBD-H-E
F943GOT-SBD-H-E Handy GOT main unit
This type uses RS-232C communication for connecting to PLC.
- SBD type is 8 Colors
- LBD type is White and black
F943GOT-LBD-H-E
Table 1.2: Notes on Model Name
Description
A
0 RS-422 communication for connecting to PLC
3 RS-232C communication for connecting to PLC
B
S STN type 8 colors liquid crystal
L STN type black and white liquid crystal
F94*GOT-*BD-H-E
AB
POWER
GRIP SW
