F940GOT Handy Series Introduction 1
1-4
1.3 Options
1.3.1 External Cable
These external cables contain dedicated wires for communications, DC power supply, opera-
tion switches and the emergency switch. One of the cables below is always necessary.
Note:
When using F9GT-HCAB-*M external cable, one of the following relay cables or an F9GT-
HCNB conversion box is necessary.
1.3.2 Other Options
Order the following options upon necessity.
1) Relay cable for PLC
• F9GT-HCAB2-150
This cable connects to an FX
0
/FX
0S
/FX
0N
/FX
1S
/FX
1N
/FX
2N
/
FX
2NC
(with 8-pin MINI-DIN connector), and is equipped with
an external cable (with 25-pin D-sub connector) for power
supply, operation switch and emergency switch.
Cable length is 1.5 m (4'
11").
Note:
This cable cannot be used for the F943GOT-*BD-H-E (RS-232C communication type
Handy GOT).
• F9GT-HCAB3-150
This cable connects to an FX/FX
2C
/A/QnA Series PLC or
motion controller (with 25-pin D-sub connector), and is
equipped with an external cable (with 25-pin D-sub
connector) for power supply, operation switch and
emergency switch
Cable length is 1.5 m (4'
11").
Note:
This cable cannot be used for the F943GOT-*BD-H-E (RS-232C communication type
Handy GOT).

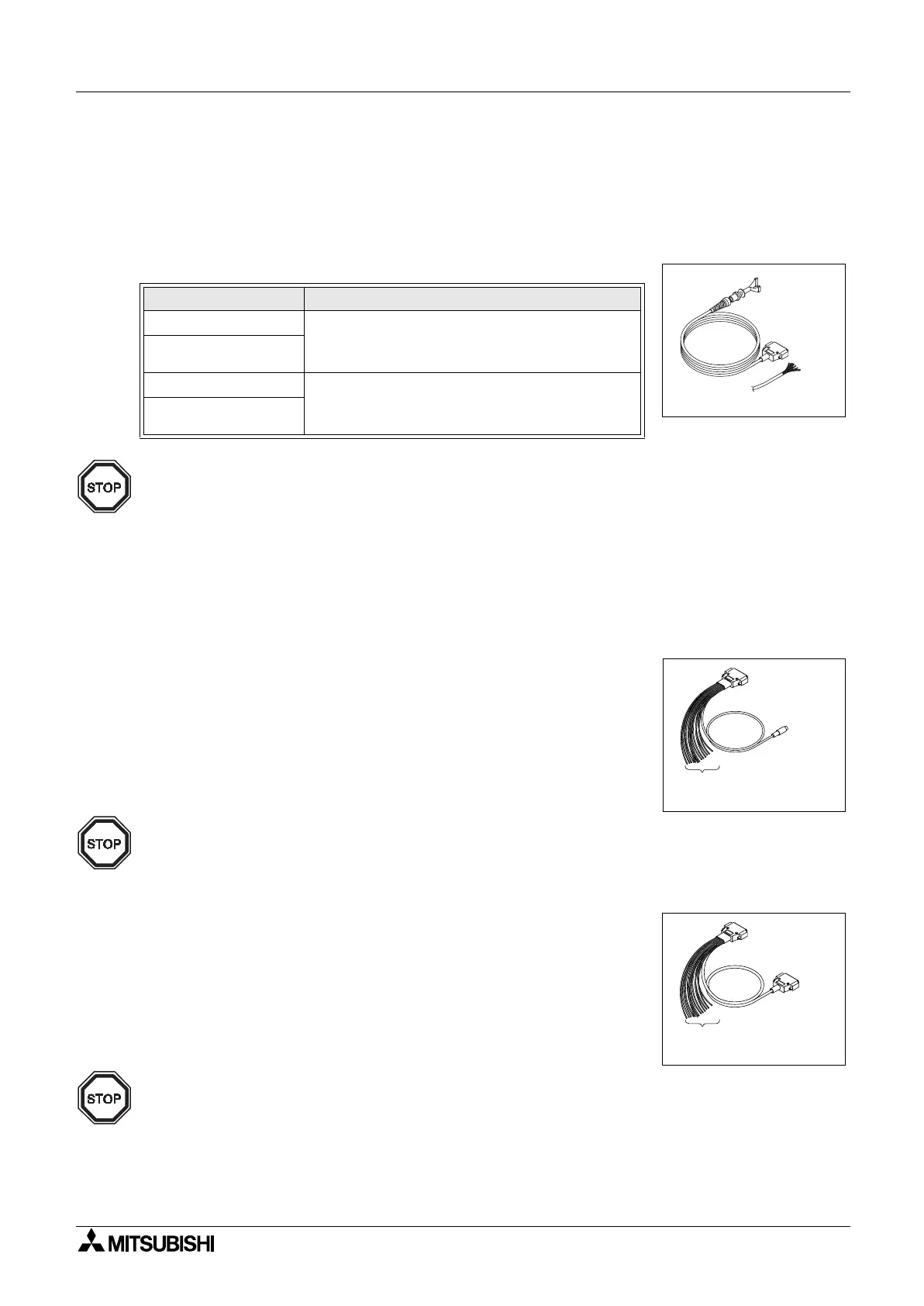

Table 1.3: External Cable
Model Name Description
F9GT-HCAB-3M 25-pin D-sub connector on one side,
- 3M: Cable length is 3m (9' 10")
- 10M: Cable length is 10m (32' 9")
F9GT-HCAB-10M
F9GT-HCAB1-3M United wires on one side,
- 3M: Cable length is 3m (9' 10")
- 10M: Cable length is 10m (32
'
9
"
)
F9GT-HCAB1-10M
F o r u n ite d w ir e s
For 25pin
D-sub
To PLC
For power supply or
operation switch
To PLC
For power supply or
operation switch
