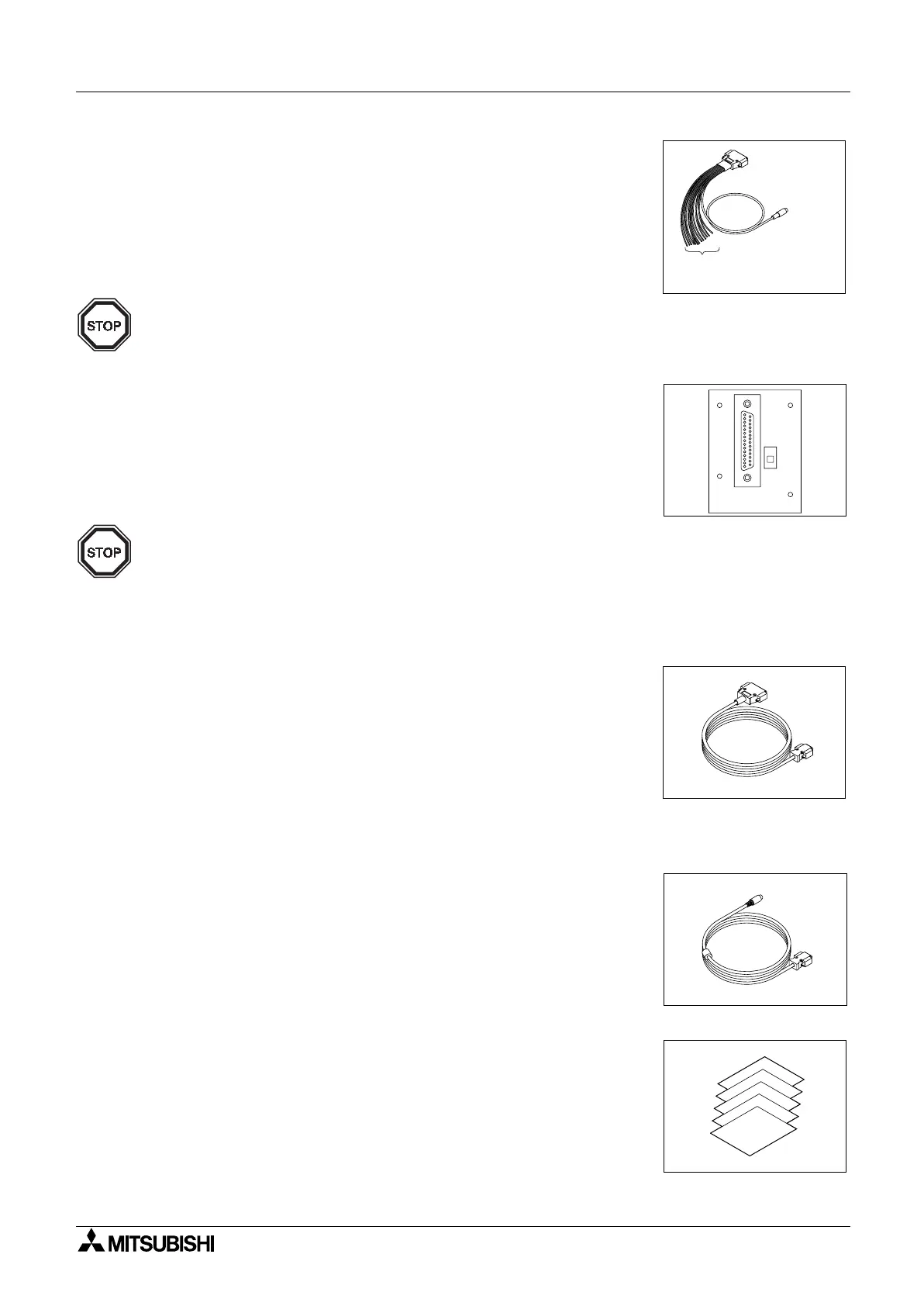

• F9GT-HCAB5-150
This cable connects to a Q Series PLC or motion controller
(with 6-pin MINI-DIN connector), and is equipped with an
external cable (with 25-pin D-sub connector) for power
supply, operation switch and emergency switch
Cable length is 1.5 m (4'
11").
Note:
This cable cannot be used for the F940GOT-*BD-H-E (RS-422 communication type
Handy GOT).
2) F9GT-HCNB conversion box
This box converts a 25-pin D-sub connector of an external cable
into a port for PLC connection and separate terminals for power
supply, operation switch and emergency switch.
Note:
This conversion box cannot be used for the F943GOT-*BD-H-E (RS-232C
communication type Handy GOT).
3) Communication cables
• FX-40DU-CAB
This cable connects the F9GT-HCNB to a CPU port
(programming port) of an FX/FX
2C
/A Series PLC via CPU
port connection setting.
Cable length is 3.0 m (9' 10")
This cable is not available when a Handy GOT is connected
via a communication port (communication unit).
Further information can be found in the GOT-F900 Series
Hardware Manual.
• FX-50DU-CAB0 /-1M
Either of these cables connects the F9GT-HCNB and an FX
0
/
FX
0S
/FX
0N
/FX
1S
/FX
1N
/FX
2N
/FX
2NC
Series PLC by CPU port
connection setting.
Cable length;
- Normal type: 3m (9' 10")
- -1M type: 1m (3' 3")
4) Protective sheets F9GT-40PSC (5 sheets in 1 set)
Adhere one disposable sheet to the display screen for protection
against dirt and abrasion.
