F940GOT Handy Series Preparation of the Operation Switch Name Sheet 4
4-1
4. Preparation of the Operation Switch Name Sheet
This paragraph describes how to create the operation switch name sheet.
4.1 Preparing the name sheet
1) Use a name sheet and OHP sheet (transparent sheet) offered as accessories.
2) Write the switch names on the name sheet.
The name sheet is of actual dimensions.

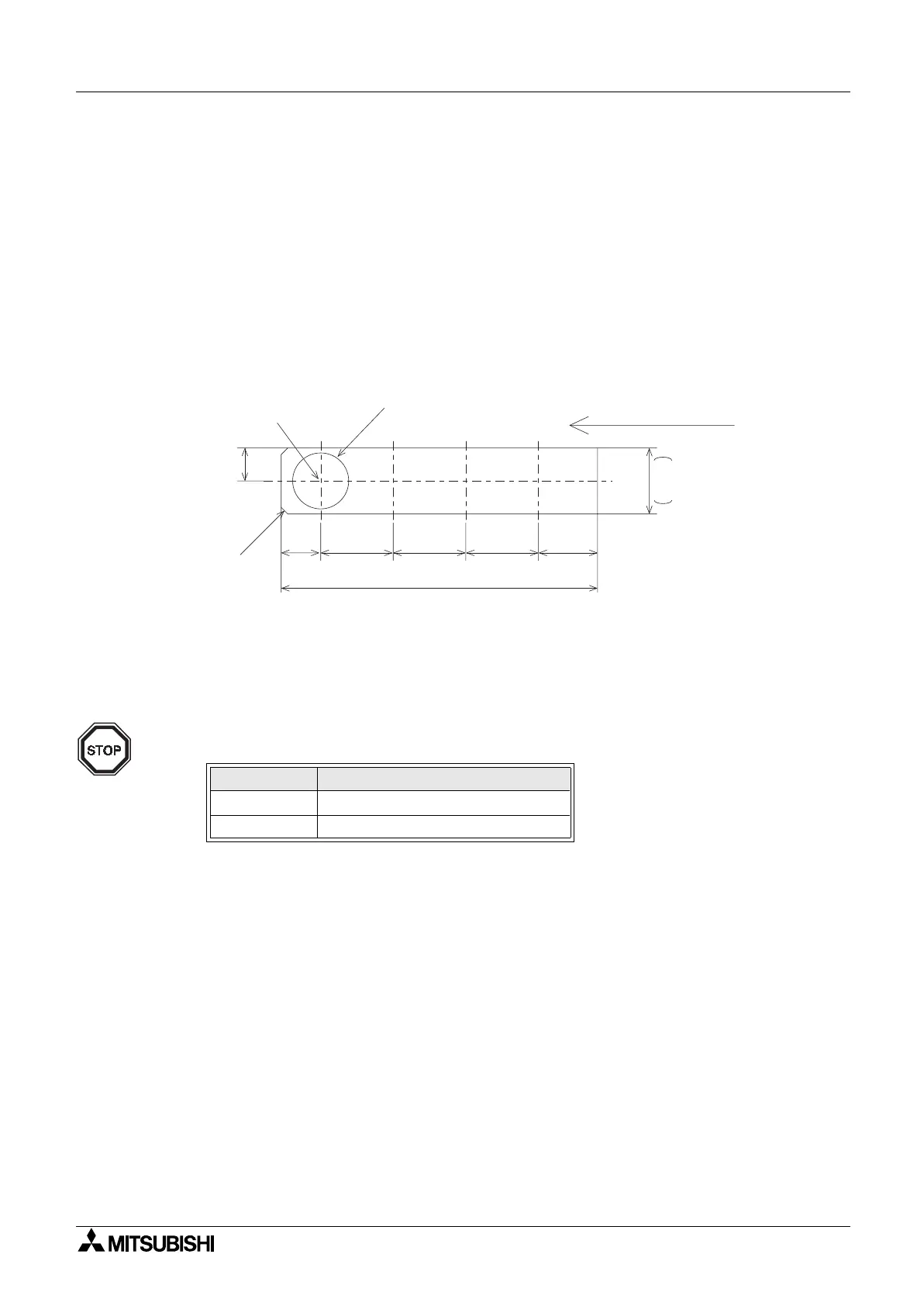

If you would like to make additional names sheets, refer to the following dimensions.
3) When the work in the step 2) is finished, copy the contents of the name sheet on to the OHP
sheet using a copy machine.
When using a different OHP sheet, use the following type. Make sure that the selected OHP
sheet can be used in a copy specification.
OHP sheet specification
Table 4.1: OHP Sheet Specification
Item Specifications
Material Polyester film
Thickness 0.1 mm (0.004")
Key center
(p rin t c e n te r)
S h e e t in s e r tio n d ir e c tio n
12
(0.47)
22
(0.87")
22
(0.87")
22
(0.87")
(18)
(0.71")
96 (3.78")
10
(0.39")
C2(0.08")
20
+0
-1
D iam eter = 17 (0.67"): E ffective range for characters
0.79
+0
-0.04"
unit: mm (inches)
F940GOT Handy Series Preparation of the Operation Switch Name Sheet 4
