F940GOT Handy Series Introduction 1
1-7

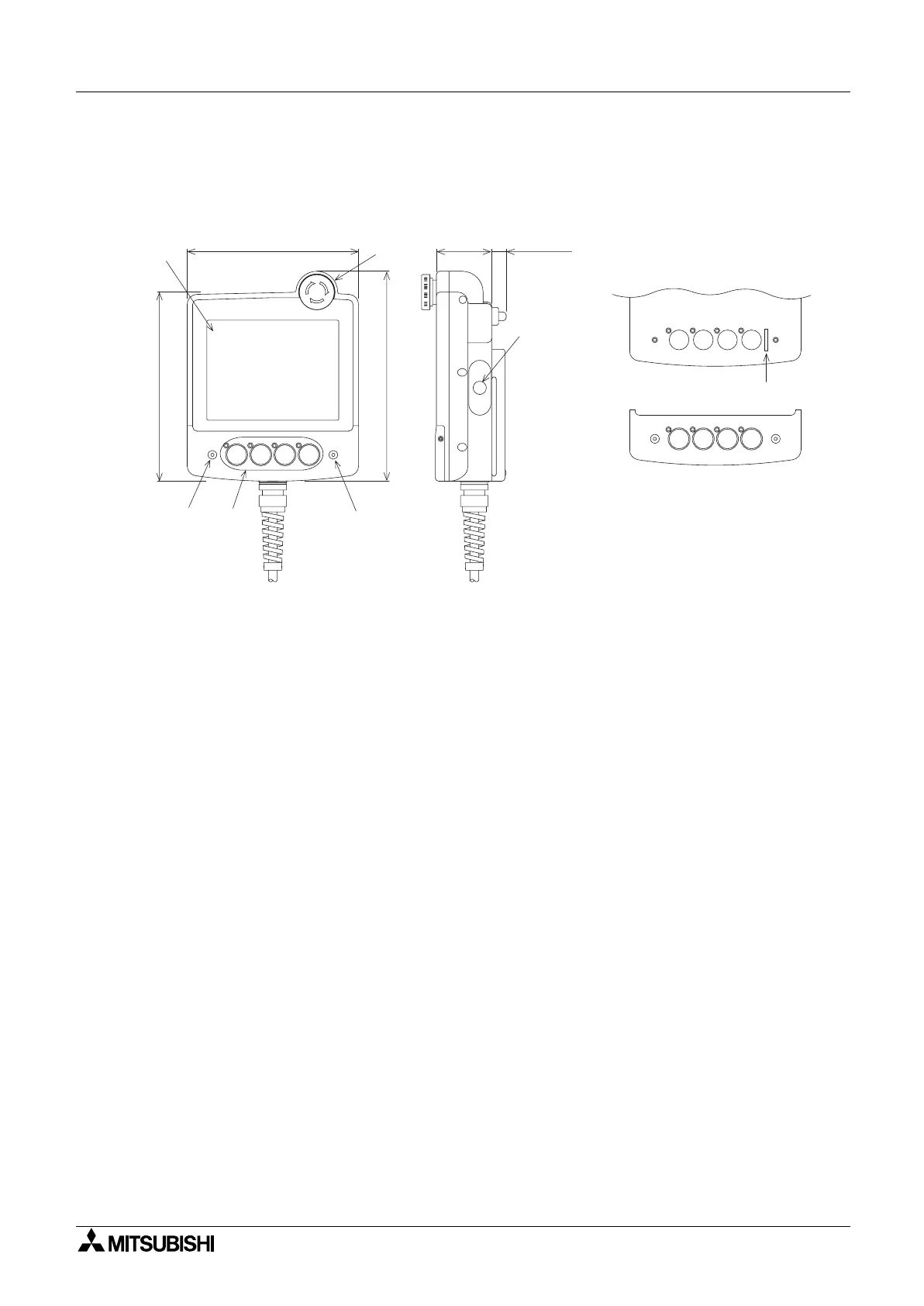

1.4 Dimensions and Part Names
1.4.1 Dimensions and Part Names of Front Panel
Dimensions: mm (inches) MASS: 0.79 kg (1.74 lbs)
a) Touch key LCD unit
This display unit offers the functions equivalent to those offered by the F940GOT series
display unit. Further information on the standard F940GOT series can be found in the
GOT-F900 Series Operation Manual.
b) Emergency stop switch
Independent contact, 24V DC specification.
c) Grip switch LED
Lit while the grip switch provided on the side is being pressed.
d) Operation switches
Direct connection to inputs on the PLC.
The name of these operation switches can be personalized using a transparent sheet
and a label sheet offered as accessories. (Refer to Chapter 4)
Each of these switches is equipped with a green LED which indicates its status. The
green LED lighting command is transferred between the PLC through serial
communication.
These LEDs can be controlled by the user program in the PLC. Further information can
be found in the GOT-F900 Series Hardware Manual.
e) POWER LED
Lit while 24V DC power is supplied to the Handy GOT.
f) Grip switch
A grip switch is provided on the side of the Handy GOT. While the grip switch is pressed,
manipulation of the touch keys on the screen is effective. Further information can be
found in the GOT-F900 Series Hardware Manual.
g) Operation switch name sheet insertion slot
Can be seen when the operation switch cover is removed from the lower portion of the
Handy GOT.
POW ER GRIP SW
156 (6.14")
172
191
50.5
(1.99")
13 (0.51")
a) b)
f )
c)
d)
e)
POW ER GRIP SW
W hen the operation sw itch cover is rem oved
O peration sw itch cover
g )
To Next Page
