3.4.2 Using the F943GOT Handy
Installing a connector on the panel of a control box or cabinet
Connect a Q Series PLC using a relay cable for connection to PLC as shown below. Connect
to a FX/A/QnA Series PLC using the F9GT-HCAB1-**M external cable for connection to these
PLCs. Further information about applicable PLC can be found in GOT-F900 Series Hardware
Manual.
a) External cable (with 25-pin D-sub male connector)
F9GT-HCAB-3M (3m /9' 10")
b) Relay cable for connection to Q series PLC
F9GT-HCAB5-150 (1.5m /4' 11") for Q series PLC
Note:
When connecting to a port or unit other than the programming port of an FX, A or QnA
series PLC, make a cable corresponding to the configuration of the communications port in
question. Or use F9GT-HCAB1-**M external cable. For allocation of Handy GOT
communication signals, refer to section 3.2.

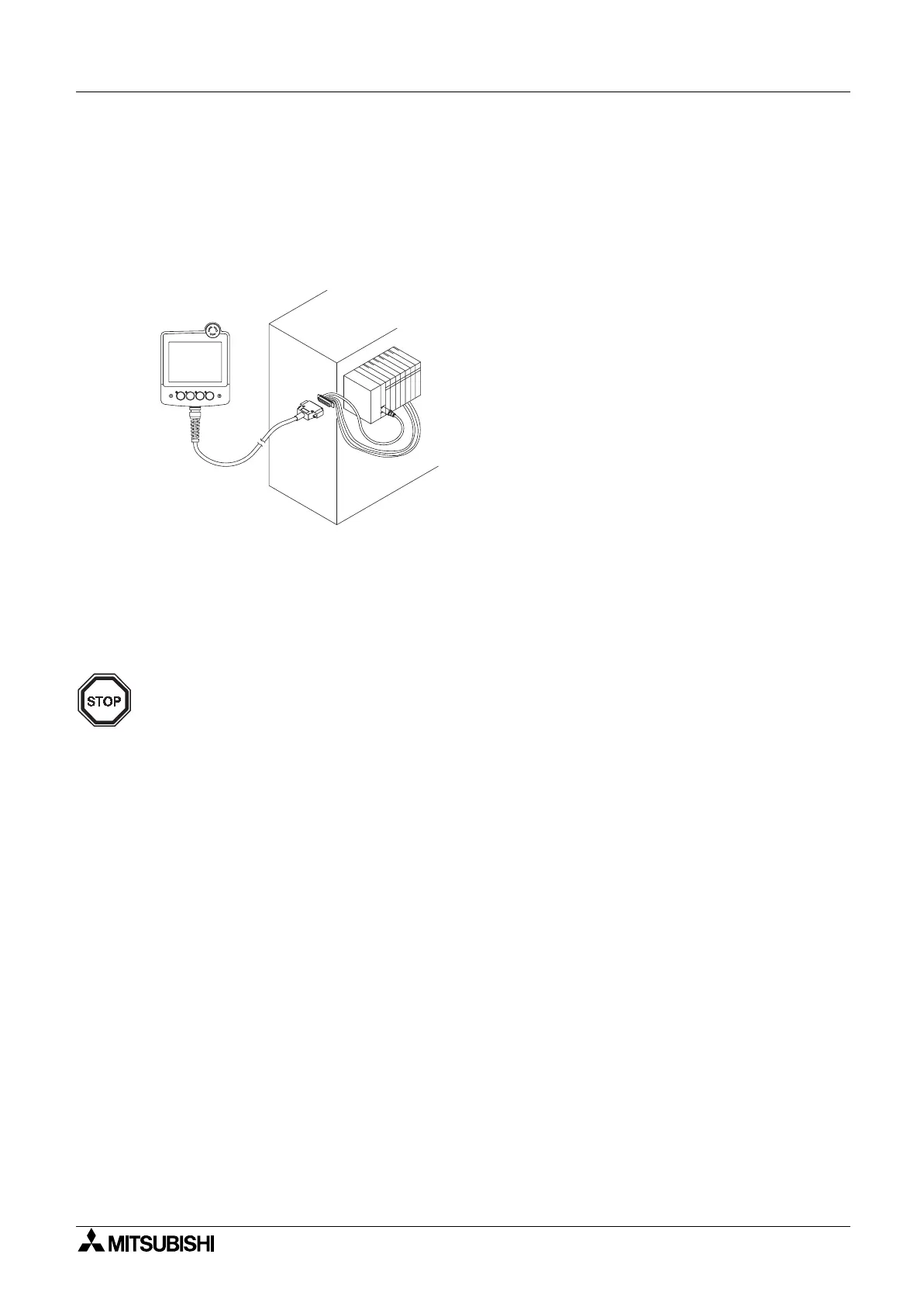

P O W E R G R I P S W
a)
b)
PLC
F943G O T H andy
C ontorol box or cabinet
