F940GOT Handy Series Installation 3
3-4

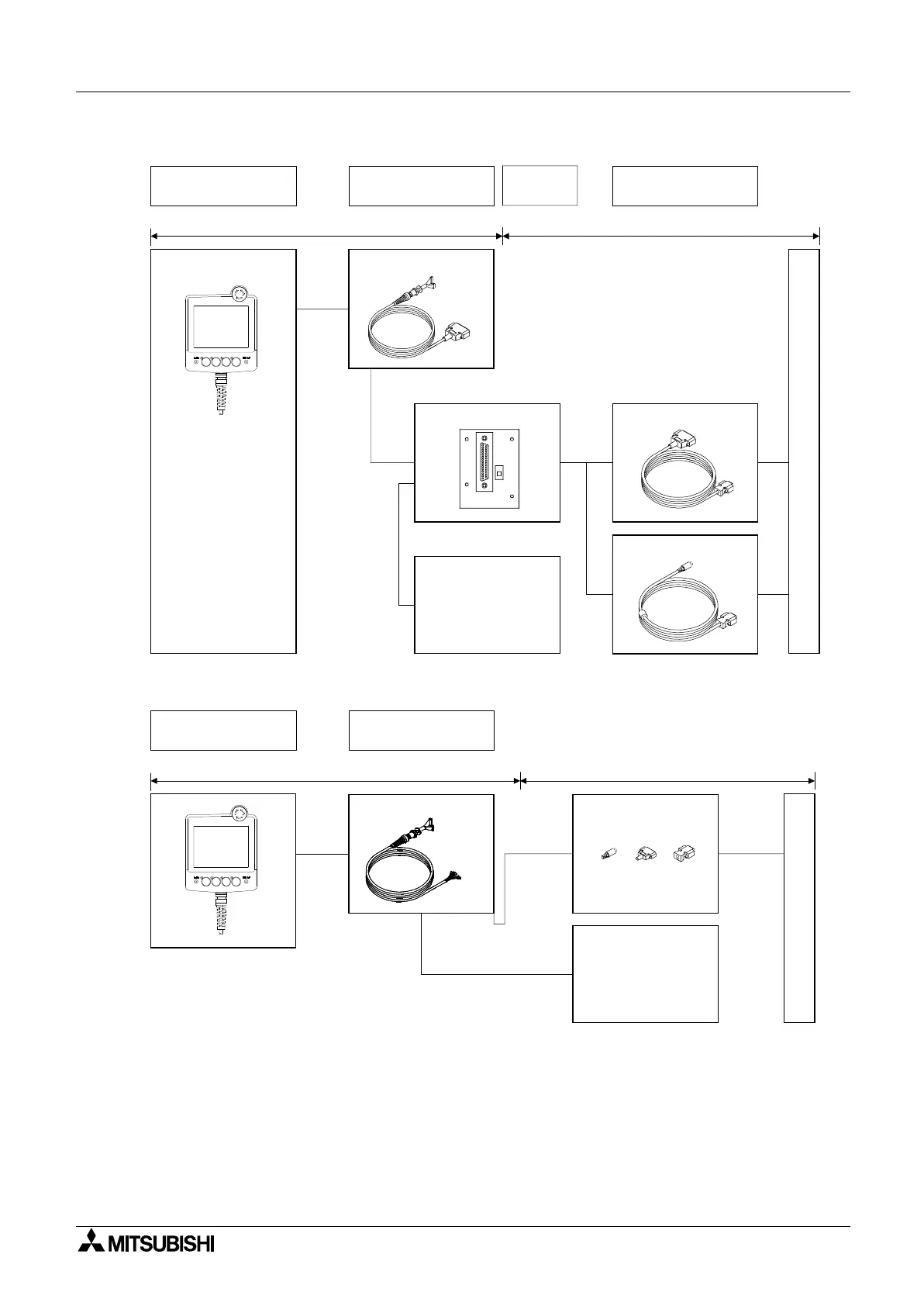

When Handy GOT is attached and removed (using F9GT-HCNB)
When Handy GOT is directly wired
Installed on panel face
F9GT-HCAB
FX-50DU-CAB0
FX-40DU-CAB
PLC
External cable Cable to PLC
Wiring inside panel
Handy GOT
Wiring outside panel
F9GT-HCNB
Conversion
box
Supplied from
external power
supply or service
power supply of PLC
24V DC
RS-422
F940 Handy GOT
only
F9GT-HCAB1
PLC
External cable
Wiring inside panel
Handy GOT
Wiring outside panel
Prepared by user
Supplied from
external power
supply or service
power supply of PLC
24V DC
To untied
cable
