REASSEMBLY OF BASIC ENGINE
7-11
2.6 Inspecting and adjusting timing gear after
installation
Be sure to inspect and adjust the timing gear when the
timing gear has been reassembled.
2.6.1 Inspecting backlash
Check backlash between each gear after installing the
timing gears.

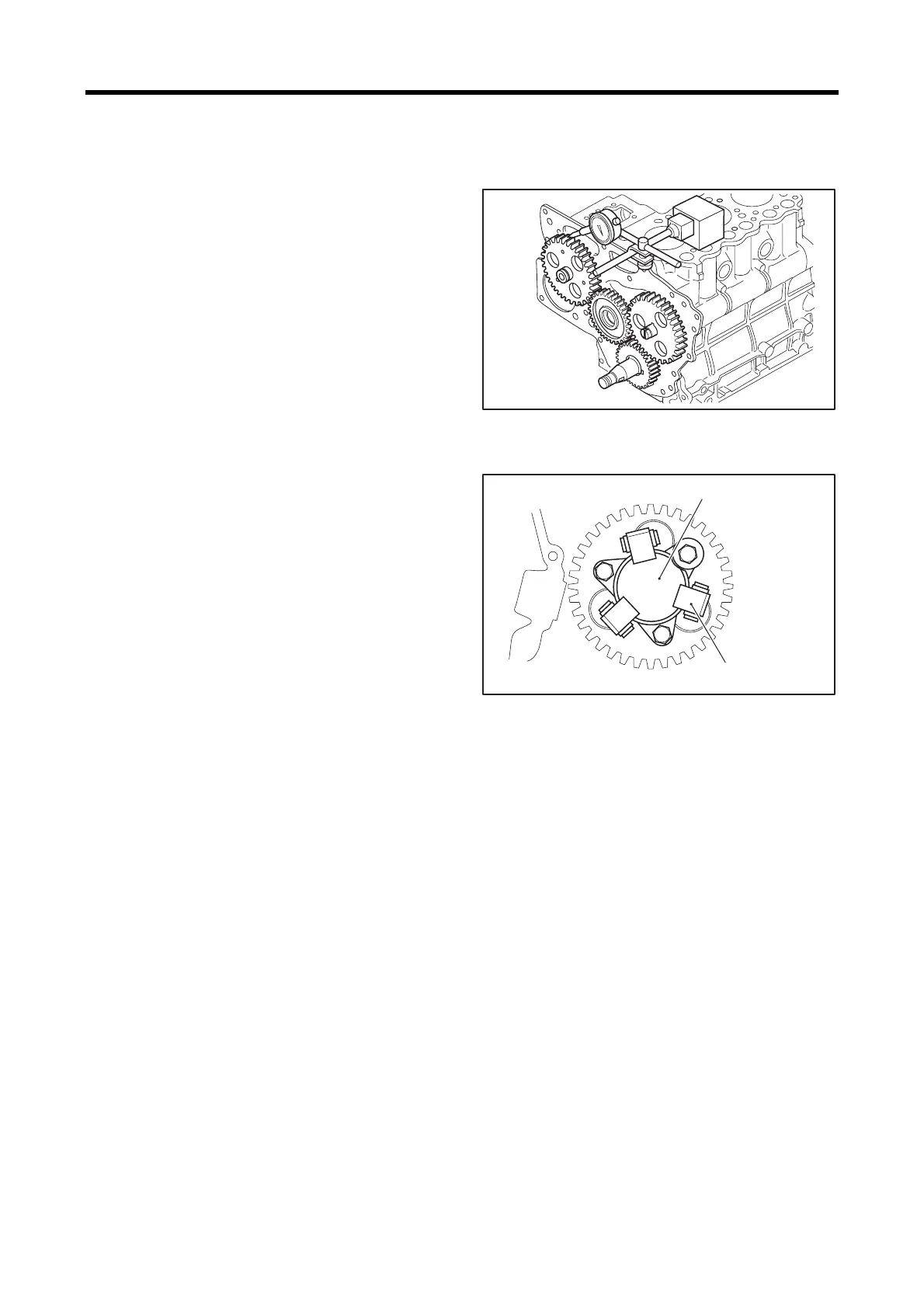

Measuring timing gear backlash
2.7 Installing governor weights and sliding
shaft
Install the governor weights and sliding shaft on the fuel
injection pump camshaft gear.
Installing governor weight and
sliding shaft
Sliding shaft
Governor weight
