Mitsubishi L3C Service Manual

FUEL SYSTEM
8-28

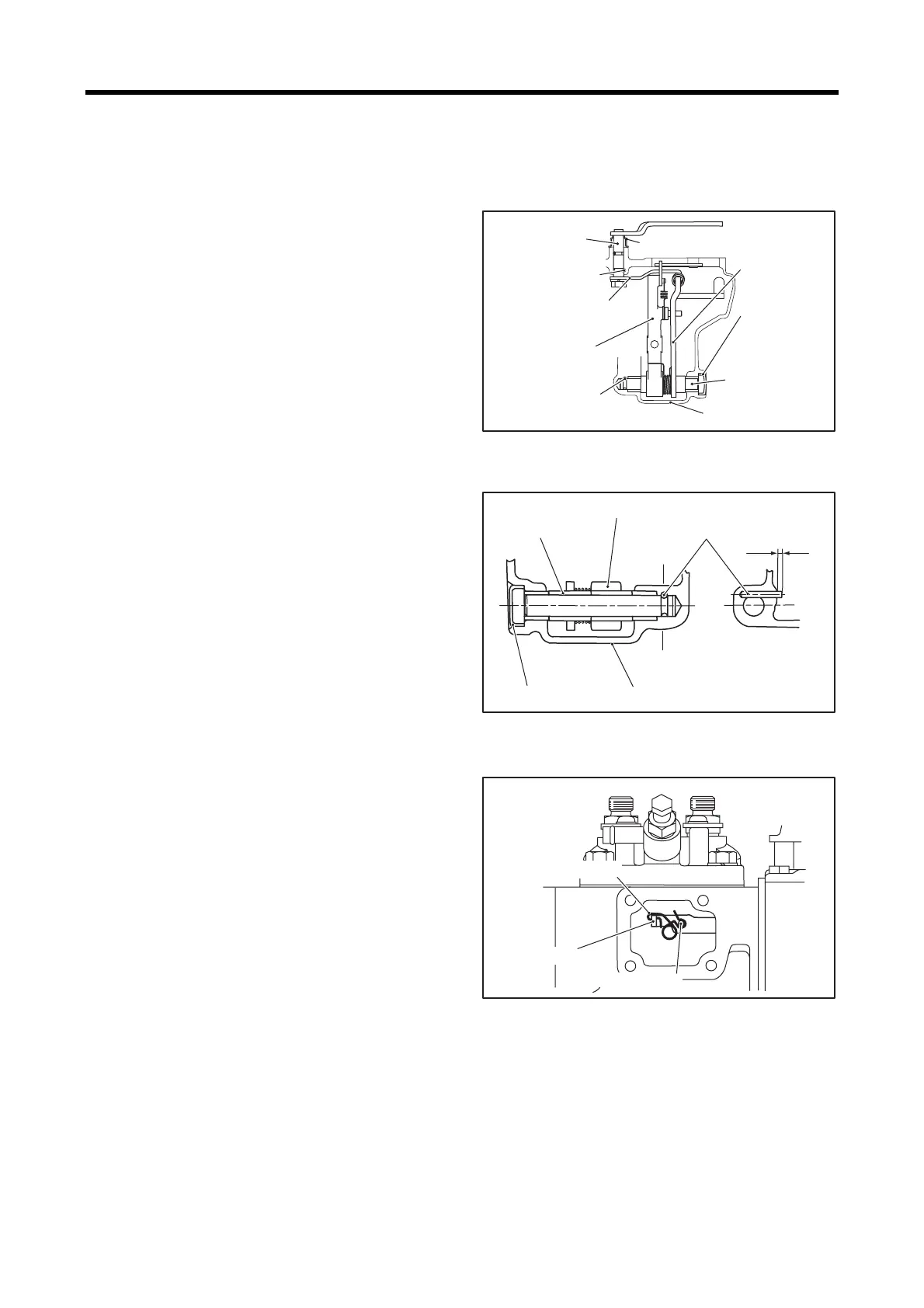

3.2.1 Installing speed control lever and governor
shaft
(1) Insert the governor shaft into the gear case while
placing the governor lever and the tension lever.
(2) Drive the grooved pin A into the gear case.
(3) Drive new sealing cap into the gear case.
(4) Thoroughly apply Alvania Grease #2 or #3 to the
governor shaft cover.
(5) With governor shaft cover installed on speed control
lever, install a new O-ring on the speed control lever
and insert it into the gear case.
(6) Drive the grooved pin B into the gear case.
(7) Install the governor spring lever.
Note: Assemble the speed control lever and the governor
spring lever with the minimum assembling angle.
Installing speed control lever and
governor shaft
Reassembling speed control lever
3.2.2 Connecting tie rod
Connect the tie rod to the control rack of fuel injection
pump and fix them with the tie rod clip.
Connecting tie rod
Speed control
lever
Grooved pin B
Grooved pin A
Governor spring lever
Governor lever
Gear case
Governor shaft
Governor shaft cover
Tension lever
Sealing cap
Grooved pin
Protrusion
approx. 2 mm
[0.08 in.]
Tension
lever
Governor lever
Sealing cap
Gear case
Section AA
㧭
㧭
Tie rod
Control rack
Tie rod clip
