FUEL SYSTEM
8-20

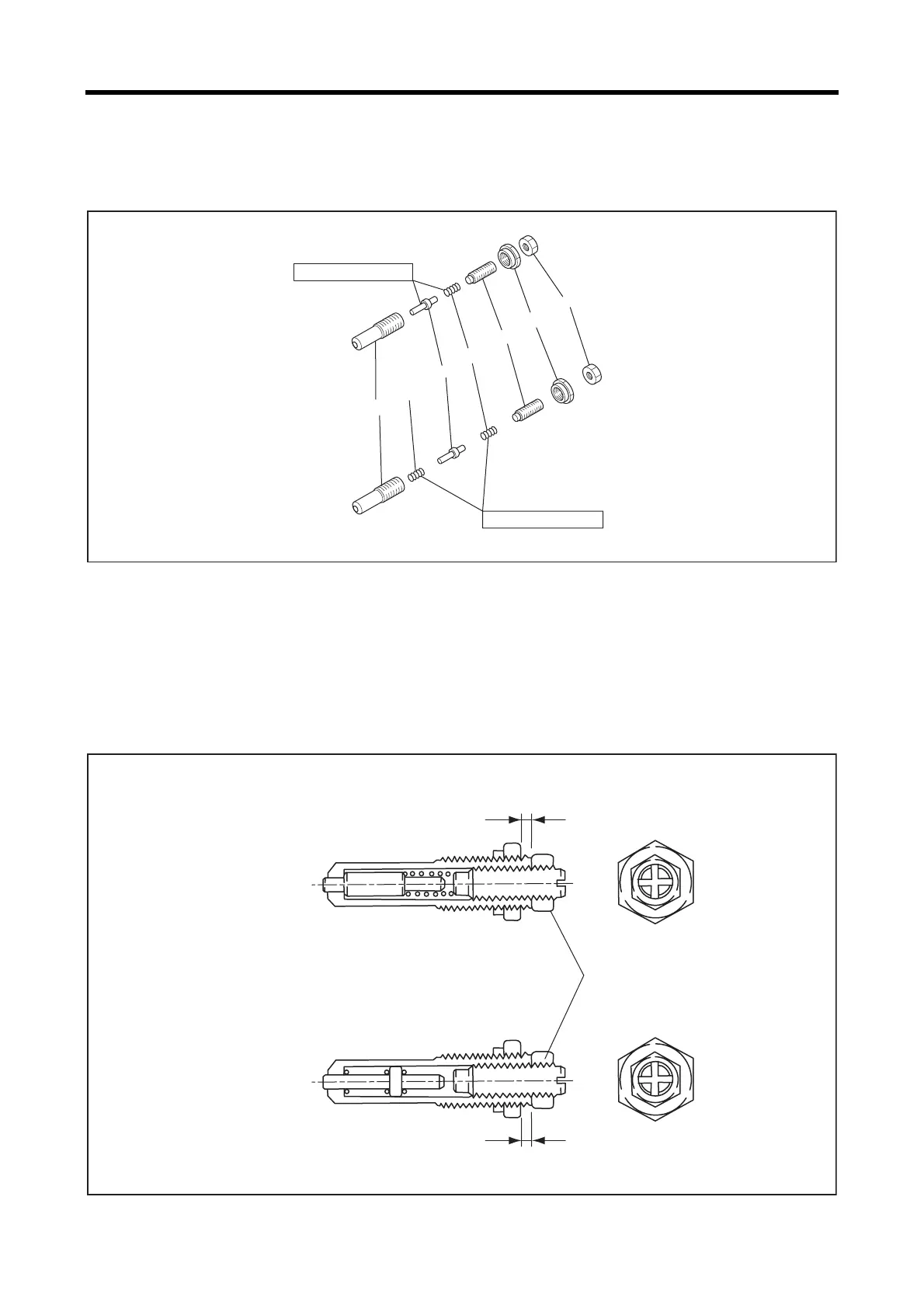

2.8 Disassembling and inspecting torque spring set
Disassembling and inspecting torque spring set
Disassembling sequence
2.9 Reassembling torque spring set
Reassembling torque spring set
1 Locknut 4 Spring stopper
2 Adjusting screw 5 Torque spring (2 spring type)
3 Torque spring 6 Torque spring case
Fatigue and crack
Fatigue and crack
(Single spring type)
(Double spring type)







(Single spring type)
(Double spring type)
Approx. 2mm [0.08in.]
Approx. 2mm [0.08in.]
7.8 to 11.8N㨯m
{0.8 to1.2kgf㨯m}
[5.8 to 8.7lbf㨯ft]
