ELECTRICAL SYSTEM
12-27

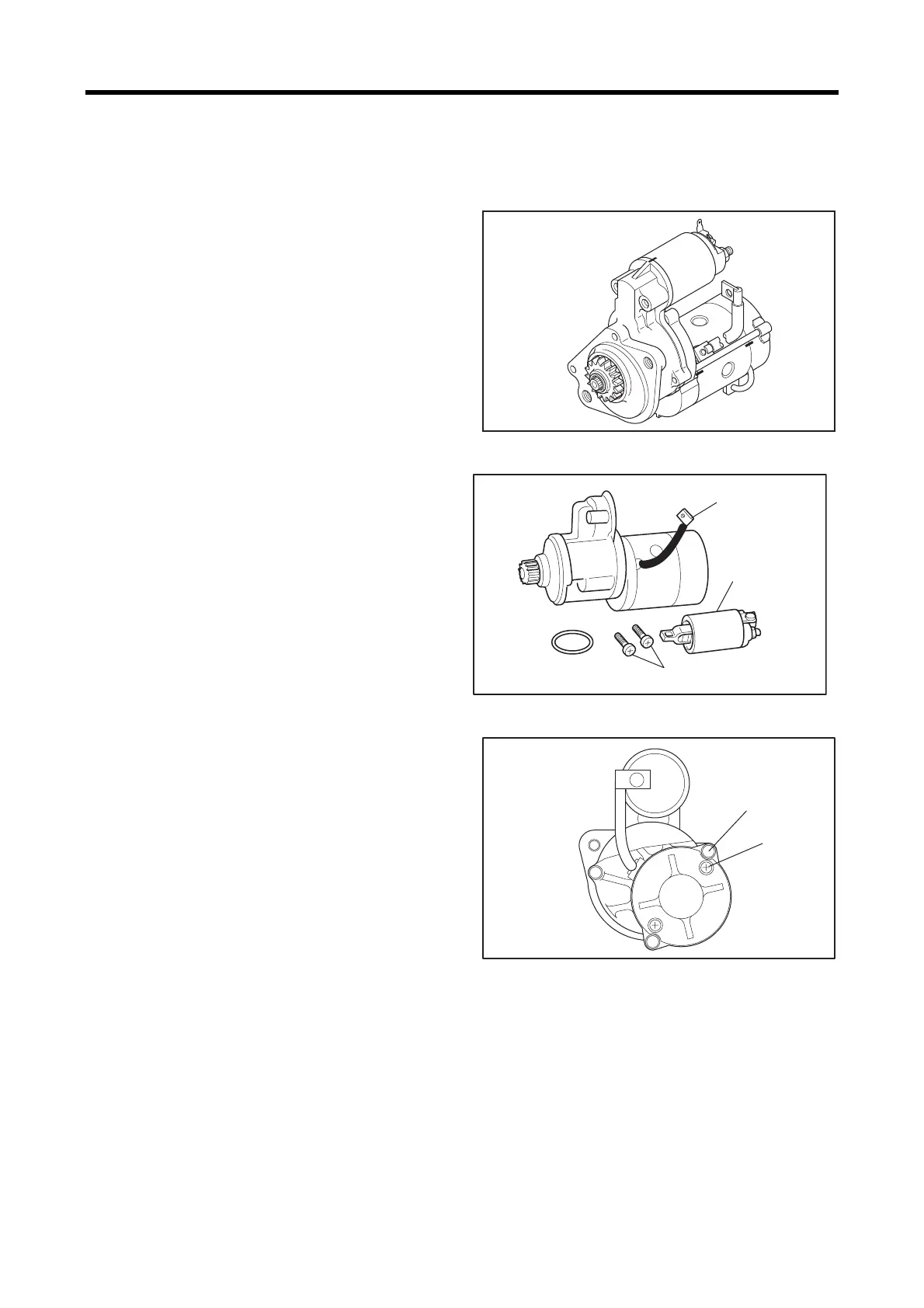

2.7.1 Preparation before disassembling
Mark the mating marks on magnetic switch, front bracket,
center bracket, yoke and rear bracket to each other for
reassembly.
Preparation before disassembling
2.7.2 Removing magnetic switch
Disconnect the leads, and remove the magnetic switch.
Removing magnetic switch
2.7.3 Removing rear bracket
Remove the through bolts and screws of the brush holder,
and then remove the rear bracket.
Removing rear bracket
Connector
Magnetic
switch
Mounting screw
Through bolt
Screw
To Next Page
