ELECTRICAL SYSTEM
12-44
2.1
1.5
Replacing brushes
(1)
T
o remove the brush and the spring, unsolder the brush
lead.
(2)
T
o install a new brush, push the brush into the brush
holder as shown in the illustration, and then solder the
lead to the brush.

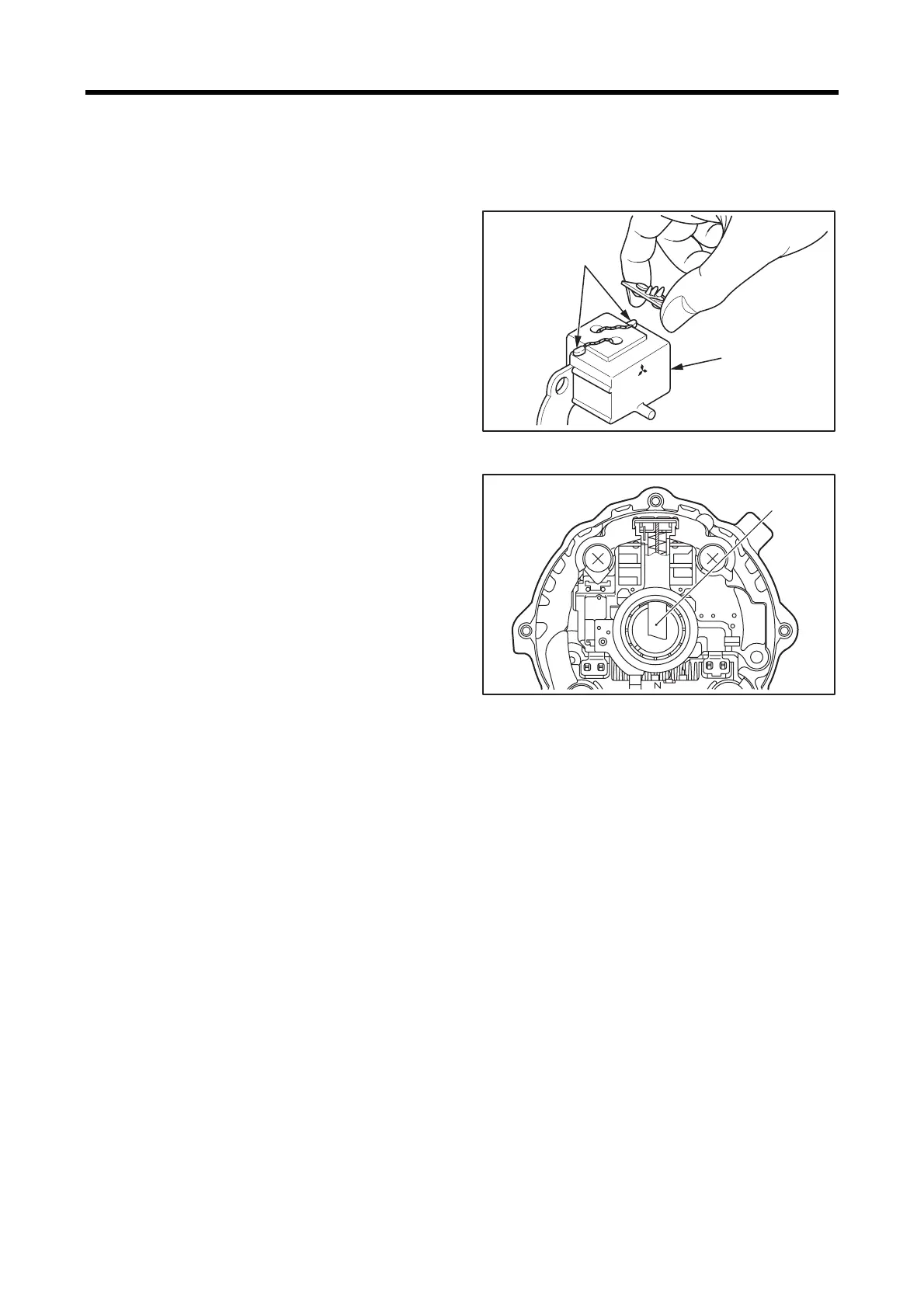

Replacing brushes
Installing brushes
Soldering
Brush holder
Brush
209
211
