LUBRICATION SYSTEM
9-4
1.2 Removing oil pump, oil pan and oil screen
Removing oil pump, oil pan and oil screen
Removing sequence
1.2.1 Removing oil pump
(1) Remove the oil pump housing from the gear case.
(2) Remove the oil pump outer gear and oil pump inner
gear from the oil pump housing.

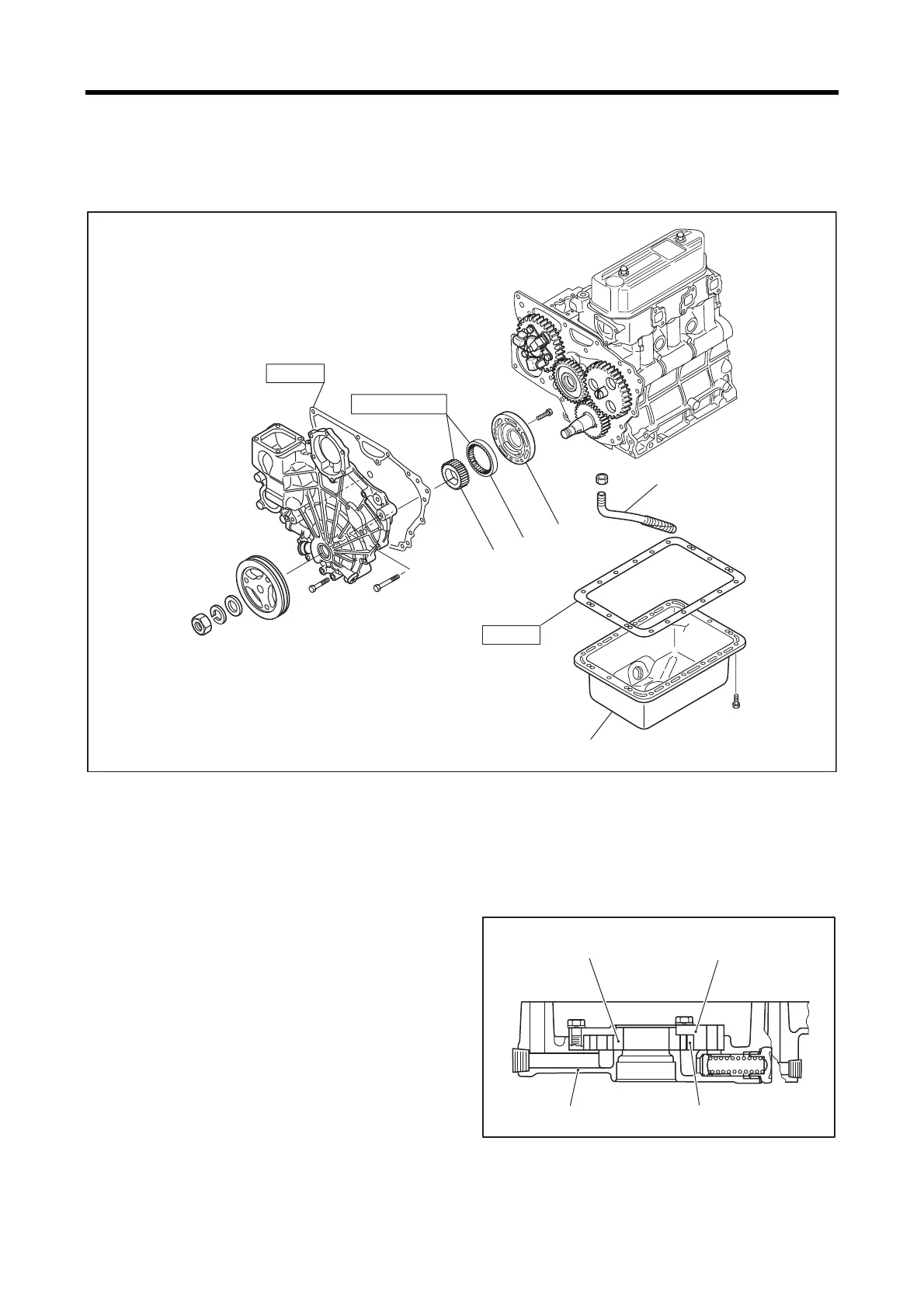

Removing oil pump
1 Oil pump housing 3 Oil pump inner gear 5 Oil screen
2 Oil pump outer gear 4 Oil pan
Replace
Flaking and wear





Replace
Oil pump housing
Oil pump outer gear
Gear case
Oil pump inner gear
