LUBRICATION SYSTEM

9-3

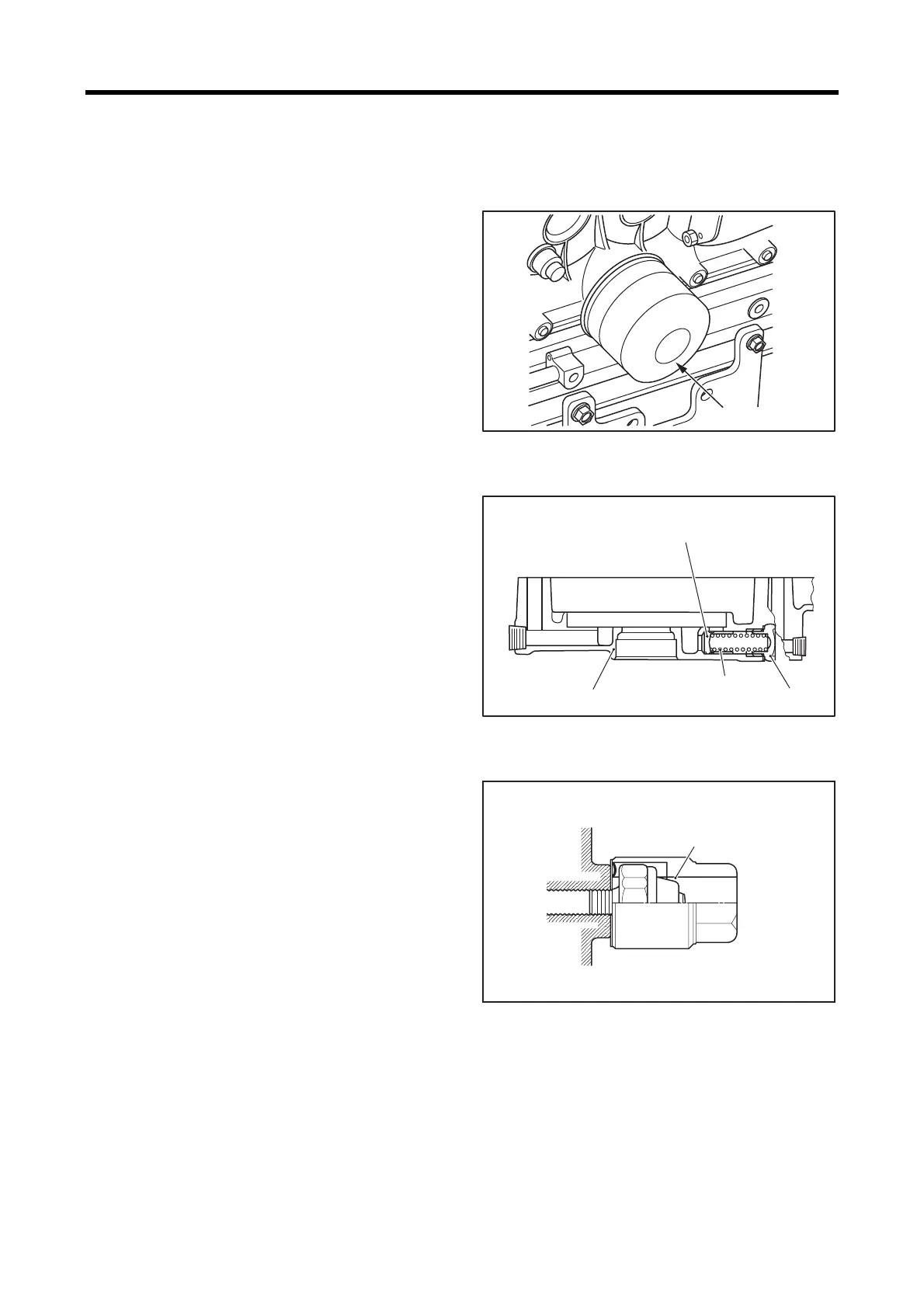

1.1.1 Removing oil filter

(1) Place a drip pan under the oil filter.

(2) Remove the oil filter using a filter wrench.

Removing oil filter

1.1.2 Removing relief valve

Remove the plug from the gear case and take out the relief

spring and relief plunger.

Removing relief valve

1.1.3 Removing oil pressure switch

Using an oil pressure switch socket wrench, remove oil

presssure switch.

Removing oil pressure switch

Oil filter

Plug

Relief

spring

Gear case

Relief plunger

Oil pressure switch

socket wrench

P/N:MD998054
