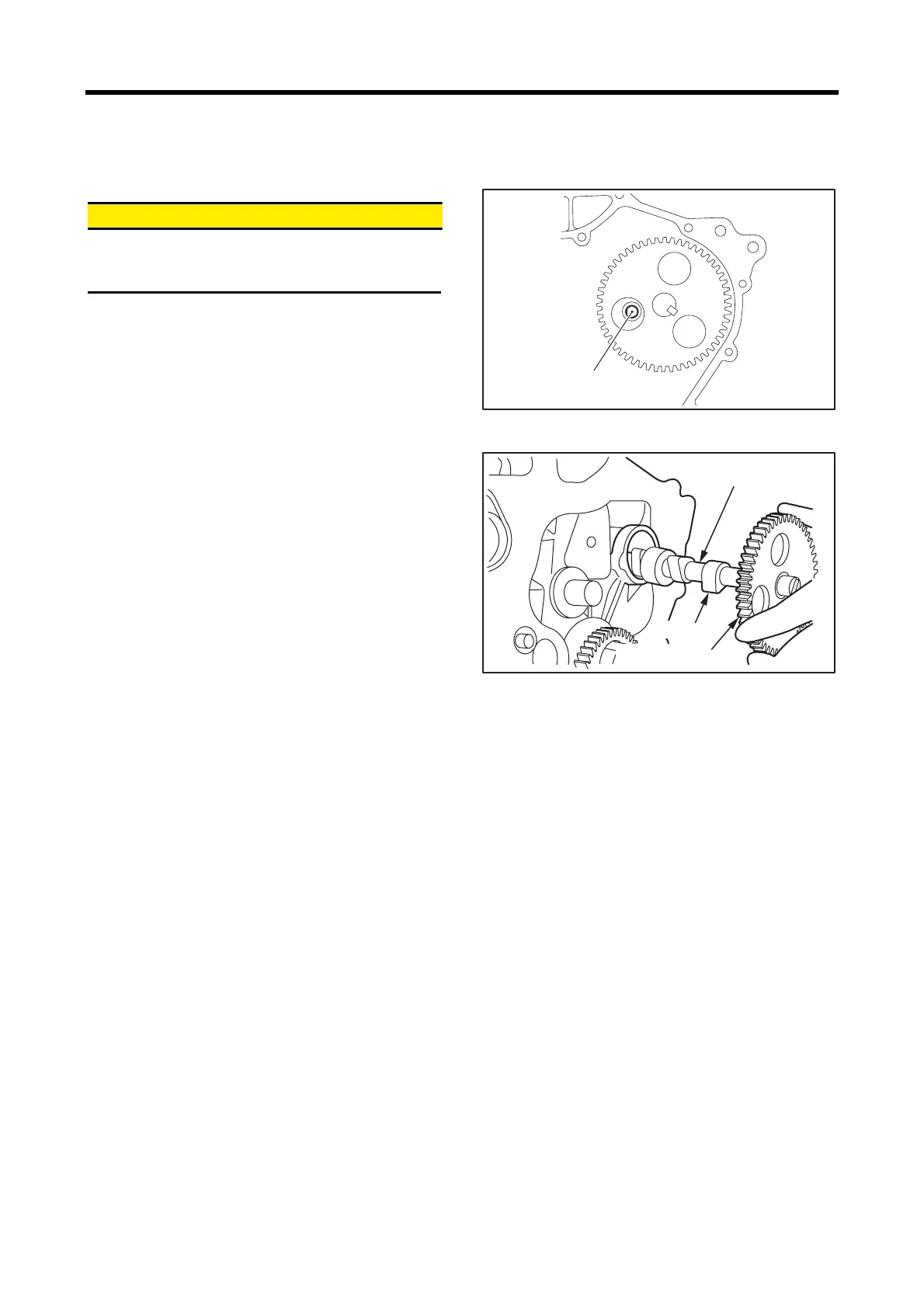

DISASSEMBLY OF BASIC ENGINE
5-12
3.1
1
Removing camshaf
t
&$87,21
Be careful not to cause damage
to the cam lobe of the
camshaft and the cam shaft hole
of the cylinder block
when removing the camshaft.
(1)
Remove the camshaft stopper washer
.
(2)
Pull out the camshaft together with camshaft gear
ball
bearings.
Removing camshaf
t (1)
Removing camshaf
t (2)
Camshaft
stopper washer
Camshaft
Cam
Camshaft gear
65
67
