ELECTRICAL SYSTEM
12-29

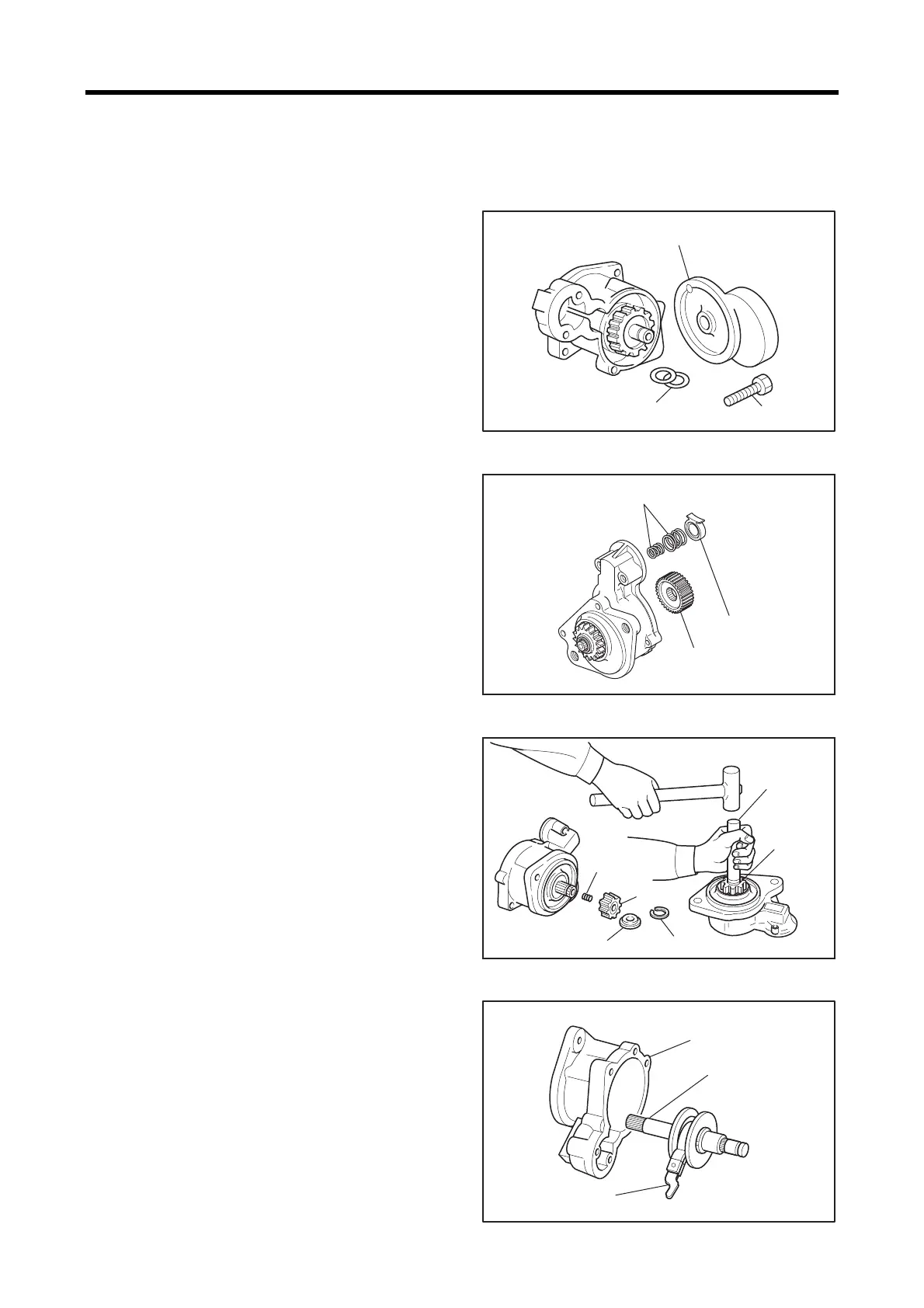

2.7.7 Removing center bracket
Remove the screw, then remove the center bracket. Once the
center bracket is removed, the adjusting washer that adjusts
the pinion shaft end play can be removed.
Removing center bracket
2.7.8 Removing reduction gear and
spring set
(1) Remove the reduction gear from the pinion shaft.
(2) Remove the packing and lever spring from the lever.
Removing reduction gear and spring set
2.7.9 Removing pinion set
(1) Place an appropriate tube on the pinion stopper. Tap the
tube with a hammer to drop the pinion stopper to the
clutch side. This will expose the stopper ring.
(2) Ply out the stopper ring, and remove the pinion.
Note: Do not reuse the stopper ring for reassembly.
Removing pinion
2.7.10 Removing lever and pinion shaft
Pull out the lever and pinion shaft from the front bracket.
Removing lever and pinion shaft
Center bracket
Adjusting washer
Screw
Lever springs
Reduction gear
Packing
Appropriate
tube
Stopper
ring
Spring
Pinion
Stopper ring
Pinion stopper
Front bracket
Pinion shaft
Lever
