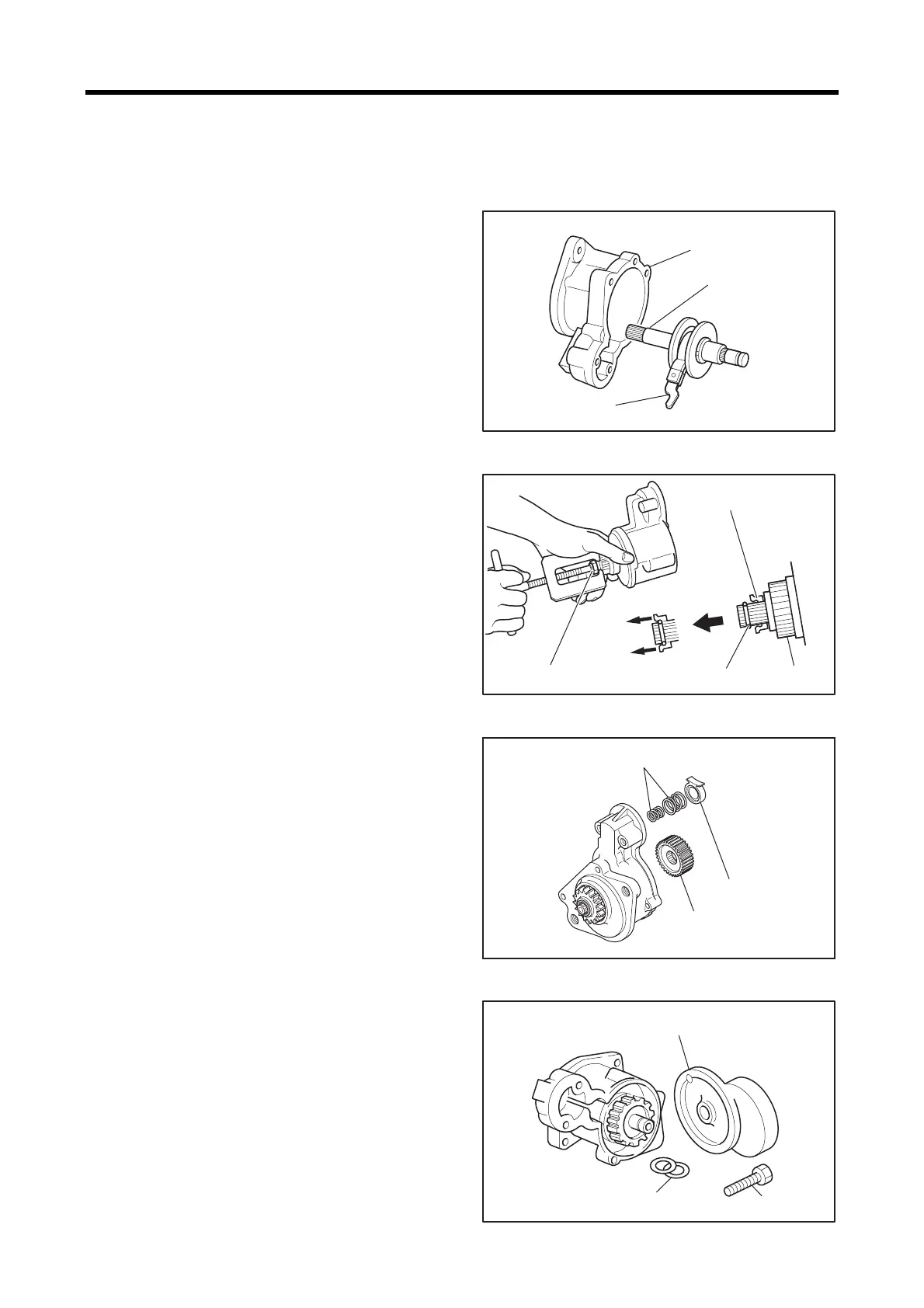

2.9.2 Installing lever and pinion shaft
Reassemble the lever to the pinion shaft and insert them into
the front bracket.
Installing lever and pinion shaft
2.9.3 Installing pinion
(1) Install the spring, pinion and pinion stopper on the
pinion shaft.
(2) Install a stopper ring into the ring groove on the pinion
shaft. Using a puller, pull the pinion stopper until its
groove engages with the stopper ring.
Installing pinion
2.9.4 Installing spring set and
reduction gear
(1) Install the two lever springs and packing on the lever.
(2) Install the reduction gear on the pinion shaft.
Installing spring set and reduction gear
2.9.5 Installing center bracket
Install adjusting washers on the pinion shaft and secure the
center bracket with a screw.
Installing center bracket
Front bracket
Pinion shaft
Lever
Pinion stopper
Pinion stopper
Stopper ring
Pinion
Lever springs
Reduction gear
Packing
Center bracket
Adjusting washer
Screw
