DISASSEMBLY OF BASIC ENGINE
5-14
3.13

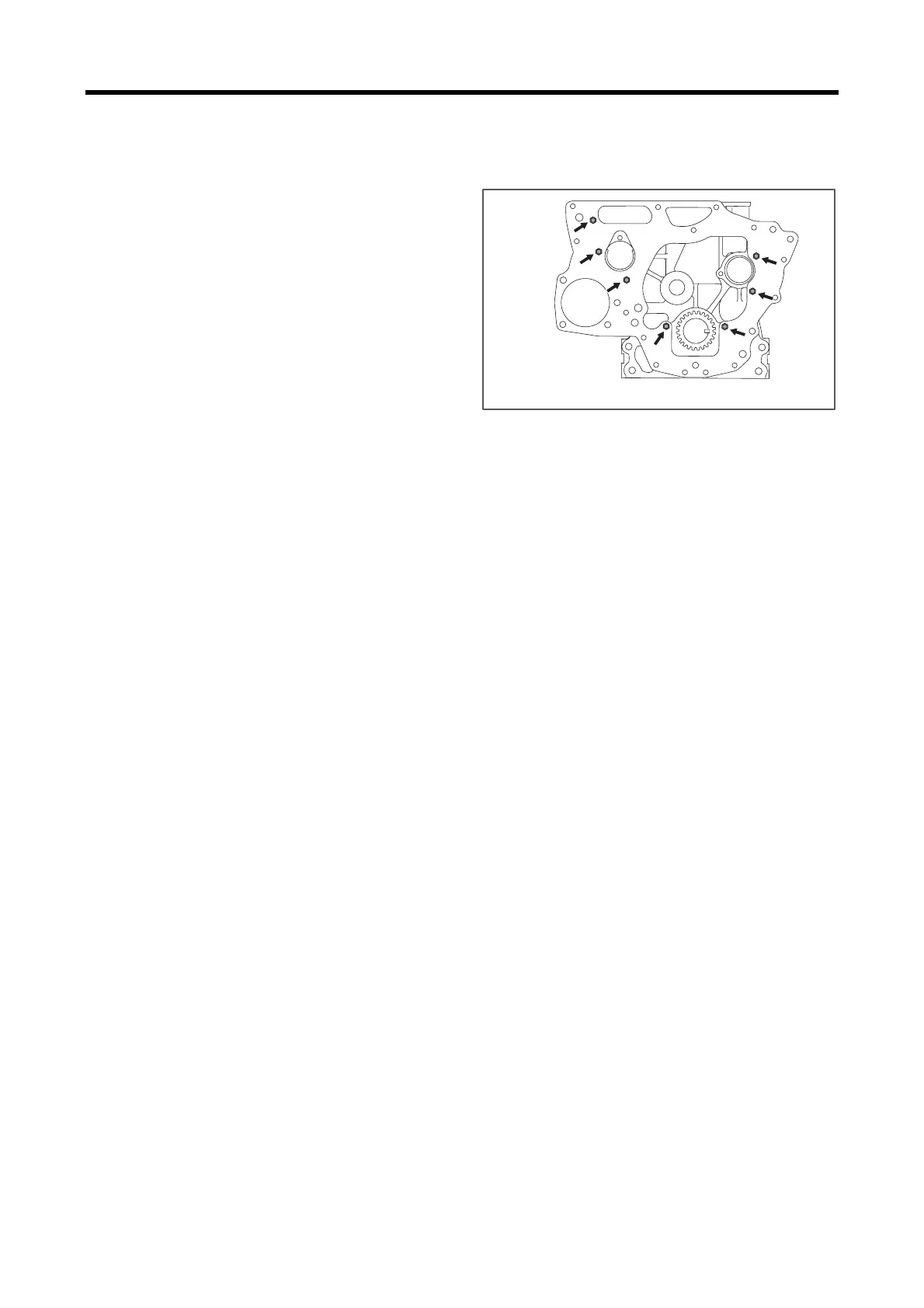

Removing front plate
(1)
Remove the front plate bolts.
(2)
Remove the front plate from the crankcase.
Note:
If it is difficult to remove the front plate, lightly tap
it
with a plastic hammer
.
Removing front plate
Fixing bolts of front plate: 7
67
69
