Mitsubishi L3C Service Manual

ELECTRICAL SYSTEM
12-40

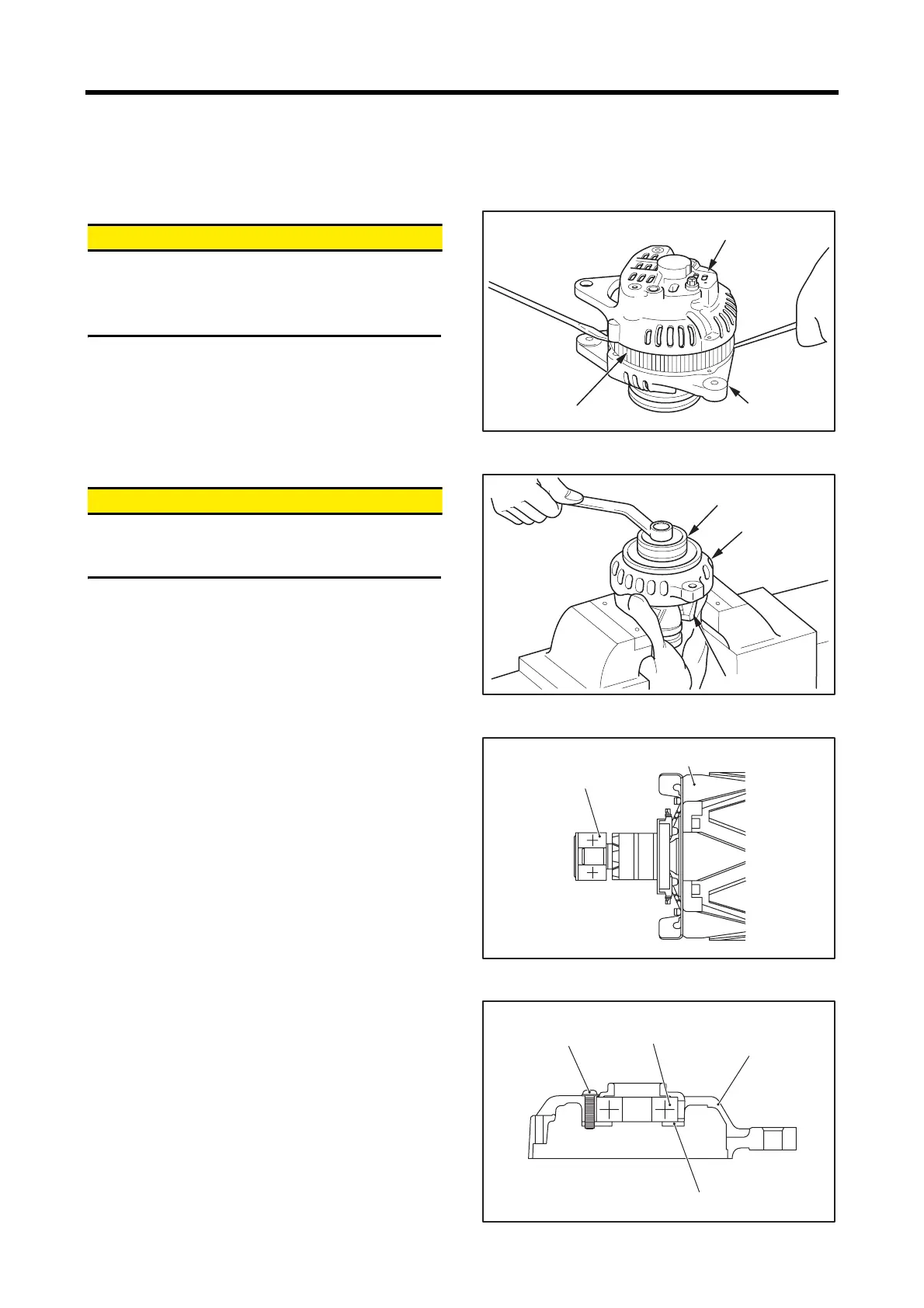

2.10.1 Separating front bracket from stator
&$87,21
Do not disassemble the alternator unless the repair is
necessary.
Do not insert the screwdrivers too deep, as it can dam-
age the stator.
(1) Remove the through bolts.
(2) With two flat-head screwdrivers inserted between the
front bracket and stator, pry them apart.
Separating front bracket from stator
2.10.2 Removing pulley
&$87,21
When setting the rotor in a vise, be sure to hold the
base of the rotor claw. Do not hold the rotor claw, as it
causes damage to the claw.
(1) Apply a cloth to the rotor and set it in a vise.
(2) Remove the pulley nut and then pull out the pulley.
Removing pulley
2.10.3 Removing rear bearing
Remove the rear bearing from the rotor using a bearing
puller.
Removing rear bearing
2.10.4 Removing front bearing
Remove the screw, and then remove the bearing retainer and
front bearing from the front bracket.
Removing front bearing
Stator core
Rear bracket
Front bracket
Pulley
Front bracket
Rotor
Rear bearing
Rotor
Screw
Front bearing
Front
bracket
Bearing retainer
