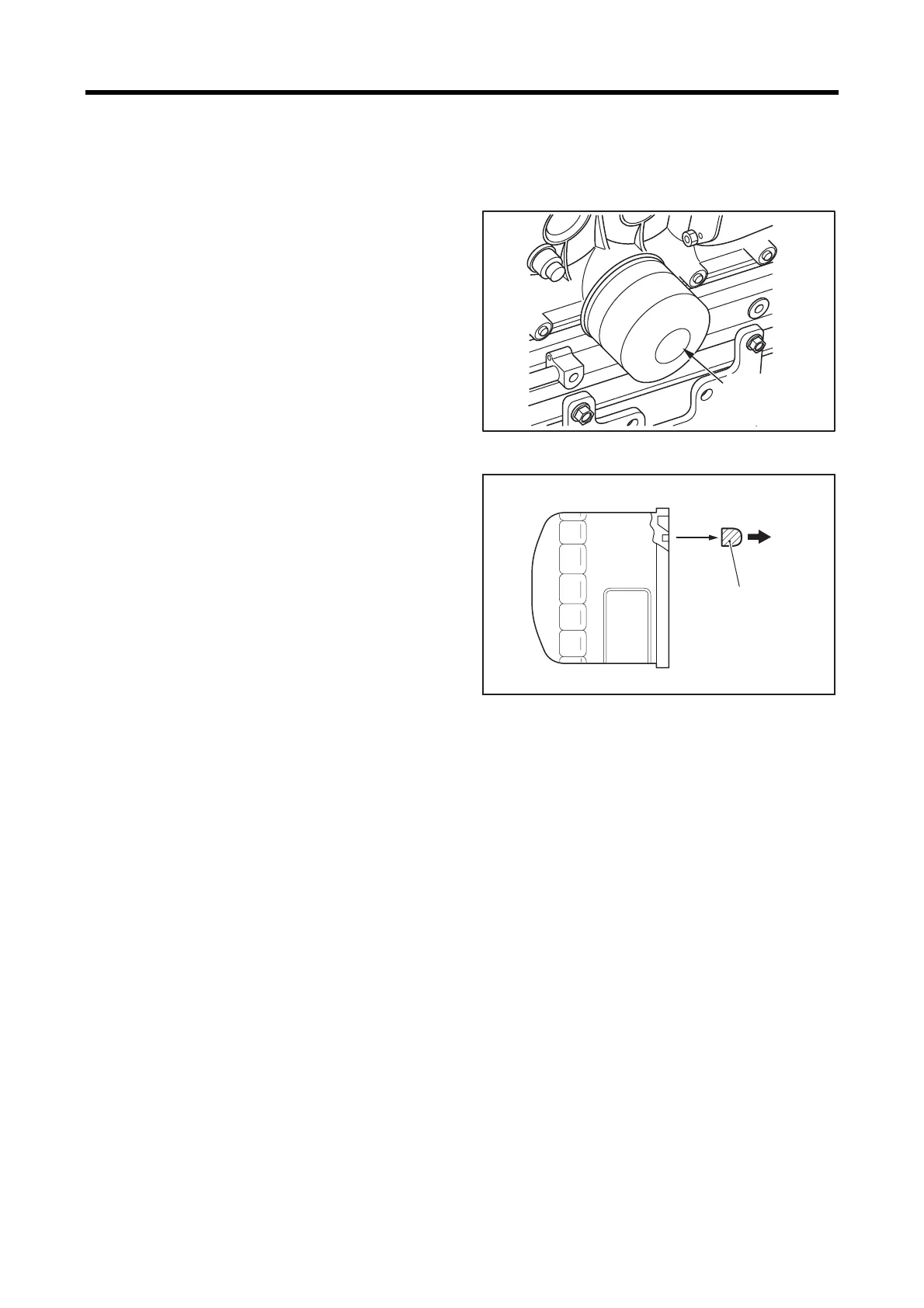

LUBRICATION SYSTEM
9-9
3.2.3
Inst
alling oil filter
(1)
Apply a light coating of engine oil to the filter gasket.
(2)
Screw the filter in by hand. When the filter gasket
contacts the mounting surface, screw the filter in
another turn.
Installing oil filter (1)
Installing oil filter (2)
T
ighten the oil
filter by hand.
Apply
engine oil.
