ELECTRICAL SYSTEM
12-18
2.4.9 Inspecting overrunning clutch
&$87,21
Do not clean the overrunning clutch in wash oil.
Make sure that, when attempting to turn the overrunning
clutch, it locks in one direction and rotates smoothly in the
opposite direction.

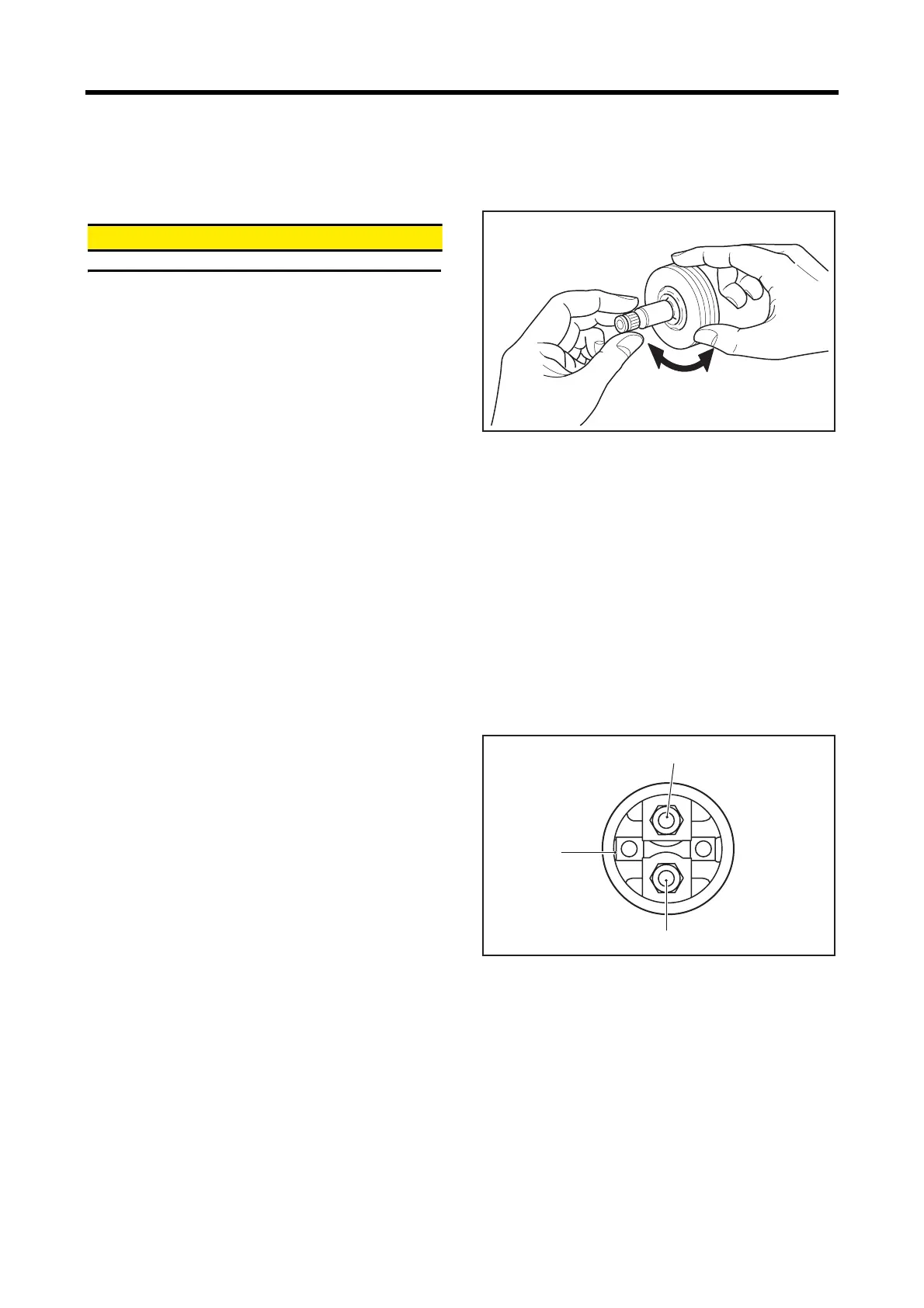

Inspecting overrunning clutch
2.4.10 Inspecting pinion
Check the pinion for wear and damage.
If faulty, replace the pinion with a new one.
2.4.11 Inspecting front bracket
The ball bearing should rotate smoothly without abnormal
noise. If defective, replace the whole front bracket.
2.4.12 Inspecting gears of starter
Check gears of the starter for wear or damage. If faulty,
replace the starter.
2.4.13 Inspecting continuity of magnetic switch
(between M terminal and case)
Check that there is continuity between M terminal and case.
If no continuity is observed, replace the magnetic switch
with a new one.
2.4.14 Inspecting insulation of magnetic switch
(between M terminal and B terminal)
Check that there is no continuity between M terminal and B
terminal. If continuity is observed, replace the magnetic
switch with a new one.
Inspecting magnetic switch
Terminal B
Terminal S
Terminal M
