3-102

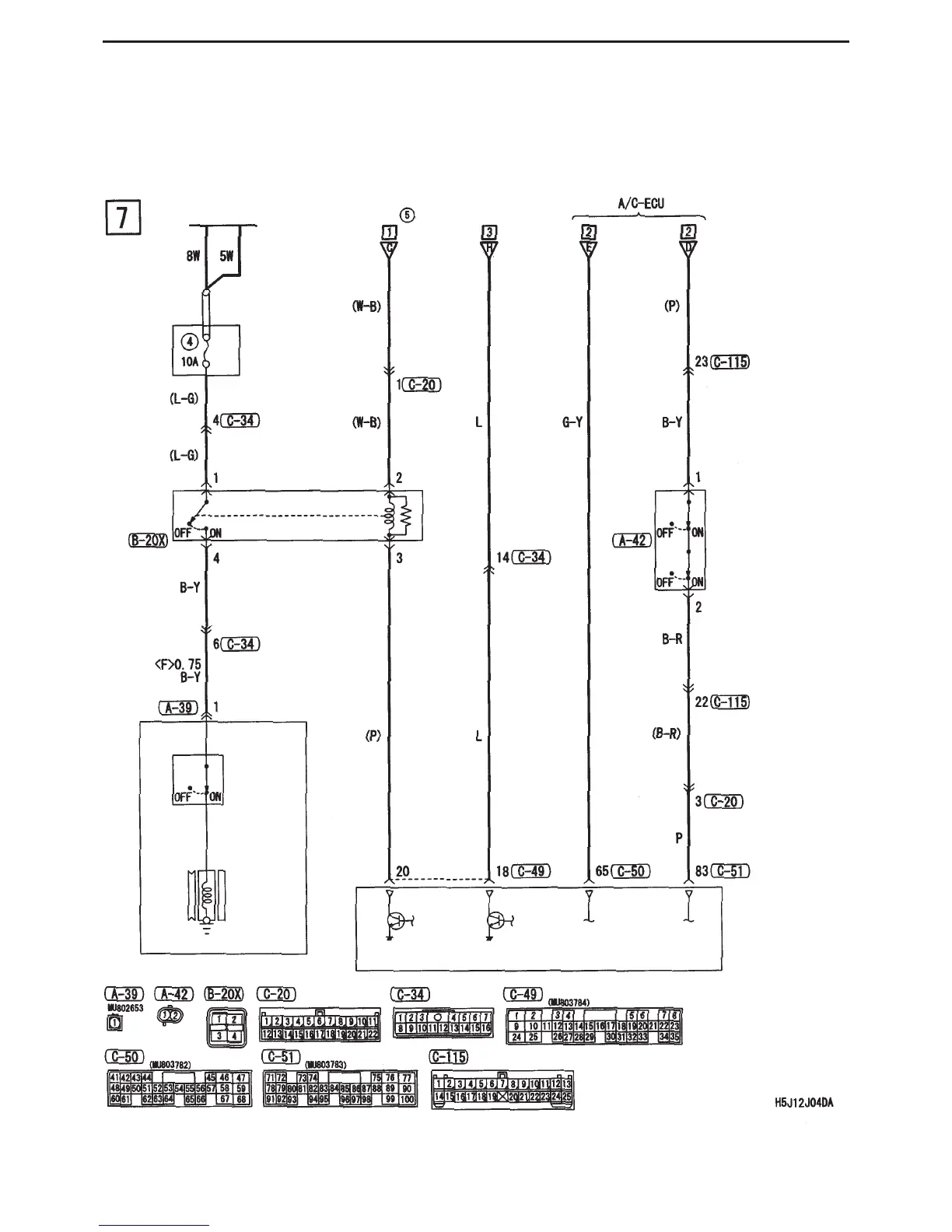

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Fully automatic air-conditioning (cont’d)
Battery
Dedicated
fuse
A/C
compressor
relay
A/C compressor
Coolant
temperature
switch
ON ! OFF
: 150 ºC
OFF ! ON
: 120 ºC
Magnetic
clutch
J/B
Generic
fuse
(
)
Radiator fan
controller
Dual
pressure
switch
Low pressure
ON ! OFF
: 196 kPa
OFF ! ON
: 221 kPa
High pressure
ON ! OFF
: 3138 kPa
OFF ! ON
: 2550 kPa
Engine ECU
