3-104

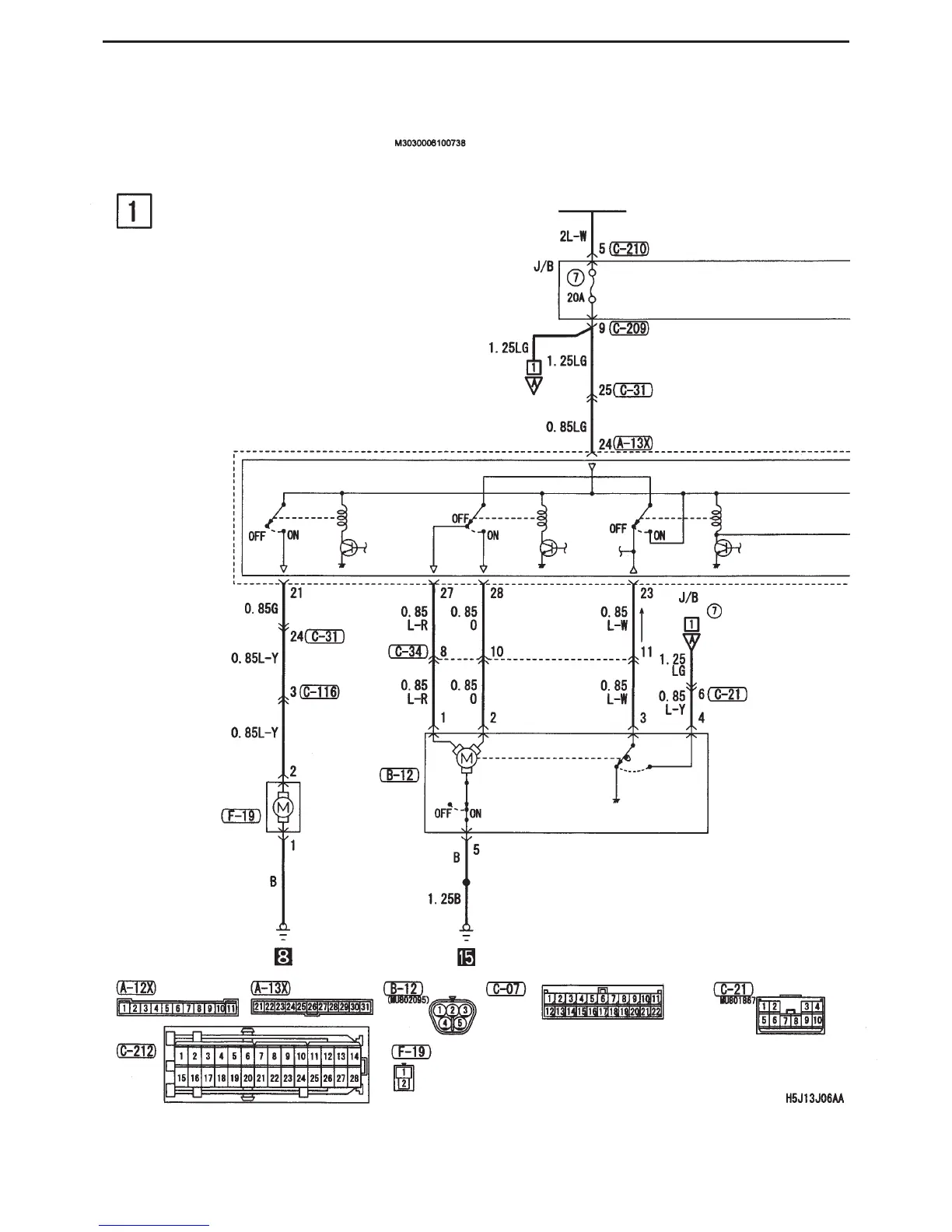

CIRCUIT DIAGRAMS - VISION / SAFETY
VISION / SAFETY
Windscreen washer / wiper
Front
ECU
Windscreen
washer motor
Windscreen
washer /
wiper relay
(
(
(
)
)
)
Windscreen
wiper motor
Ignition switch (ACC)
Wiper
speed
switching
relay
Wiper auto
stop relay
Generic
fuse
Circuit
breaker
