3-157

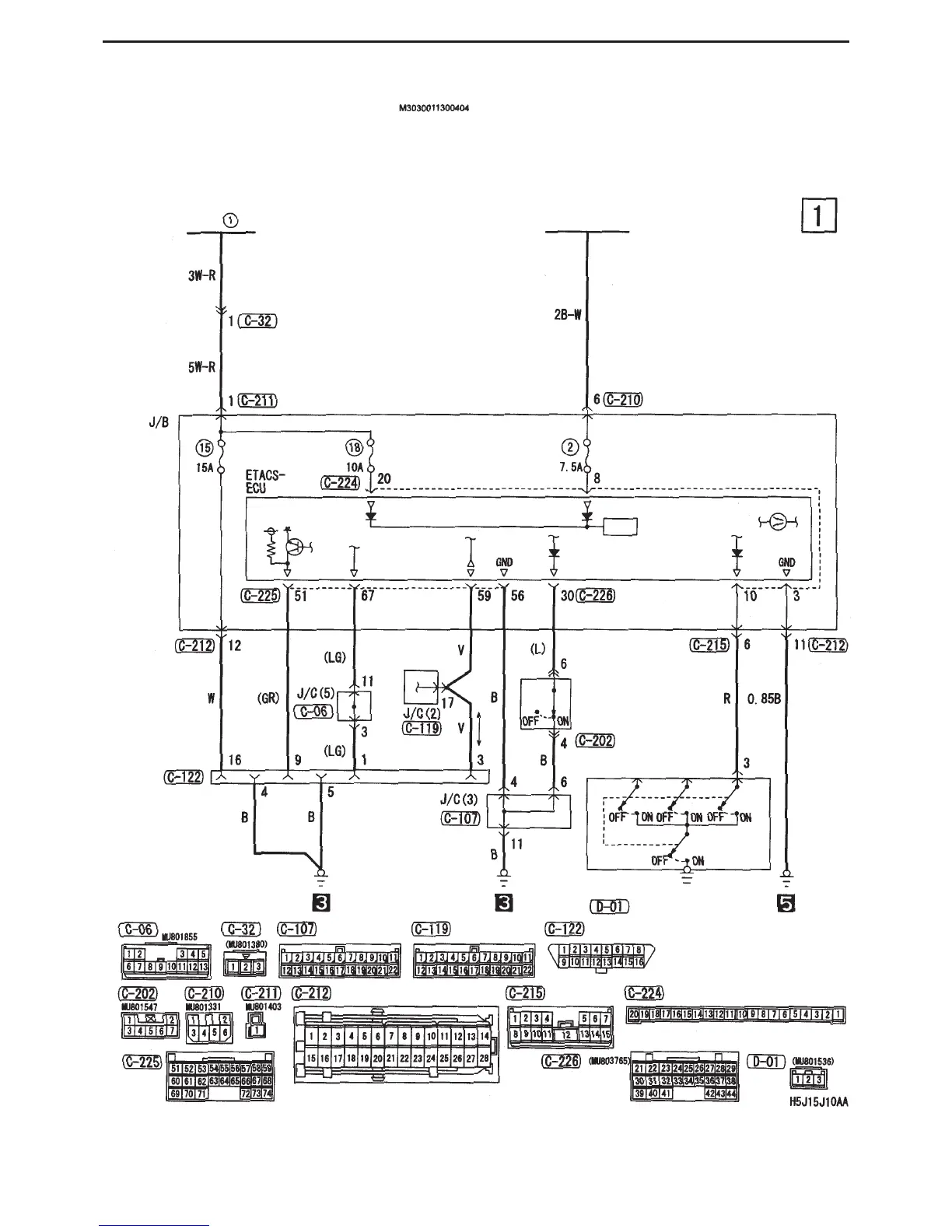

CIRCUIT DIAGRAMS - EQUIPMENT
Ignition key reminder buzzer
Fusible
link
Ignition switch (IG1)
Diagnosis
connector
Buzzer
Key reminder
switch (ON if
key forgotten)
Door switch
(front : RH)
Front side
J/B side connector
