3-162

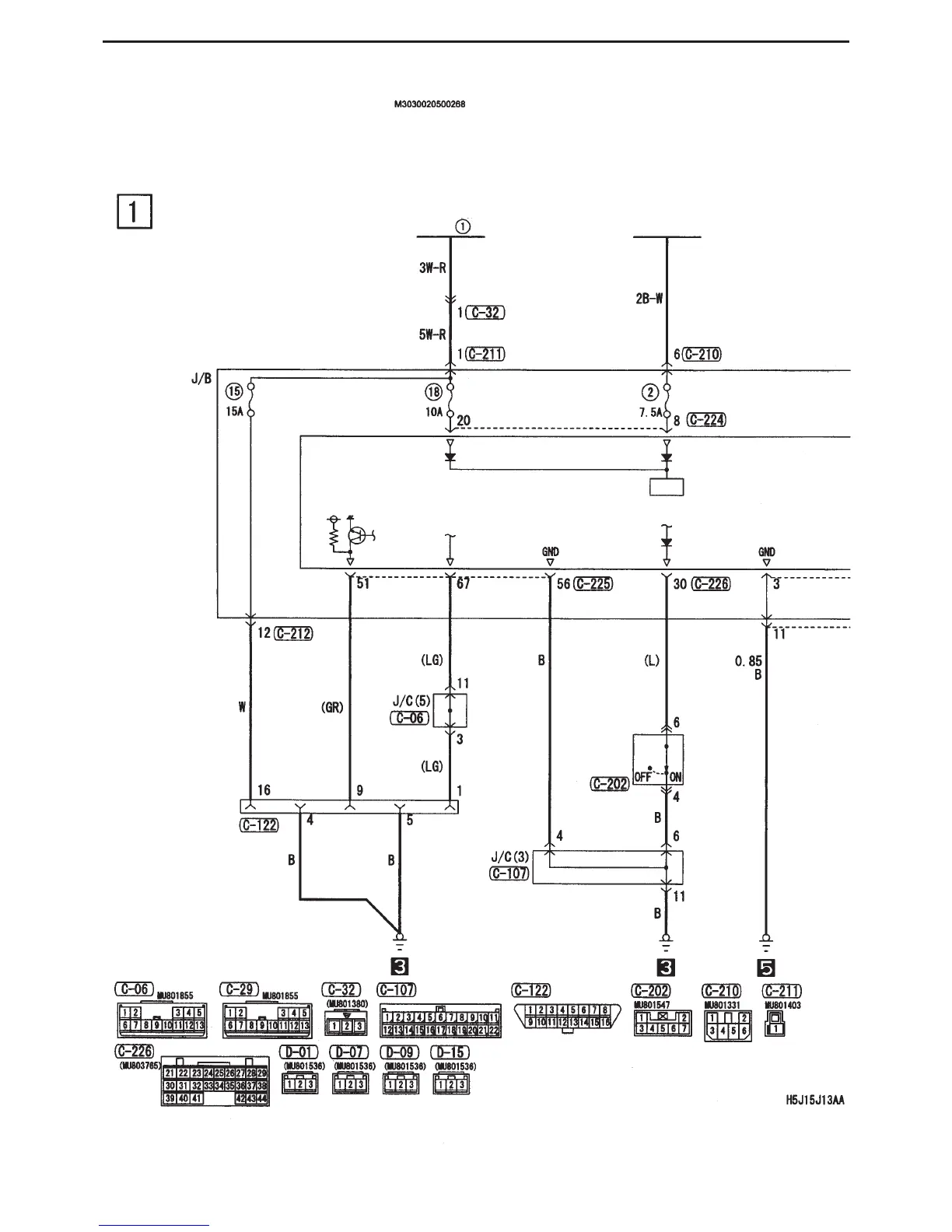

CIRCUIT DIAGRAMS - EQUIPMENT
Security Alarm
Diagnosis
connector
Fusible
link
Ignition switch (IG1)
Power
supply
Key reminder
switch (ON if
key forgotten)
Front side
