3-90

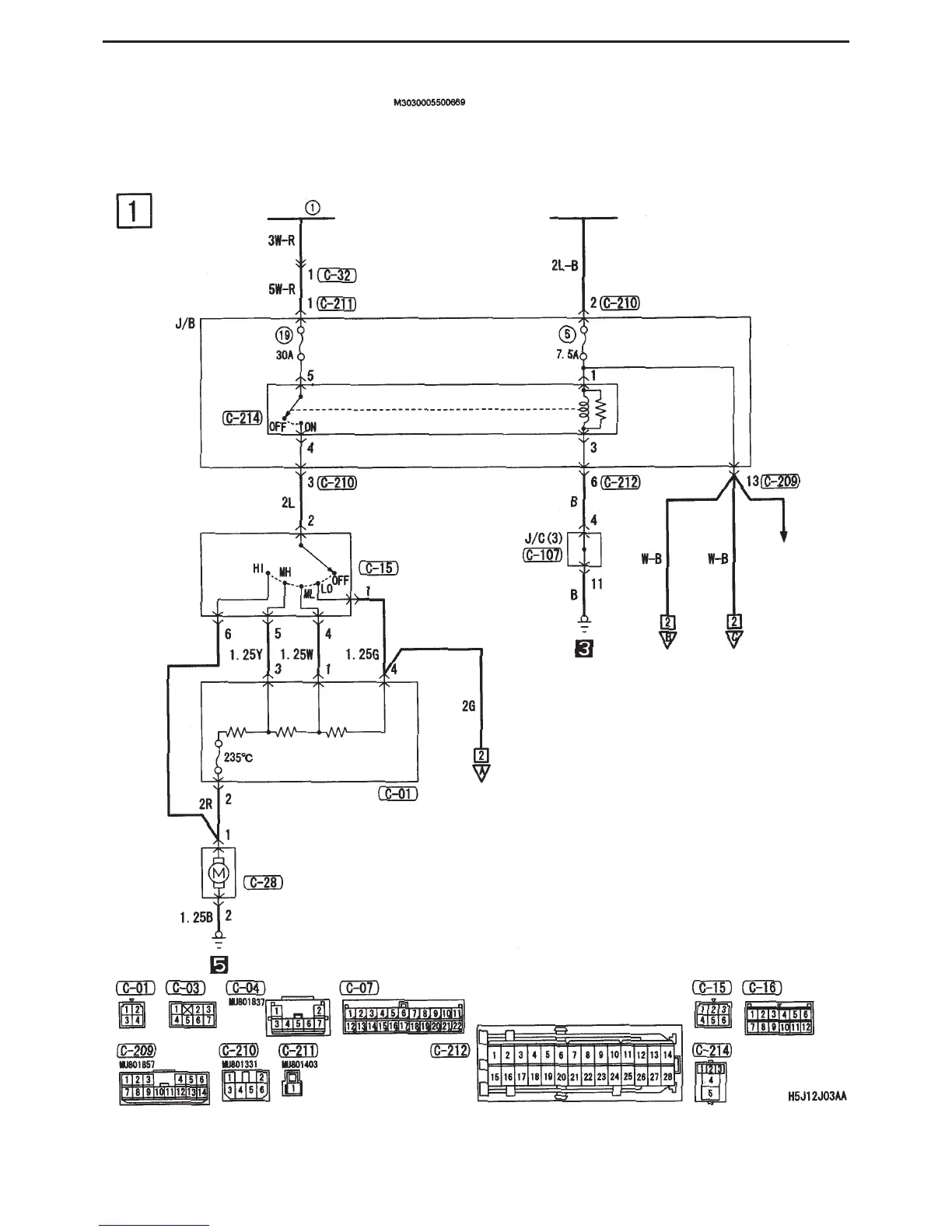

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Manual Air-Conditioning
Fusible link
Ignition switch (IG2)
Blower
relay
Blower switch
Intercooler
water spray
Blower motor
Register
