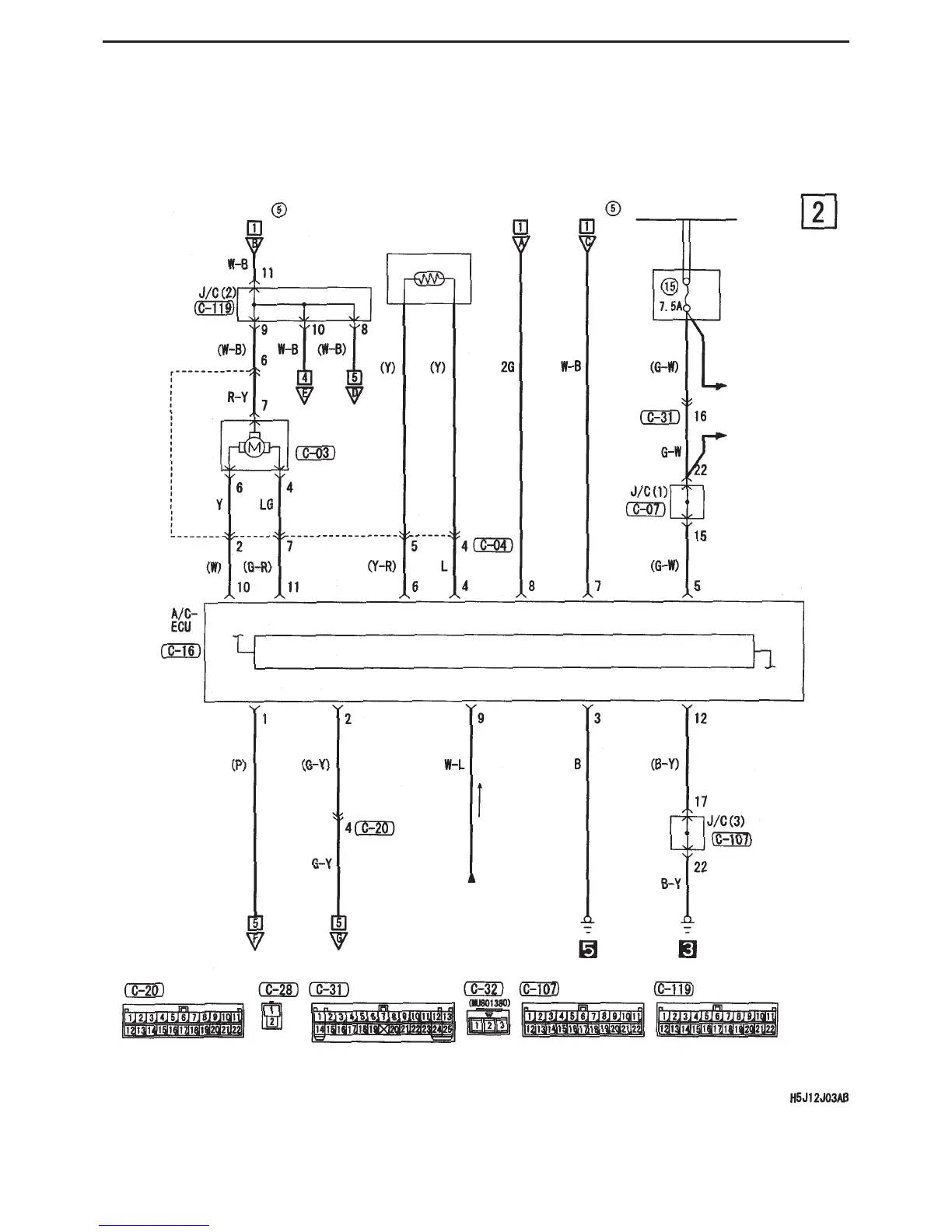

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Air thermo sensor
Register
Front ECU (tail light relay)
Dedicated
fuse
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
Internal / External
air switching damper
motor
Demister
A/C switch, internal/external air damper motor, ILL
Generic fuse
Generic fuse
(
(
)
)
J/B
J/B
