3-60

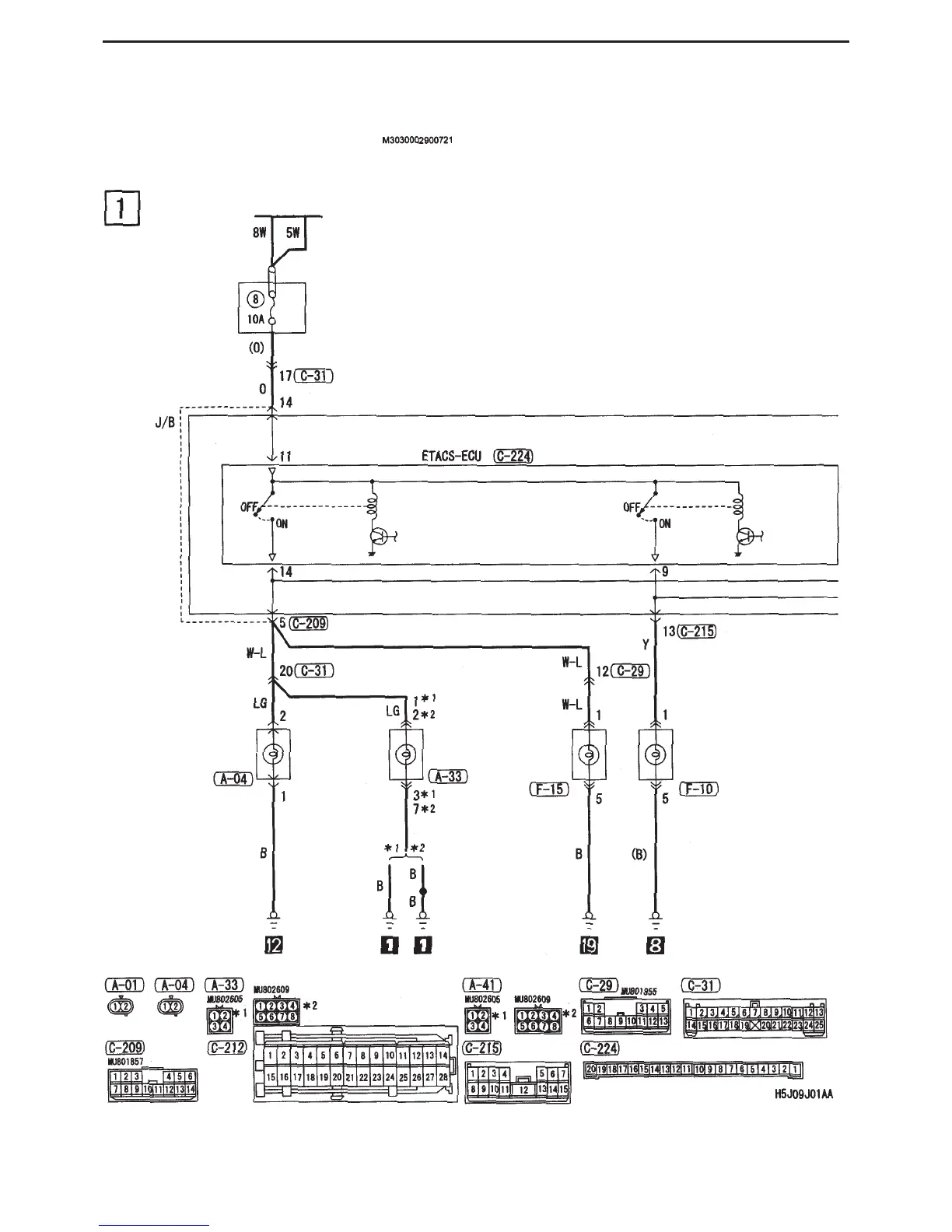

CIRCUIT DIAGRAMS - SIGNALS
Turn signal lights, hazard lights
SIGNALS
Battery
Dedicated
fuse
Turn signal light
relay : LH
Turn signal
light relay : RH
Side turn
signal
light (LH)
Headlight
ASSY
(turn : LH)
Rear
combination
light
(turn : LH)
Rear
combination
light
(turn : RH)
Note :
*1: except discharge type
headlights
*2: discharge type
headlights
J/B side connector
(
(
)
)
