3-80

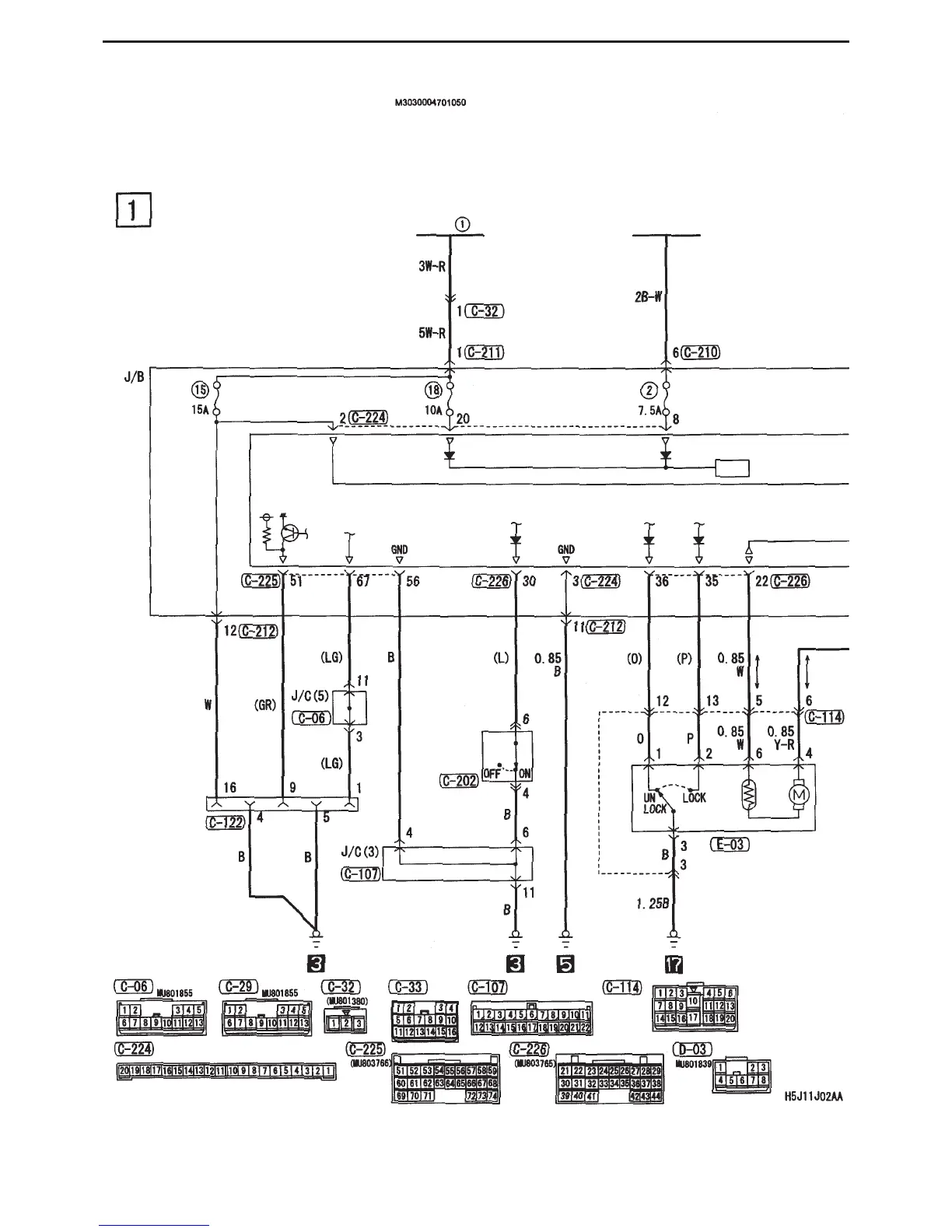

CIRCUIT DIAGRAMS - DOOR OPENING / CLOSING CONTROL
Central door locking (vehicle with keyless entry)
Fusible link
Ignition switch (IG1)
Power supply
Diagnosis
connector
Key reminder
switch
(ON when
key forgotten)
J/B side connector
Door lock
actuator
(front : RH)
