3-79

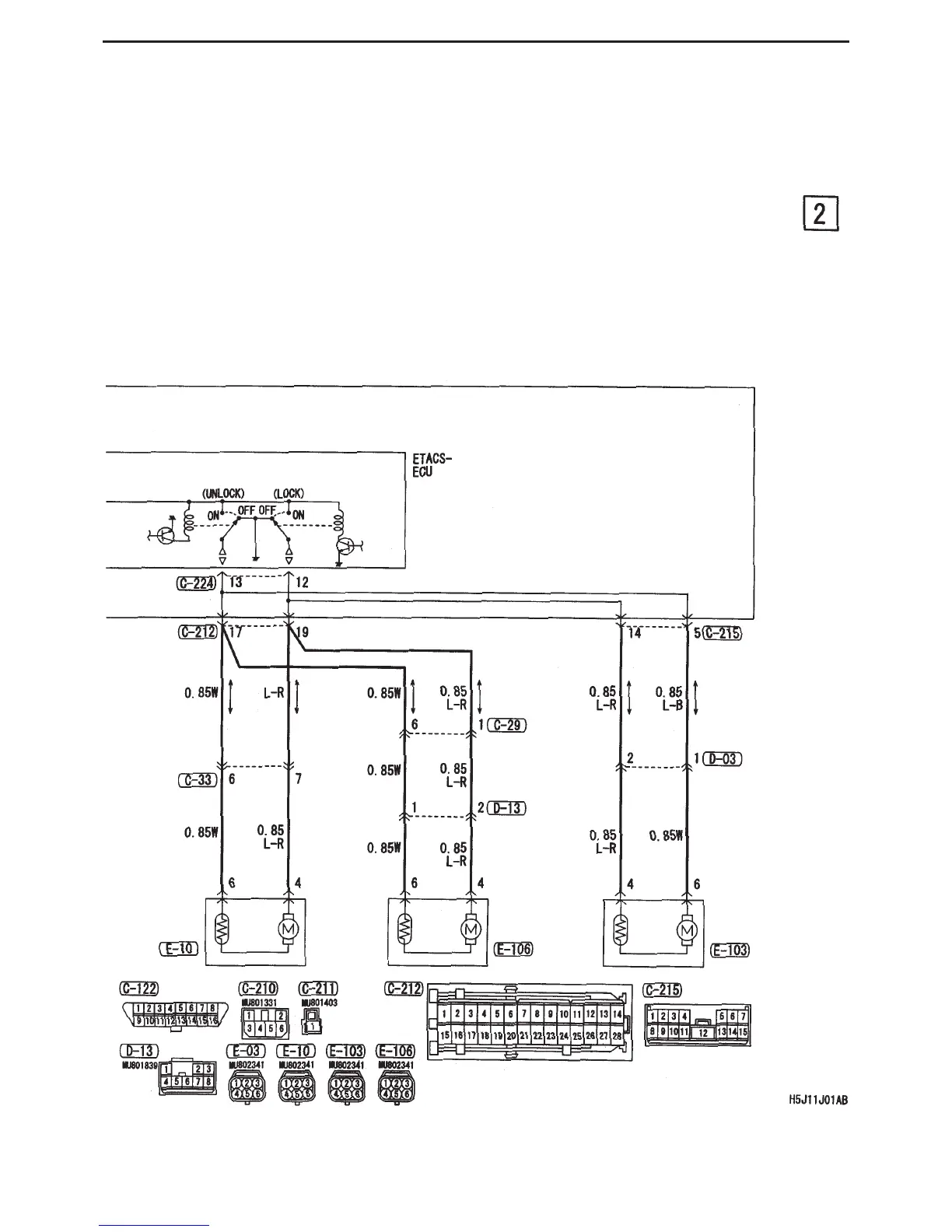

CIRCUIT DIAGRAMS - DOOR OPENING / CLOSING CONTROL
Door lock
actuator
(front : LH)
Door lock
actuator
(rear : RH)
Front side
Door lock
actuator
(rear : LH)
