3-130

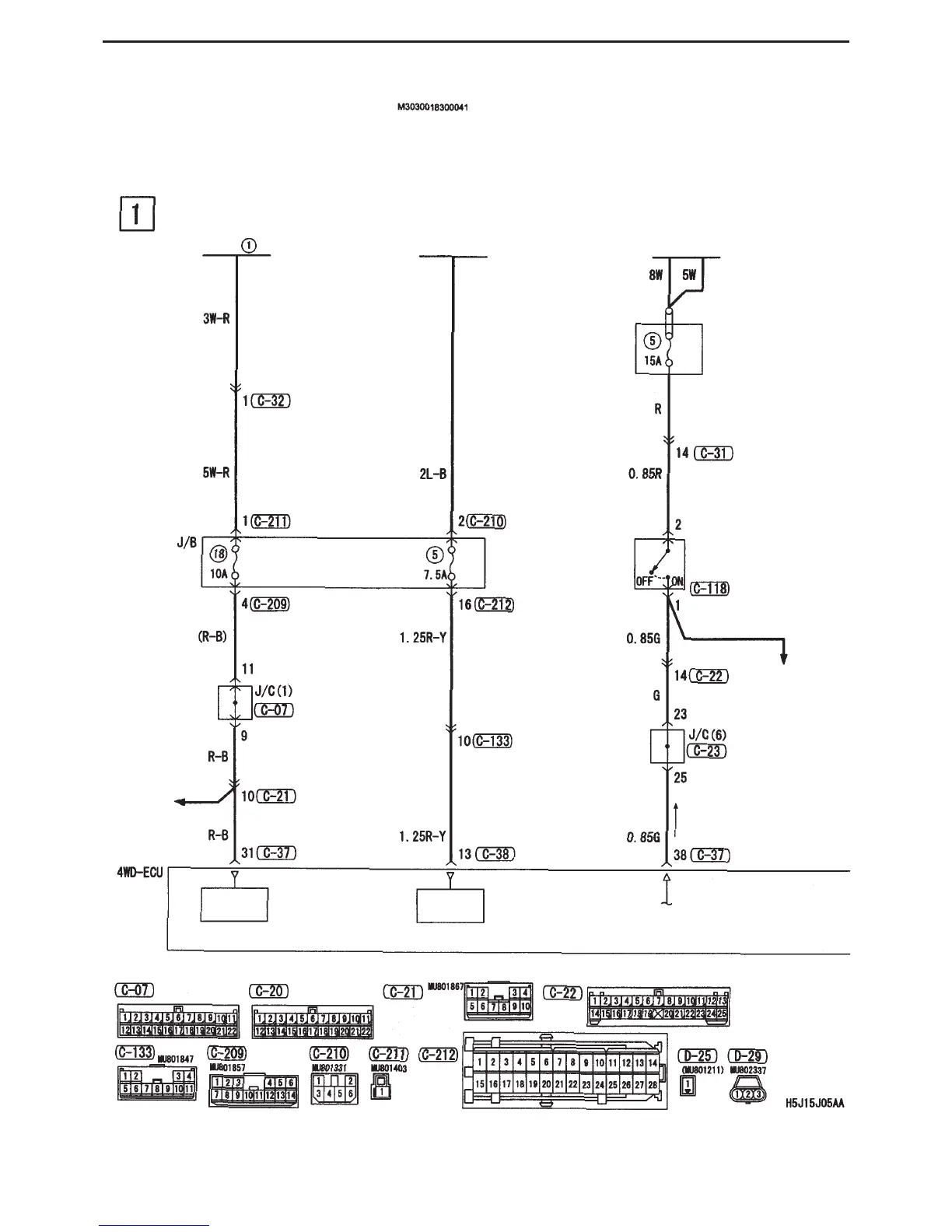

CIRCUIT DIAGRAMS - EQUIPMENT
ACD (vehicle without AYC)
Engine
control
Back-up
power supply
Fusible
link
Ignition switch (IG2) Battery
Dedicated
fuse
Power
supply
Stop light
switch
Stop light
