GENERAL INFORMATION - HOW TO READ THE WIRING DIAGRAMS
0-6

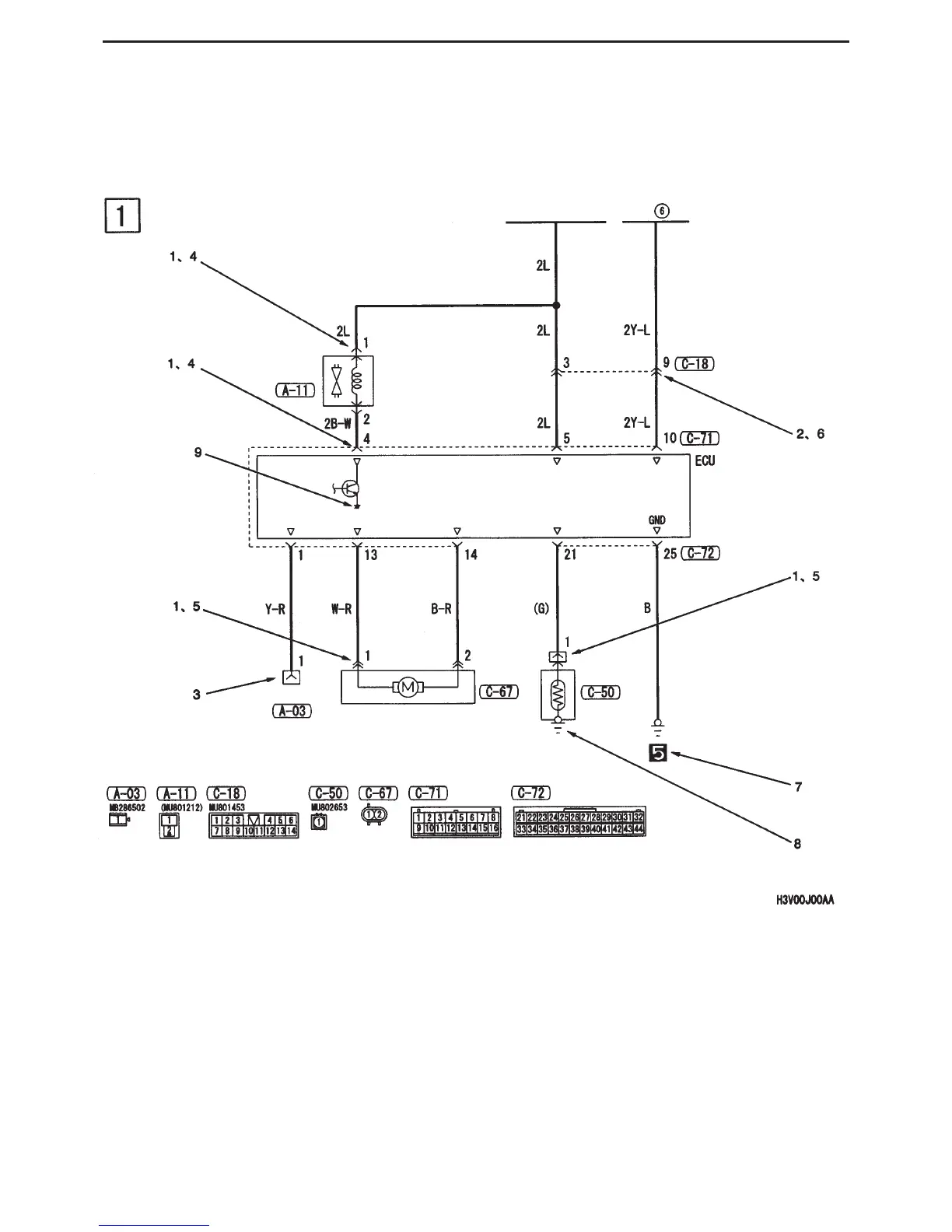

Connector / Earth Markings
The circuits contain a large number of connectors and earths, and the following system has been adopted for depicting
connectors and earths in the circuit diagrams.
Ignition switch
Fusible link
Solenoid
valve
Inspection connector
Motor
Sensor
