3-156

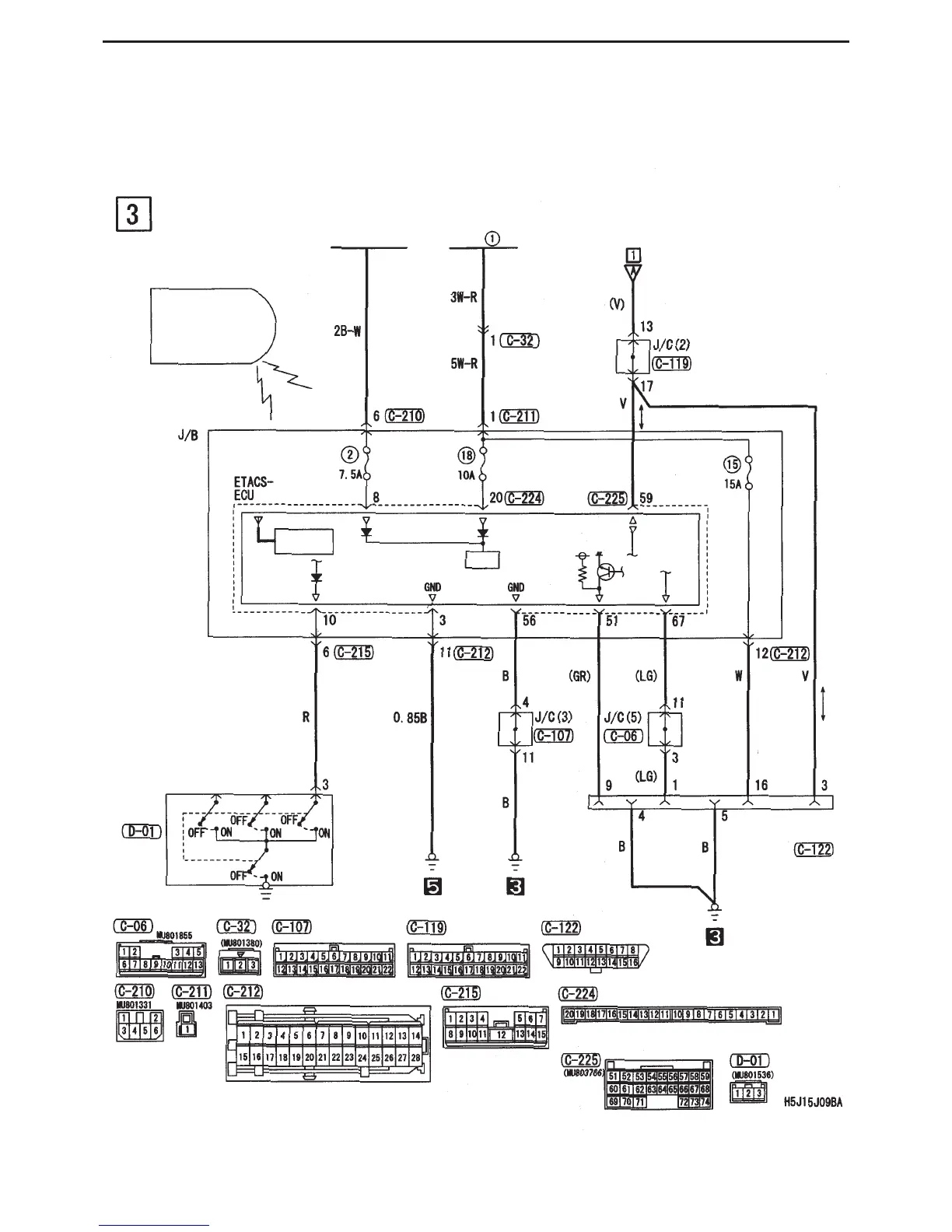

CIRCUIT DIAGRAMS - EQUIPMENT
Sunroof (cont’d)
Keyless entry
transmitter
Door switch
(front : RH)
Ignition switch (IG1)
Fusible
link
Sunroof
motor ASSY
Keyless entry
receiver
Diagnosis
connector
J/B side connector
Power
supply
