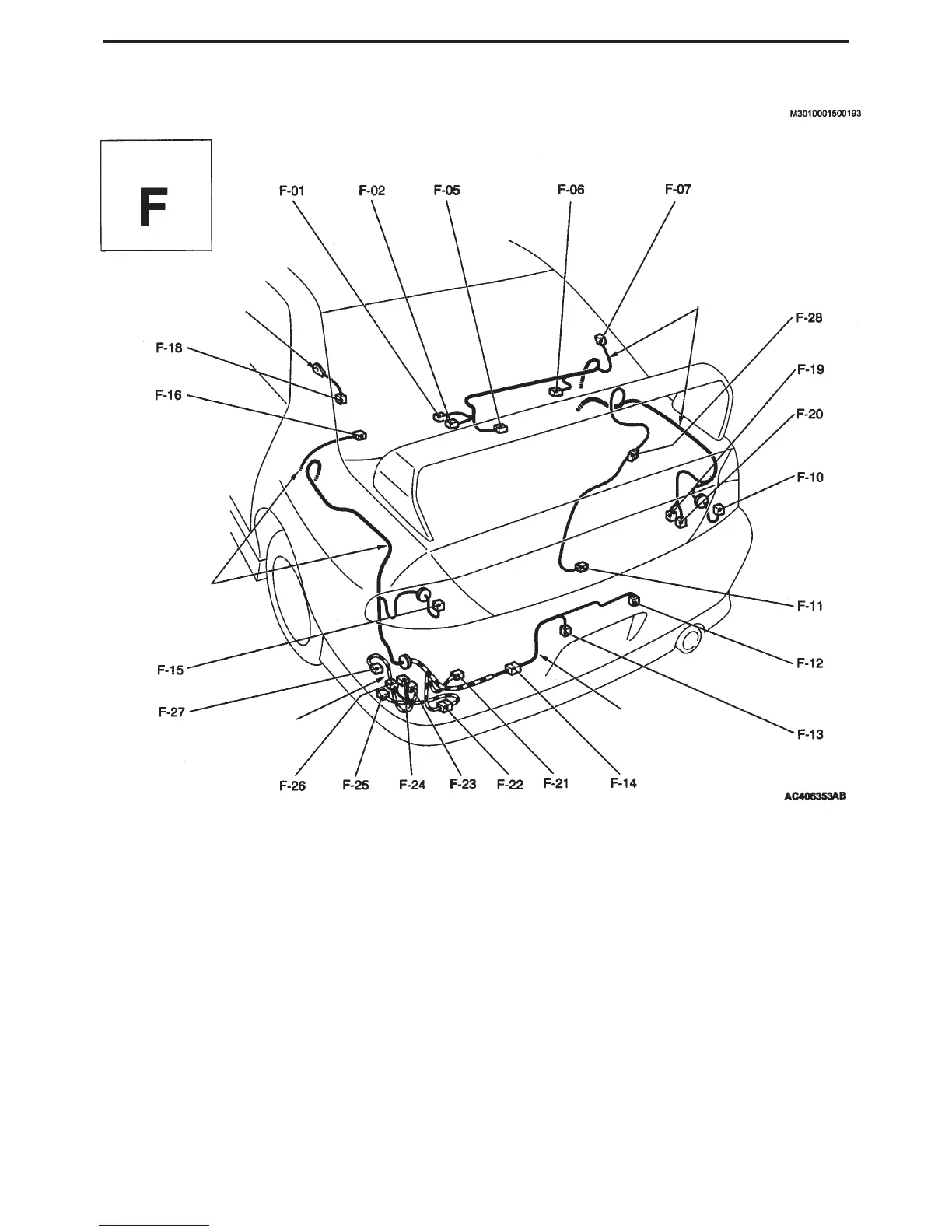

LAYOUT DIAGRAMS - BOOT COMPARTMENT
1-20
F-01 (2) Boot compartment light
F-02 (2-black) High-mount stop light
F-05 (4) Rear wiper motor
F-06 (2) Rear speaker (RH)
F-07 (1) Demister (+)
F-10 (6-black) Rear combination light (RH)
F-11 (1) Boot compartment light switch
F-12 (2-grey) Licence plate light (RH)
F-13 (2-grey) Licence plate light (LH)
F-14 (2-grey) Floor harness (LH) / Bumper harness
junction
F-15 (6-black) Rear combination lamp (LH)
F-16 (2) Rear speaker (LH)
F-18 (1-black) Demister (-)
F-19 (2) Windscreen washer motor
F-20 (2-green) Rear washer motor
F-21 (2-black) Electric pump
F-22 (8-grey) Floor harness (LH) / 4WD harness
junction
F-23 (2-black) Directional valve (left) (vehicle with AYC)
F-24 (2-black) Directional valve (right) (vehicle with AYC)
F-25 (3-black) Proportional valve (for ACD)
F-26 (3-black) Proportional valve (for AYC (vehicle with
AYC)
F-27 (3-black) Pressure sensor
F-28 (2) Dummy connector
BOOT COMPARTMENT
Connector Symbol
Bumper harness
Demister earth
Floor harness (LH)
4WD harness
Floor harness (RH)
To Next Page
