3-120

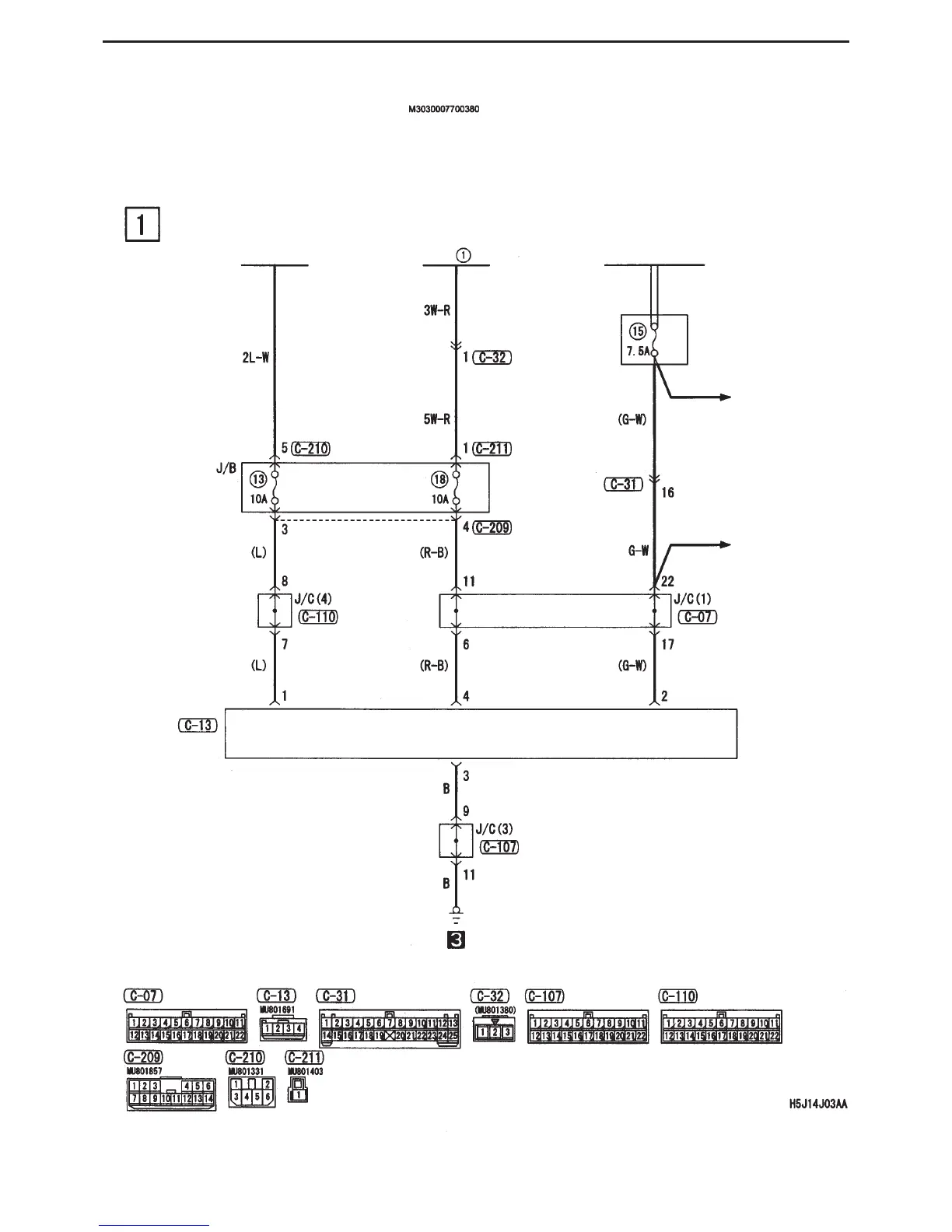

CIRCUIT DIAGRAMS - ACCESSORIES
Clock
Ignition switch (ACC)
Fusible
link
Front ECU
(tail light relay)
Dedicated
fuse
Clock
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
