LAYOUT DIAGRAMS - INSTRUMENT PANEL
1-10
C-01 (4) Register (vehicle with heater, manual
A/C)
C-02 (2-black) Front passenger airbag module (squib)
C-03 (7) Internal / External air switching damper
motor
C-04 (7) Instrument panel harness / A/C harness
junction (vehicle with heater, manual A/C)
(13) Instrument panel harness / A/C harness
junction (vehicle with fully automatic A/C)
C-05 (2) Air thermo sensor (vehicle with fully
automatic A/C)
C-06 (13) J/C (5)
C-07 (22-grey) J/C (5)
C-08 (6) Motor & potentiometer for air mix door
(vehicle with fully automatic A/C)
C-09 (2) Heater water temperature sensor (vehicle
with fully automatic A/C)
C-10 (6) Motor and potentiometer for blower
switching damper (vehicle with fully
automatic A/C)
C-13 (4) Clock
C-14 (4) Hazard switch
C-15 (6) Blower switch (vehicle with heater ,
manual A/C)
C-16 (12-black) Heater control unit (vehicle with heater) or
A/C ECU (vehicle with manual A/C)
C-17 (20-black) A/C ECU (vehicle with fully automatic
A/C)
C-18 (16-black) A/C ECU (vehicle with fully automatic
A/C)
C-20 (22-blue) Instrument panel harness / Control
harness junction
C-21 (10-grey) Instruction panel harness / Control
harness junction

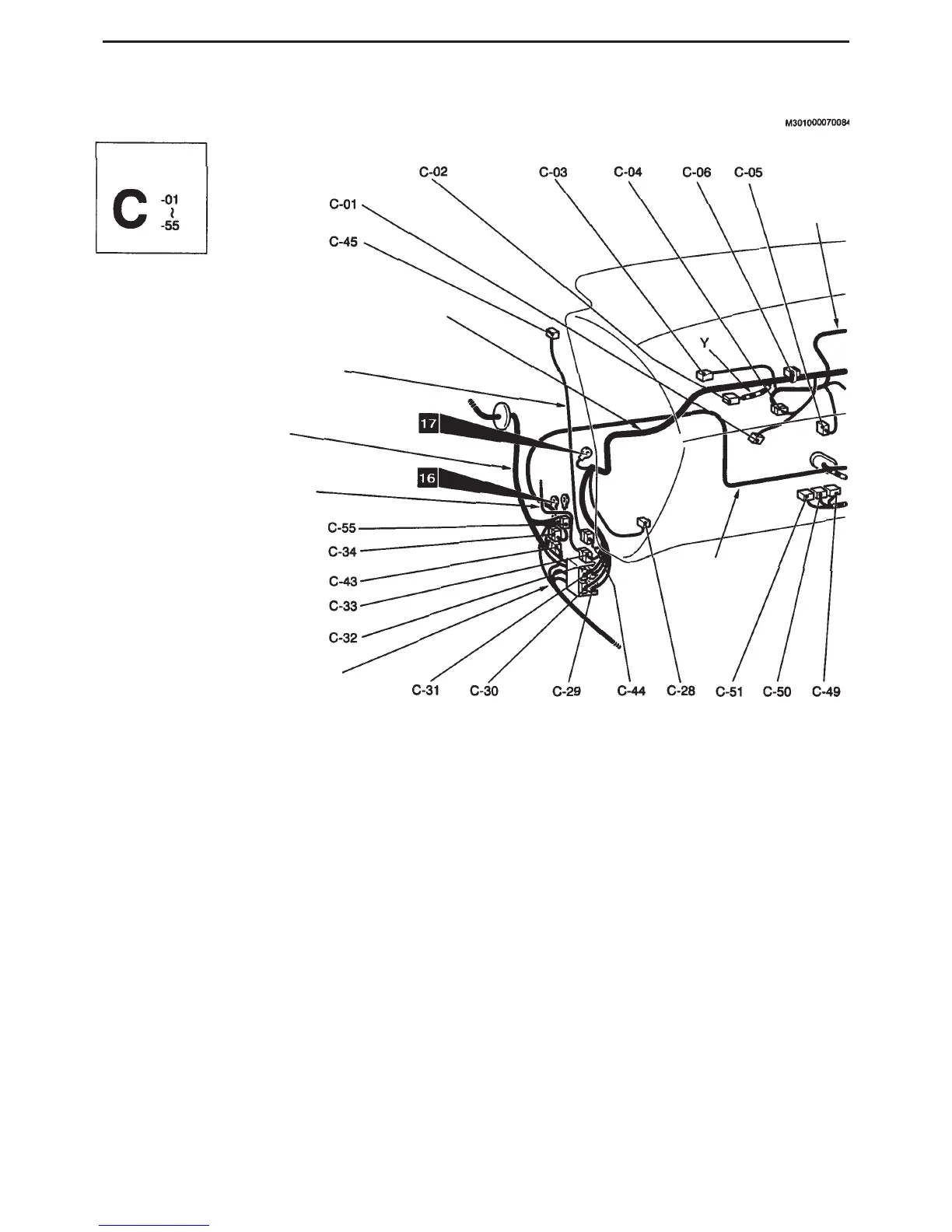

INSTRUMENT PANEL
Connector Symbol
A/C harness
Control harness
Floor harness (LH)
Front door harness (LH)
Front harness (LH)
Tweeter sub-harness
Instrument panel harness
Front passenger side
To Next Page
